Brand: Infitek | Category: Scientific & Laboratory Equipment

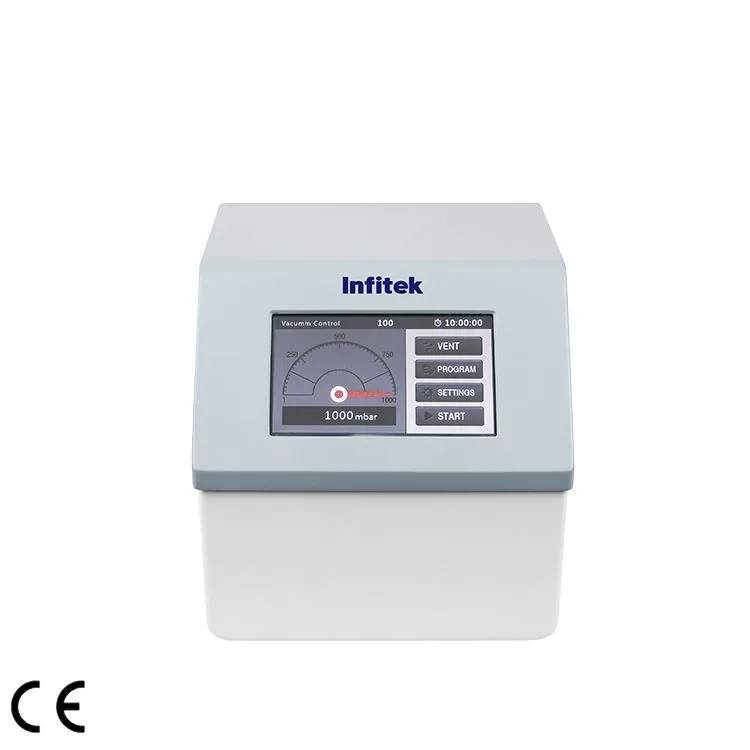

Infitek Vacuum Controller, VACC100 is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published details include Vacuum measurement range: 1-1000mbar. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Specifications | VACC100 |
|---|---|
| Vacuum setting range | 1-1000mbar |
| Vacuum measurement range | 1-1000mbar |
| Control operation mode | Single-point control mode, Programmed control mode |
| Control program | Can store up to 5 programs, each containing 5-step control (capable to set the degree of vacuum and time) |
| Setting method | Touch screen setting |
| Display | 5” TFT |
| Sensor overload pressure | 1,500 mbar |
| Connector diameter | 8mm |
| Materials in contact with vapor | PTFE, PP, silicone and ceramics |
| Power | 600 W |
| Compatible conditions with vacuum pump | power of 50Hz vacuum pump ≤400W power of 60Hz vacuum pump ≤500W |
| Overall dimensions (W×D×H) | 189mm×207mm×193mm |
| Weight | 4.0kg |
| Power supply | 110V-240V,50Hz/60Hz |
| Operating environment | 10℃～40℃，≤80%RH |
Manufacturer catalogue checked 2026-09-28.
