Brand: Infitek | Category: Scientific & Laboratory Equipment

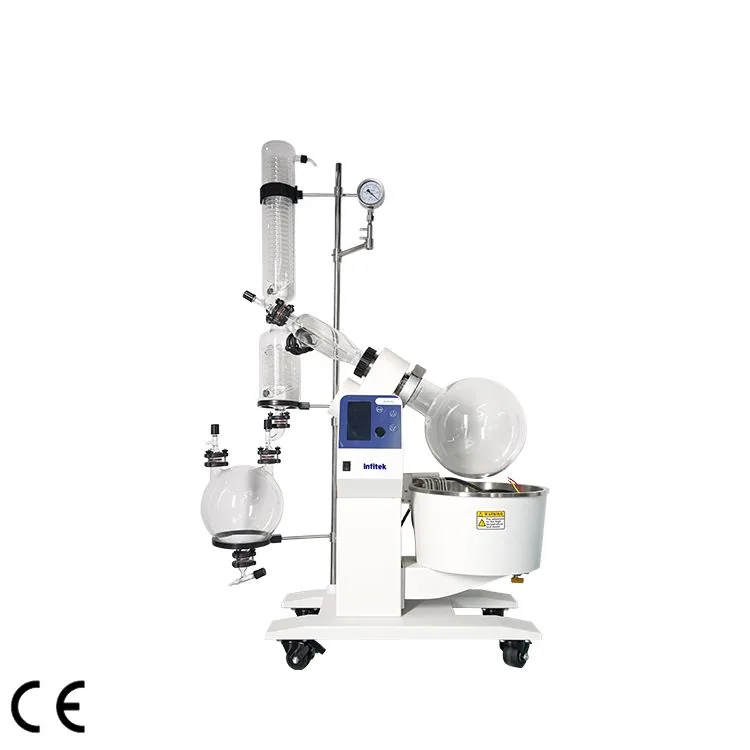

Infitek Rotary Evaporator, Industrial Sacle, REV200-P is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: REV200-P. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | REV200-P | REV200-P |
|---|---|---|
| Performance | Temperature range | Room temp. -180℃ (both water and oil) |
| Performance | Control accuracy | Water: ±1℃ Oil: ±3℃ |
| Performance | Rotation speed | 10rpm~150rpm |
| Performance | Evaporation capacity | Max. 4.0L/h (water vapor volume) |
| Performance | Ultimate vacuum | < 2.6 hPa |
| function | Temperature control method | Micro processer PID control |
| function | Display | LCD (temperature/speed/clockwise and Anti-clockwise/time) |
| function | Stroke displacement | Automatic 180mm |
| function | Safely features | Motor over-current protection, Residual Current Device, lifting overload protection, Boil-dry protection, over-temperature protection |
| constitute | Sample flask | Round flask 20L |
| constitute | Receiving flask | Round flask 10L with drain value |
| constitute | Condenser | Two-section vertical triple serpentine condenser, cooling surface 1.2m^(2) |
| specifications | Heating bath size | Φ450mm×240mm |
| specifications | Takeover caliber | Cooling/suction nozzle outer diameter 16mm,; vacuum pump nozzle outer diameter 16mm |
| Dimension (D×W×H) | Dimension (D×W×H) | 1160mm×600mm×1860mm |
| Power supply | Power supply | 220V/4600W/50Hz/60Hz |
Manufacturer catalogue checked 2026-09-28.
