Brand: Infitek | Category: Scientific & Laboratory Equipment

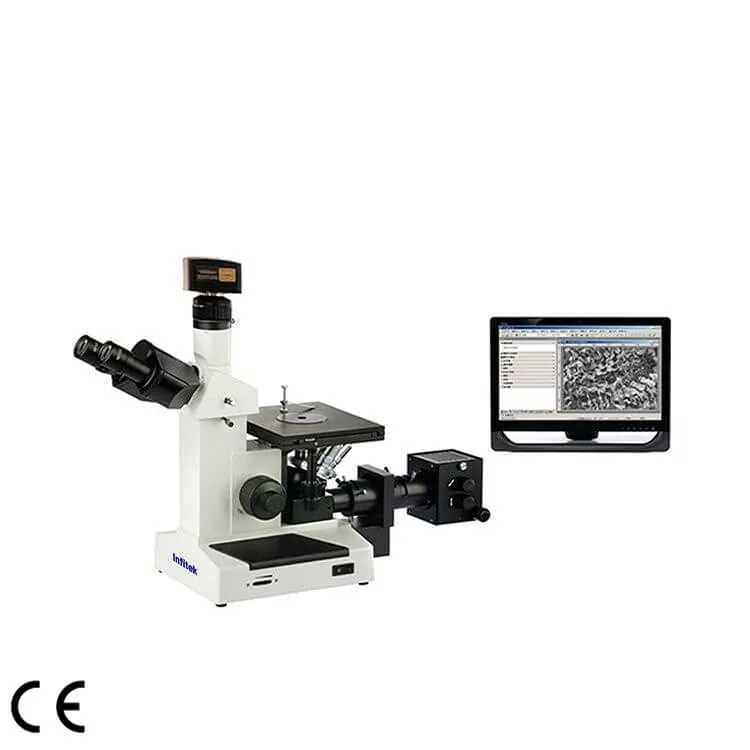

Infitek Metallurgical Microscope, MSC-M4XC is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: MSC-M4XC. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MSC-M4XC | ||
|---|---|---|---|
| Optics | Finite Distance Optical System | ||
| Observation Tubes | Tilting binocular, interpupillary 55-75mm | ||
| Viewing Head | Seidentopf head, inclined at 30° | ||
| Optical Coating | Transmittance ≥ 95% | ||
| Eyepiece | WF10X/18mm, with scale of cross hair | ||
| Objective | PL L10X/0.25 LWD 8.9mm | ||
| Objective | PL L20X/0.40 LWD 3.75mm | ||
| Objective | PL L40X/0.60 LWD 2.69mm | ||
| Objective | SPL 100X/0.90 LWD 0.44mm | ||
| Objective | *PL L50X/0.70 LWD 2.02mm | ||
| Objective | *PL L60X/0.75 LWD 1.34mm | ||
| Objective | *PL L80X/0.80 LWD 0.96mm | ||
| Objective | *PL L100X/0.85 LWD 0.4mm | ||
| Nosepiece | Backward quadruple /Backward *Quintuple | ||
| Stage | Double layer mechanical stage 180×150mm, moving range 15mm×15mm | ||
| Focusing | Coaxial coarse and fine adjustment, fine division 2um | ||
| *Software | *Grain size analysis software | ||
| Illumination System | 6V/20W halogen light, brightness adjustable | ||
| Illumination System | Polarizer and analyzer | ||
| Illumination System | Green, blue, yellow filter | ||
| Electricity | 100-240V AC,50/60Hz | ||
| Package Dimension (W*D*H) (mm) | 400×300×450 | ||
| Gross Weight (Kg) | 11 | ||
| *Optional | Photo/Video attachment; Micrometer scale 0.01mm; Fluorescent attachment | ||
| *Optional | Photo/Video attachment; Micrometer scale 0.01mm; Fluorescent attachment | *Optional Configuration | *Optional Configuration |
Manufacturer catalogue checked 2026-09-28.
