Brand: Infitek | Category: Scientific & Laboratory Equipment

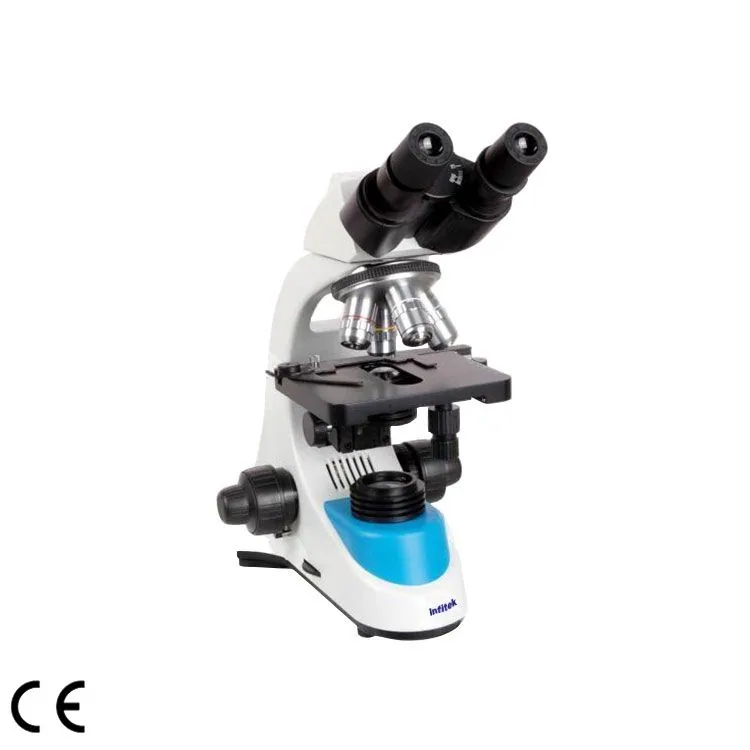

Infitek Biological Microscope, MSC-B208(Siedentopf) is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: MSC-B208(Siedentopf). Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MSC-B208(Siedentopf) |
|---|---|
| Optics | Finite Distance Optical System / *Infinity Optical System |
| Observation Tube | Tilting binocular,interpupillary 55-75mm |
| Viewing Head | Siedentopf head,inclined at 30° |
| Optical Coating | Transmittance ≥ 95% |
| Eyepieces | Wide field eyepiece WF10×18mm |
| Eyepieces | *Wide field eyepiece WF10×20mm |
| Objective | Achromatic objective 4X, 10X, *20X,40X, 100X |
| Objective | *Plan achromatic objective: 4X, 10X, *20X, 40X, 100X |
| Objective | *Plan phase objective: Ph10X, 20X, 40X, 100X |
| Objective | *Infinite plan achromatic objective: 4X, 10X, *20X, 40X,100X |
| Nosepiece | Quadruple nosepiece / *Quintuple nosepiece |
| Stage | Double layers mechanical stage 140×135mm / 75×50mm (*Heating module) |
| Condenser | Abbe NA1.25 with iris diaphragm & filter |
| Focusing | Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 22mm |
| Illumination | 3W LED Illumination, brightness adjustable |
| Illumination | *6V 20W Halogen lamp, brightness adjustable |
| Electricity | 100-240V AC,50/60Hz |
| Package Dimension (W*D*H) (mm) | 370*260*490 |
| Gross Weight (Kg) | 6.5 |
| *Optional | Turret phase contrast kit, dark field attachment, 360° rotatable viewing head |
| *Optional | MSC-B208T: Microscope camera (Standard imaging software) / Win 10 Pad / Digital display |
| *Optional Configuration | *Optional Configuration |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
