Brand: Infitek | Category: Scientific & Laboratory Equipment

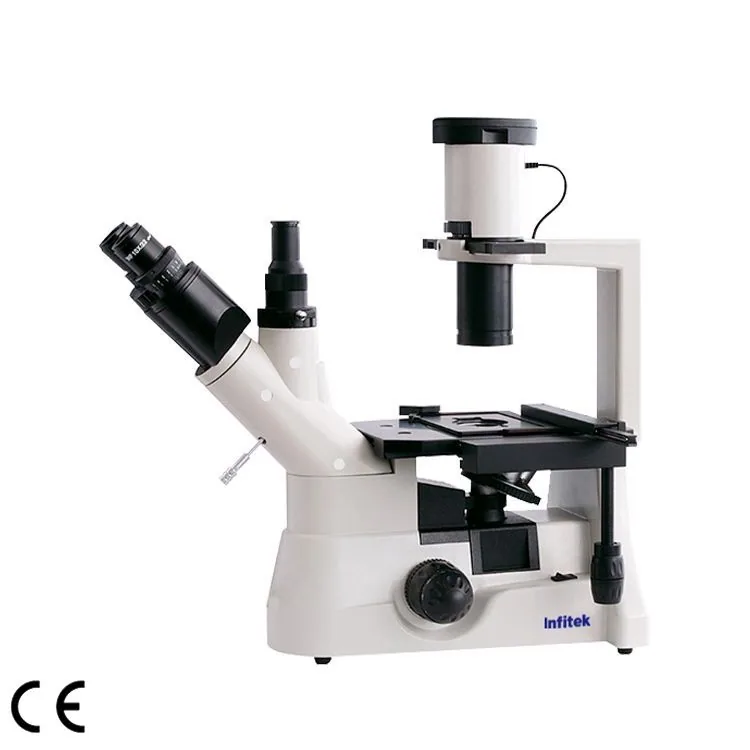

Infitek Inverted Microscope, MSC-IV403 is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: MSC-IV403. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MSC-IV403 |
|---|---|
| Optics | Finite Distance Optical System |
| Observation Tubes | Tilting trinocular, interpupillary 50-75mm |
| Viewing Head | Seidentopf head, inclined at 45° |
| Optical Coating | Transmittance ≥ 95% |
| Eyepiece | Wide field eyepiece WF10×20mm |
| Objective | LWD plan objective LWDPL4X\10X\20X\40X |
| Nosepiece | Quadruple nosepiece |
| Stage | Double layers mechanical stage, stage size: 242mm× 172mm, central; stage: Φ110mm, moving range: 75mm × 50mm |
| Condenser | N.A.0.3Abbe condenser W.D .75mm |
| Focusing | Coaxial coarse&fine focusing adjustment with rack and pinion mechanism; fine focusing scale value 0.002mm |
| Illumination | Halogen bulb12V/30W,adjustable brightness |
| Electricity | 100-240V AC,50/60Hz |
| Package Dimension (W*D*H) (mm) | 770*330*480 |
| Gross Weight (Kg) | 13 |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
