Brand: Infitek | Category: Scientific & Laboratory Equipment

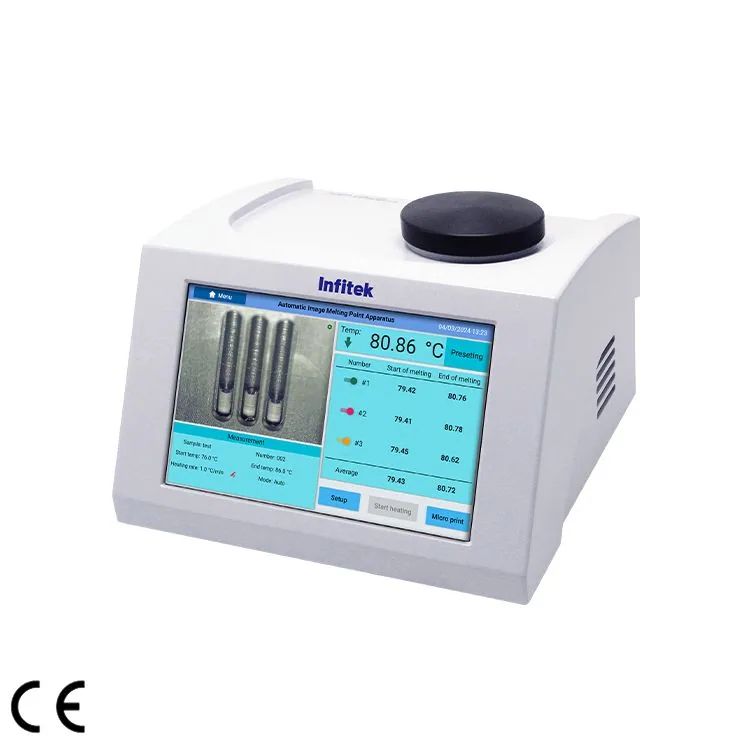

Infitek Melting Point Apparatus, MTP-650, MTP-630 is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: MTP-650, MTP-630. Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MTP-650 | MTP-630 |
|---|---|---|
| Measurement Range | Room temperature – 400℃ | Room temperature – 400℃ |
| Measurement Mode | Auto/Visual | Auto/Visual |
| Pre-stored Measurement Methods | 600 | 400 |
| Number of Users | 300 | 200 |
| Audit Trail | Optional | Optional |
| Electronic Signature | Yes | Yes |
| Resolution | 0.01℃ | 0.01℃ |
| Linear Heating Rate | 0.1℃/min~20℃/min | 0.1℃/min~20℃/min |
| Accuracy | ≤ 200℃±0.3℃; > 200℃±0.5℃ | ≤ 200℃±0.3℃; > 200℃±0.5℃ |
| Repeatability | 0.3℃ (heating rate: 1.0℃/min) | 0.3℃ (heating rate: 1.0℃/min) |
| Linear Heating Rate Error | ±5% | ±5% |
| Number of Capillary | 5 | 3 |
| Capillary Dimensions | Outer diameter: φ1.4mm; Inner diameter: φ1.0mm; Length: 90mm; | Outer diameter: φ1.4mm; Inner diameter: φ1.0mm; Length: 90mm; |
| Height of Sample | 3mm | 3mm |
| Operating System | Android | Android |
| Data Storage | 128 G | 128 G |
| Display | 10.1-inch touchscreen | 10.1-inch touchscreen |
| Interface | 1×RS 232, 3×USB, 1×RJ-45, Wi-Fi | 1×RS 232, 3×USB, 1×RJ-45, Wi-Fi |
| Power Supply | 100V~240VAC, 50Hz/60Hz, 150W | 100V~240VAC, 50Hz/60Hz, 150W |
| Package Dimension | 495*493*350 mm | 495*493*350 mm |
| Gross Weight | 5kg | 5kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
