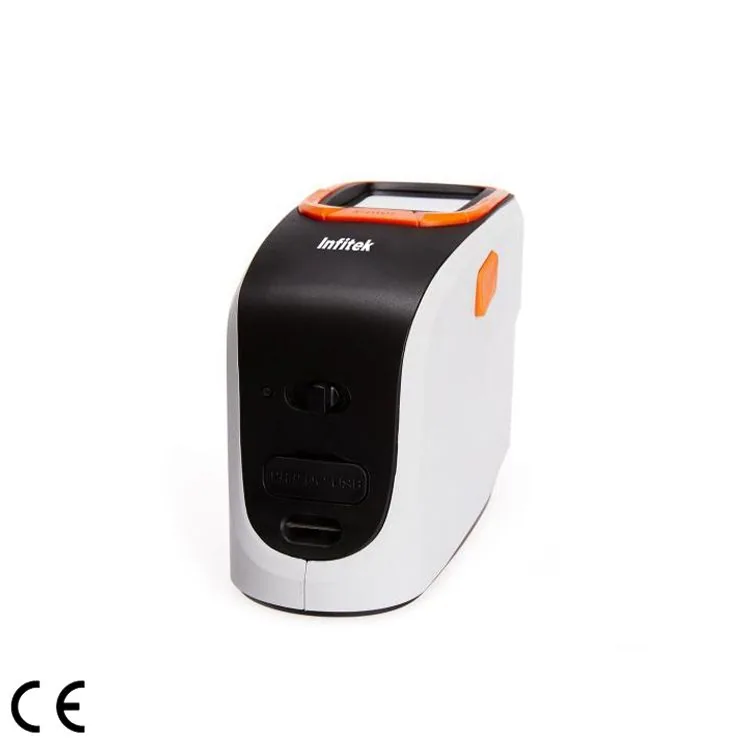

Infitek Grating Portable Spectrophotometer, SP-CLR650A,B
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Grating Portable Spectrophotometer, SP-CLR650A,B is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: SP-CLR650A, SP-CLR650B. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SP-CLR650A | SP-CLR650B | SP-CLR650B |
|---|---|---|---|
| Optical Geometry | d/8(Diffused lighting, 8 degrees observe angle)、SCI(specular reflection included)/SCE(specular reflection excluded)simultaneous measurement。(conform to CIE No.15、ISO 7724/1、ASTM E1164、DIN 5033 Teil7、 JIS Z8722 Condition c standards) | d/8(Diffused lighting, 8 degrees observe angle)、SCI(specular reflection included)/SCE(specular reflection excluded)simultaneous measurement。(conform to CIE No.15、ISO 7724/1、ASTM E1164、DIN 5033 Teil7、 JIS Z8722 Condition c standards) | d/8(Diffused lighting, 8 degrees observe angle)、SCI(specular reflection included)/SCE(specular reflection excluded)simultaneous measurement。(conform to CIE No.15、ISO 7724/1、ASTM E1164、DIN 5033 Teil7、 JIS Z8722 Condition c standards) |
| Light Source | Pulse xenon lamp,with UV | Pulse xenon lamp,with UV | Pulse xenon lamp,with UV |
| Integrating Sphere Size | φ40mm, Avian diffused reflection surface coating | φ40mm, Avian diffused reflection surface coating | φ40mm, Avian diffused reflection surface coating |
| Sensor | Dual optical path sensor array | Dual optical path sensor array | Dual optical path sensor array |
| Measuring Aperture | 10mm | 10mm | 4mm, 6mm |
| Wavelength Range | 360-740nm | 360-740nm | 360-740nm |
| Wavelength Interval | 10nm | 10nm | 10nm |
| Half Spectral Width | 5nm | 5nm | 5nm |
| Measured Reflectance Range | 0-200% | 0-200% | 0-200% |
| Reflectance Resolution | 0.01% | 0.01% | 0.01% |
| Observer Angle | 2°/10° | 2°/10° | 2°/10° |
| Illuminant | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF |
| Display | SPD distribution/data，sample’s color values，color difference values/graph，pass/fail results，color error tendency，color simulation，display measurement area，history data color simulation，manual input standard sample，generate measurement report | SPD distribution/data，sample’s color values，color difference values/graph，pass/fail results，color error tendency，color simulation，display measurement area，history data color simulation，manual input standard sample，generate measurement report | SPD distribution/data，sample’s color values，color difference values/graph，pass/fail results，color error tendency，color simulation，display measurement area，history data color simulation，manual input standard sample，generate measurement report |
| Measuring Time Interval | 1s | 1s | 1s |
| Measuring Time | 2s | 2s | 2s |
| Color Space | CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance Hunterlab,Munsell MI,CMYK,RGB,HSB | CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance Hunterlab,Munsell MI,CMYK,RGB,HSB | CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance Hunterlab,Munsell MI,CMYK,RGB,HSB |
| Color Difference Formula | ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00 ΔEab(Hunter),555 shade sort | ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00 ΔEab(Hunter),555 shade sort | ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00 ΔEab(Hunter),555 shade sort |
| Other Colorimetric Index | WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby)； YI(ASTM D1925，ASTM E313-00,ASTM E313-73)；Tint(ASTM E313,CIE,Ganz) Metamerism index Milm, Stick color fastness, Color fastness ISO luminance, 8 gloss, A density, T density, M density, E density,Covering power, force,Opacity, color strength | WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby)； YI(ASTM D1925，ASTM E313-00,ASTM E313-73)；Tint(ASTM E313,CIE,Ganz) Metamerism index Milm, Stick color fastness, Color fastness ISO luminance, 8 gloss, A density, T density, M density, E density,Covering power, force,Opacity, color strength | WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby)； YI(ASTM D1925，ASTM E313-00,ASTM E313-73)；Tint(ASTM E313,CIE,Ganz) Metamerism index Milm, Stick color fastness, Color fastness ISO luminance, 8 gloss, A density, T density, M density, E density,Covering power, force,Opacity, color strength |
| Repeatability | Light splitting reflectivity：standard deviation within 0.08% | Light splitting reflectivity：standard deviation within 0.08% | Light splitting reflectivity：standard deviation within 0.08% |
| Repeatability | Color values:ΔE*ab<=0.02, Max.:0.04 | Color values:ΔE*ab<=0.02, Max.:0.04 | Color values:ΔE*ab<=0.02, Max.:0.04 |
| Battery | Rechargeable, 10000 continuous tests, 7.4V/6000mAh | Rechargeable, 10000 continuous tests, 7.4V/6000mAh | Rechargeable, 10000 continuous tests, 7.4V/6000mAh |
| Interface | USB | USB | USB |
| Data Storage | 20000 test results | 20000 test results | 20000 test results |
| Illuminant Life Span | 1.5 million measurements in 5 years | 1.5 million measurements in 5 years | 1.5 million measurements in 5 years |
| Inter-Instrument Error | ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts) | ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts) | ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts) |
| Screen | True color screen that includes all colors | True color screen that includes all colors | True color screen that includes all colors |
| Operating Environment | 0~45℃, relative humidity 80% or below( at 35°C ), no condensation | 0~45℃, relative humidity 80% or below( at 35°C ), no condensation | 0~45℃, relative humidity 80% or below( at 35°C ), no condensation |
| Storage Environment | -25℃ ~55℃，relative humidity 80% or below(at 35°C ), no condensation | -25℃ ~55℃，relative humidity 80% or below(at 35°C ), no condensation | -25℃ ~55℃，relative humidity 80% or below(at 35°C ), no condensation |
| Standard Accessory | DC adapter, Lithium battery, manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube, protective cover, spire lamella, portable bag, electronic color charts, measurement and test report | DC adapter, Lithium battery, manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube, protective cover, spire lamella, portable bag, electronic color charts, measurement and test report | DC adapter, Lithium battery, manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube, protective cover, spire lamella, portable bag, electronic color charts, measurement and test report |
| Optional Accessory | Powder molding device, micro printer | Powder molding device, micro printer | Powder molding device, micro printer |
| External Dimension(L*W*H) | 181*73*112mm | 181*73*112mm | 181*73*112mm |
| Net Weight | About 0.55kg (excluding battery’s weight) | About 0.55kg (excluding battery’s weight) | About 0.55kg (excluding battery’s weight) |
Manufacturer catalogue checked 2026-09-28.
