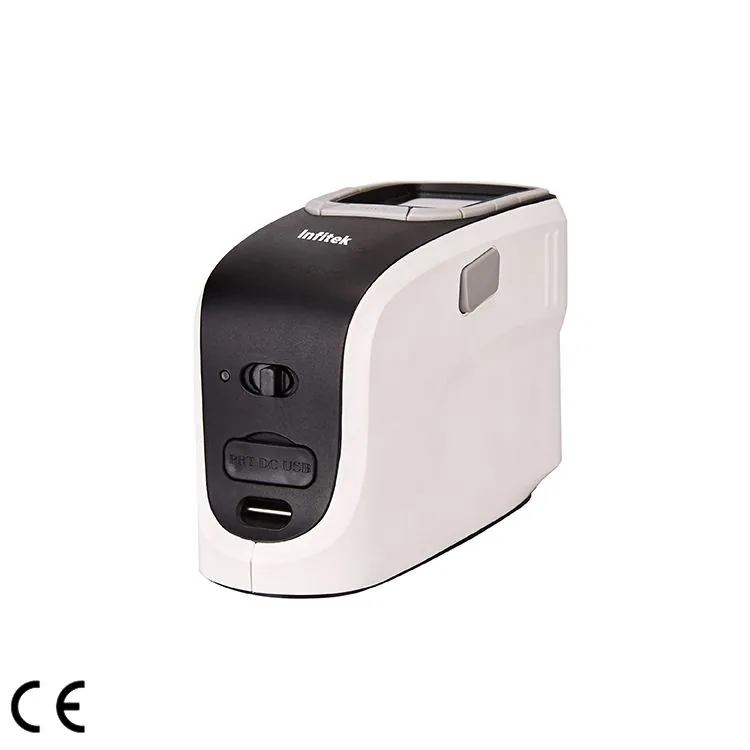

Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Grating Portable Spectrophotometer, SP-CLR600C is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: SP-CLR600C. Published details include Wavelength Range: 400-700nm. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SP-CLR600C |
|---|---|
| Optical Geometry | 45/0(45 ring-shaped illumination,0 observe degree) |
| Measuring Aperture | φ11mm |
| Light Source | LED |
| Sensor | High sensitivity silicon photodiode |
| Wavelength Range | 400-700nm |
| Wavelength Interval | 10nm |
| Repeatability | Light splitting reflectivity：standard deviation within 0.08% |
| Repeatability | Color values;ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals), Maximum：0.05 |
| Inter-Instrument Error | ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts) |
| Observer Angle | 2°/ 10° |
| Illuminant | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30.DLF,NBF,TL83,TL84.U35 |
| Color Space | CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance Hunterlab,Munsell MI,CMYK,RGB,HSB |
| Other Colorimetric Index | WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby)； YI(ASTM D1925，ASTM E313-00,ASTM E313-73)；Tint(ASTM E313,CIE,Ganz) Metamerism index Milm, Stick color fastness, Color fastness ISO luminance, 8 gloss, A density, T density, M density, E density |
| Color Difference | ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00,ΔEab(Hunter),555 shade sort |
| Illuminant Life Span | 3 million measurements in 10 years |
| Data Storage | 20000 test results |
| Interface | USB |
| Screen | 2.8-inch color screen |
| Battery | Rechargeable, 10000 continuous tests, 7.4V/6000mAh |
| Operating Environment | 0~45℃, relative humidity 80% or below( at 35°C ),no condensation |
| Standard Accessory | AC adapter, lithium battery, manual, color management software, driver software, manual electronic version, color Management tutorial, data cable, black and white correction tube, portable bag |
| Optional Accessory | Measurement area locator |
| Dimension(L*W*H)) | 181*73*112mm |
| Net Weight | About 0.8kg(excluding battery’s weight) |
