Brand: Infitek | Category: Scientific & Laboratory Equipment

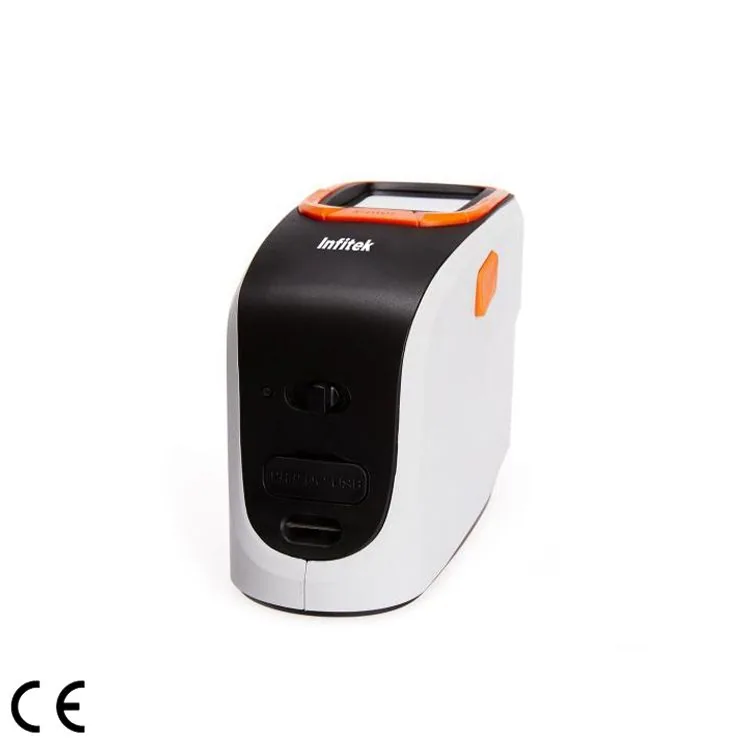

Infitek Grating Portable Spectrophotometer, SP-CLR660A is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: SP-CLR660A. Published details include Wavelength Range: 400-700nm. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SP-CLR660A |
|---|---|
| Optical Geometry | D/8(Diffused illumination, 8°viewing);SCI(specular component included)/SCE(specular component excluded)simultaneous measurement (conform to CIE No.15、ISO 7724/1、ASTM E1164、DIN 5033 Teil7、 JIS Z8722 Condition c standards) |
| Light Source | CLEDs( Full waveband balanced LED light source) |
| Integrating Sphere Size | φ40mm, Avian diffused reflection surface coating |
| Sensor | Dual optical path sensor array |
| Measuring Aperture | 10mm |
| Wavelength Range | 400-700nm |
| Wavelength Interval | 10nm |
| Half Spectral Width | 5nm |
| Measured Reflectance Range | 0-200% |
| Reflectance Resolution | 0.01% |
| Observer Angle | 2°/10° |
| Illuminant | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF |
| Display | Reflectance graph/value, sample chromatic value, color difference values, color assessment results, color tendency, display measurement area, history color value simulation, manual input standard sample, generate measurement reports |
| Measuring Time Interval | 0.5s |
| Measurement Time | 1s |
| Color Space | CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance |
| Color Space | Hunterlab,Munsell MI,CMYK,RGB,HSB |
| Color Difference Formula | ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00 |
| Color Difference Formula | ΔEab(Hunter),555,color classification |
| Other Colorimetric Index | WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby)； YI(ASTM D1925，ASTM E313-00,ASTM E313-73)；Tint(ASTM E313,CIE,Ganz) |
| Other Colorimetric Index | Metamerism index Milm, Stick color fastness, Color fastness |
| Other Colorimetric Index | ISO luminance, 8 gloss, A density, T density, M density, E density,Covering power, force,Opacity, color strength |
| Repeatability | Reflectance: standard deviation within 0.08% |
| Repeatability | Chromaticity values: ΔE*ab<=0.015 |
| Repeatability | Maximum:0.03 |
| Battery | Rechargeable, 10000 continuous tests, 7.4V/6000mAh |
| Interface | USB |
| Data Storage | 20000 test results |
| Illuminant Life Span | 1.5 million measurements in 5 years |
| Inter-instrument Error | ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts) |
| Screen | True color screen that includes all colors |
| Operating Environment | 0~45℃, relative humidity 80% or below( at 35°C ),no condensation |
| Storage Environment | -25℃~ 55℃，relative humidity 80% or below(at 35°C ),no condensation |
| Standard Accessory | Power line, operating manual, color QC software, driving software, electric operating manual, USB cable, white/black calibration tile and cover, canvas bag, verification certification |
| Optional Accessory | Powder molding device, micro printer |
| External Dimension; (L*W*H) | 181*73*112mm |
| Net Weight | About 0.55kg (excluding battery’s weight) |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
