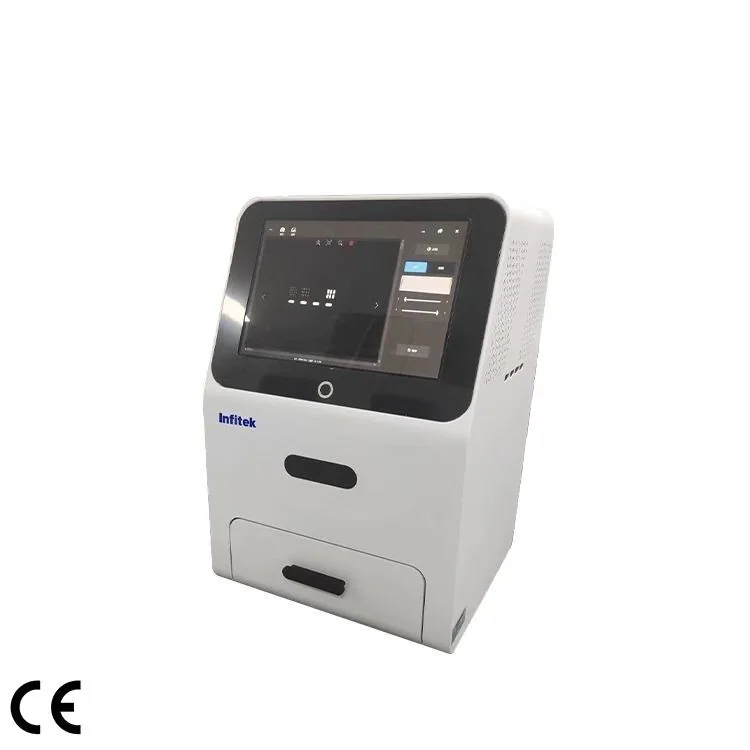

Infitek Gel Imaging System, GEP-GDX3T
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Gel Imaging System, GEP-GDX3T is listed in VVON's electrophoresis & gel imaging range for Bangladesh. Published models: GEP-GDX3T. Match gel format, sample capacity, power supply and imaging method. For a quotation, send the gel type, sample count, detection method and imaging requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | GEP-GDX3T |
|---|---|
| Pixel | 6.3 million pixels |
| Exposure | 1 ms-5000ms |
| Photosensitive Efficiency | High QE: >80% |
| Pixel Merge | 1×1 |
| Electric Lens | 20 milion pixel auto-focus lens |
| Dynamic Range | ≥4.8 orders of magnitude |
| Image Density | 16 bit (0-65535 colors) |
| Ultraviolet Transmission | 302nm, optional blue light transillumination |
| White Light Reflection | LED dual-side reflection (cold light) |
| White Light Transmission | LED white light self-emitting sample plate |
| Filter Lens | 590nm standard (others optional) |
| Shooting Area | 21x21cm |
| Timed Close | 1~60 min |
| Touch Control System | 13.3-inch touch control system |
| Dimension | 360*362*566mm |
| N.W./G.W. | 19.5kg/22.3kg |
| Shipping Dimension | 450*462*666mm |
Manufacturer catalogue checked 2026-09-28.
