Brand: Infitek | Category: Scientific & Laboratory Equipment

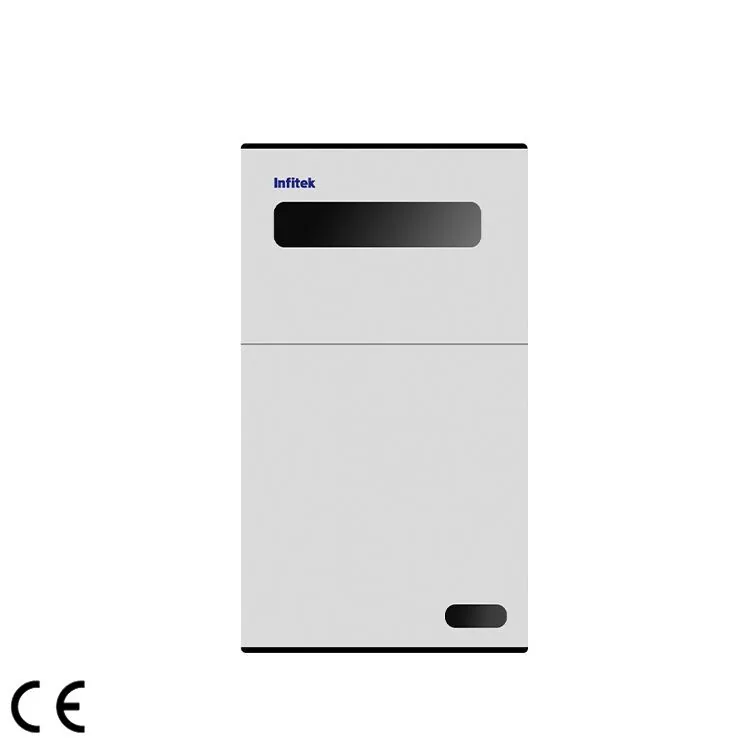

Infitek Gel Imaging System, GEP-GD600 GEP-GD600MF is listed in VVON's electrophoresis & gel imaging range for Bangladesh. Published models: GEP-GD600, GEP-GD600MF. Match gel format, sample capacity, power supply and imaging method. For a quotation, send the gel type, sample count, detection method and imaging requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | GEP-GD600 | GEP-GD600 | GEP-GD600MF |
|---|---|---|---|
| Pixel | 9.0MP | 9.0MP | 9.0MP |
| Multi-color Fluorescent Function | No | No | Yes |
| Cooling Temperature | -65°C | -65°C | -65°C |
| Photosensitive Efficiency | High QE: 95% | High QE: 95% | High QE: 95% |
| Pixel Size | 3.76μm×3.76μm | 3.76μm×3.76μm | 3.76μm×3.76μm |
| Binning | 1×1 2×2 4×4··· 8×8 | 1×1 2×2 4×4··· 8×8 | 1×1 2×2 4×4··· 8×8 |
| Exposure | 1ms-60min | 1ms-60min | 1ms-60min |
| Bit | 16 bit (0-65535) | 16 bit (0-65535) | 16 bit (0-65535) |
| OD | ≥4.8OD | ≥4.8OD | ≥4.8OD |
| Electric Lens | F0.95 autofocus lens, optional F0.8 autofocus lens | F0.95 autofocus lens, optional F0.8 autofocus lens | F0.95 autofocus lens, optional F0.8 autofocus lens |
| UV Transmission | 302nm, Area:21*21cm | 302nm+365nm, Area:21*21cm | 302nm+365nm, Area:21*21cm |
| White Light Source | Double layer LED reflection on top and bottom, | Double layer LED reflection on top and bottom, | Double layer LED reflection on top and bottom, |
| White Light Source | LED white light self luminous sample board | LED white light self luminous sample board | LED white light self luminous sample board |
| UV Reflection | Optional | 254nm, optional 302nm, 365nm | 254nm, optional 302nm, 365nm |
| Filter Wheel | 2-position filter wheel standard (others optional) | 5-position filter wheel standard (others optional) | 5-position filter wheel standard (others optional) |
| Filter Lens | 590nm standard (others optional) | Standard 535nm, 590nm, 605nm, 699nm，Optional 720nm, 820nm | Standard 535nm, 590nm, 605nm, 699nm，Optional 720nm, 820nm |
| Imaging Area | 20*20cm | 20*20cm | 20*20cm |
| Timed Shutdown | 1 ~ 60min | 1 ~ 60min | 1 ~ 60min |
| Dimension | 380*405*695mm | 380*405*695mm | 380*405*695mm |
| N.W./G.W. | 35.8kg/38.5kg | 37kg/40kg | 37kg/40kg |
| Package Dimension (W*D*H)(mm) | 500*525*825mm | 500*525*825mm | 500*525*825mm |
Manufacturer catalogue checked 2026-09-28.
