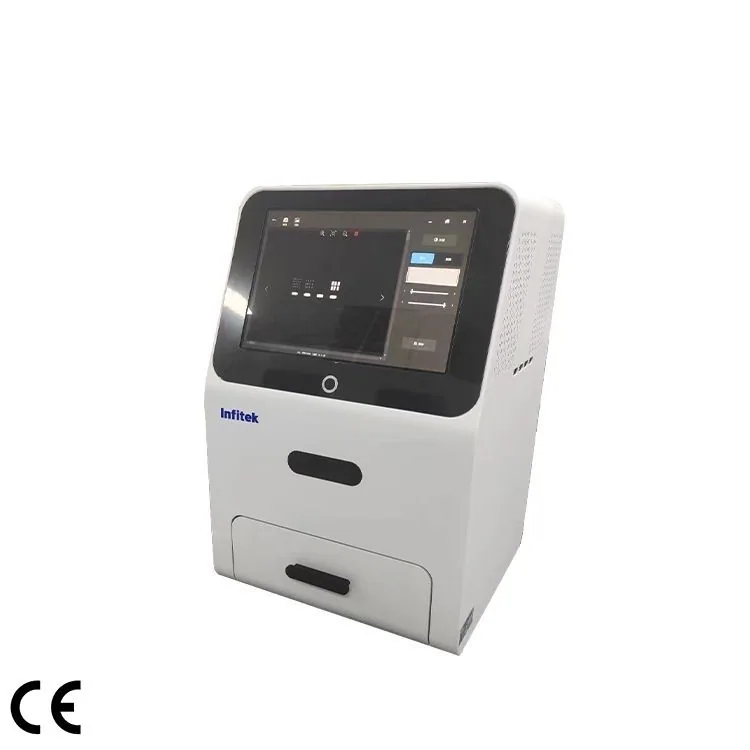

Infitek Gel Imaging System, GEP-GDX6T
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Gel Imaging System, GEP-GDX6T is listed in VVON's electrophoresis & gel imaging range for Bangladesh. Published models: GEP-GDX6T. Match gel format, sample capacity, power supply and imaging method. For a quotation, send the gel type, sample count, detection method and imaging requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | GEP-GDX6T |
|---|---|
| Pixel | 9 million pixels |
| Cooling Temperature | -65℃ |
| Photosensitive Efficiency | High QE: >95% |
| Pixel Size | 3.75μm×3.75μm |
| Binning | 1×1 2×2 4×4··· 24×24 |
| Exposure | 1ms-120min |
| Image Density | 16 bit (0-65535 colors) |
| Dynamic Range | ≥4.8 orders of magnitude |
| Electric Lens | F0.95 auto-focus lens, optional F0.8 lens available |
| White Light Reflection | LED dual-sided reflection (cold light) |
| Shooting Area | 16x14cm |
| Timed Close | 1~60min |
| Touch Control System | Built-in 13.3-inch high-performance touch control system |
| Dimension | 360*362*566mm |
| N.W./G.W. | 17.8kg/20.3kg |
| Shipping Dimension | 450*462*666mm |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
