Brand: Infitek | Category: Scientific & Laboratory Equipment

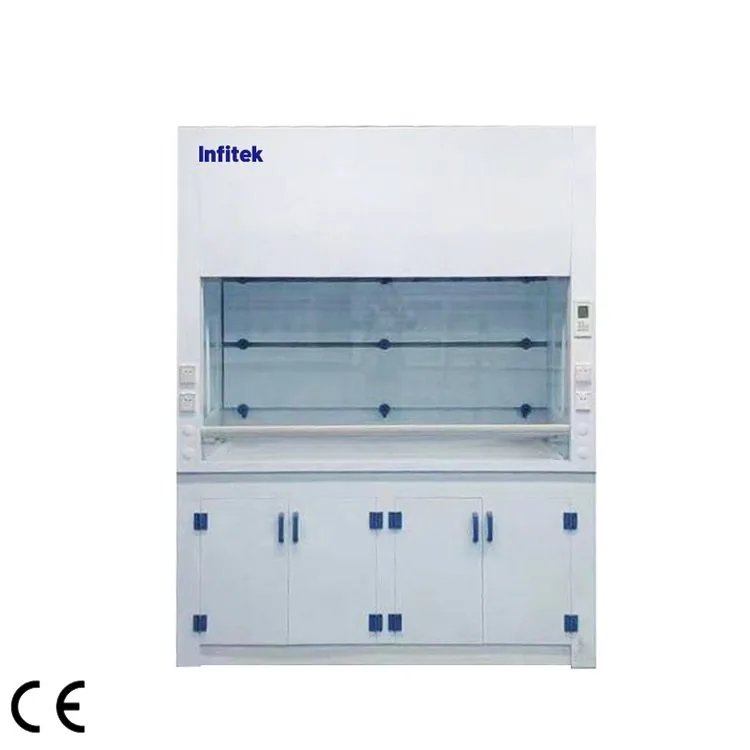

Infitek Fume Hood, FMH-PA Series is listed in VVON's fume hoods & laboratory ventilation range for Bangladesh. Published models: FMH-P1200A, FMH-P1500A, FMH-P1800A. Check chemical compatibility, extraction method, working space and ducting needs. For a quotation, send the chemicals, process, hood width, extraction route and room utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | FMH-P1200A | FMH-P1500A | FMH-P1800A |
|---|---|---|---|
| External Dimension (mm) | 1200*850*2350 | 1500*850*2350 | 1800*850*2350 |
| Internal Dimension (mm) | 990*600*1100 | 1290*600*1100 | 1590*600*1100 |
| Window Opening Height (mm) | 700 | 700 | 700 |
| Exhaust Volume (m^(3)/h) | 1300 | 1500 | 1800 |
| Exhaust Diameter (mm) | φ250 | φ250 | φ250 |
| Surface Velocity (m/s) | 0.3~0.5 | 0.3~0.5 | 0.3~0.5 |
| LED Lamp | 30W *1pc | 30W *1pc | 30W *1pc |
| Sound Emission (dB) | Less than 65 | Less than 65 | Less than 65 |
| Power Input Voltage | AC 220V, 50/60Hz | AC 220V, 50/60Hz | AC 220V, 50/60Hz |
| Current and Power of Power Socket | 10A, 2200W | 10A, 2200W | 10A, 2200W |
| Net Weight (kg) | About 250 | About 300 | About 350 |
| Standard Accessories | Main cabinet, Base cabinet, Gas collection hood, φ250 axial flow fan, PP countertop, LED lamp, Socket，3-meter hose and 6 clamps | Main cabinet, Base cabinet, Gas collection hood, φ250 axial flow fan, PP countertop, LED lamp, Socket，3-meter hose and 6 clamps | Main cabinet, Base cabinet, Gas collection hood, φ250 axial flow fan, PP countertop, LED lamp, Socket，3-meter hose and 6 clamps |
| Optional Accessories | Water accessories: PP water cup, PP sink, single-mouth faucet, three-mouth faucet, Gas valve, Gas nozzle, Water valve, Water nozzle; Countertop:12.7mm solid physical and chemical board, 16mm epoxy resin, 20mm ceramic; 5mm HPL lining, 5mm ceramic fiber lining; Fan: φ315 Axial flow fan; Pipe | Water accessories: PP water cup, PP sink, single-mouth faucet, three-mouth faucet, Gas valve, Gas nozzle, Water valve, Water nozzle; Countertop:12.7mm solid physical and chemical board, 16mm epoxy resin, 20mm ceramic; 5mm HPL lining, 5mm ceramic fiber lining; Fan: φ315 Axial flow fan; Pipe | Water accessories: PP water cup, PP sink, single-mouth faucet, three-mouth faucet, Gas valve, Gas nozzle, Water valve, Water nozzle; Countertop:12.7mm solid physical and chemical board, 16mm epoxy resin, 20mm ceramic; 5mm HPL lining, 5mm ceramic fiber lining; Fan: φ315 Axial flow fan; Pipe |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
