Brand: Infitek | Category: Scientific & Laboratory Equipment

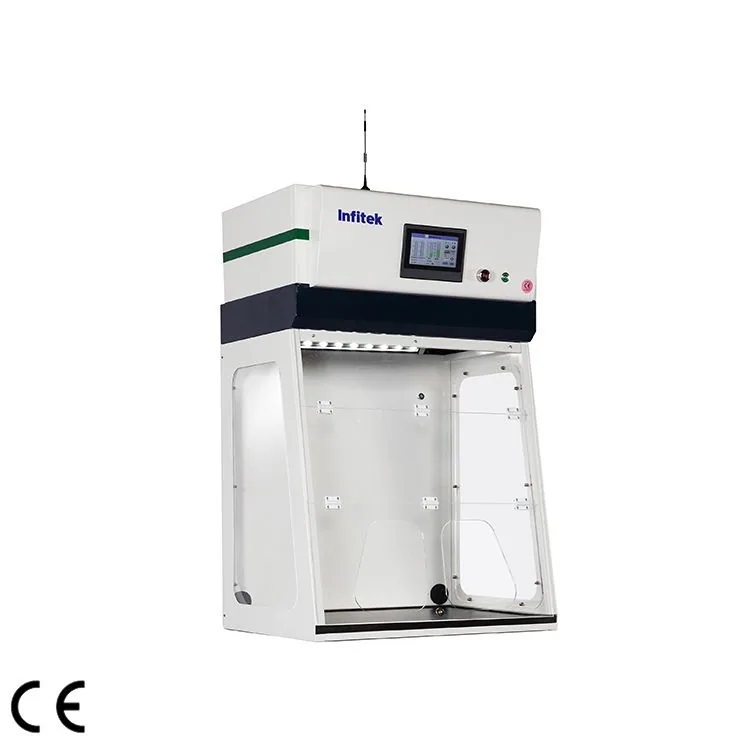

Infitek Ductless Fume Hood, FMH Series is listed in VVON's fume hoods & laboratory ventilation range for Bangladesh. Published models: FMH-800, FMH-1000, FMH-1300, FMH-1600, FMH-1600A. Check chemical compatibility, extraction method, working space and ducting needs. For a quotation, send the chemicals, process, hood width, extraction route and room utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| 3 Choose a proper high efficient filter according to the chemicals 4 The hazardous air goes though molecular filter become fresh air | 1 The turbine motor draws the air from the outside of cabinet 2 The air brings the hazardous vapour into the filtration system |
|---|
| Model | Specification | Configure（customized） | Optional parts |
|---|---|---|---|
| FMH-800 | External Dimension(mm):; 800*620*1245mm | Filters(pcs): 2; Pre filters(pcs): 1; Fans(pc): 1; LED Lamp(pc):1; Display screen: 5 inch LCD touch screen; Worktable: Epoxy resin board; Power cord(pc): 1; Control systerm(unit): 1; Alarm System: VOC alarm, temperature and humidity alarm | Base cabinet; Stainless steel table-board; AnemometerUV lampWater tap Water sink Optional alarm:; Ammonia alarm; Formaldehyde alarm; HCL alarm |
| FMH-800 | lnternal Dimension(mm):; 781*574*934mm | Filters(pcs): 2; Pre filters(pcs): 1; Fans(pc): 1; LED Lamp(pc):1; Display screen: 5 inch LCD touch screen; Worktable: Epoxy resin board; Power cord(pc): 1; Control systerm(unit): 1; Alarm System: VOC alarm, temperature and humidity alarm | Base cabinet; Stainless steel table-board; AnemometerUV lampWater tap Water sink Optional alarm:; Ammonia alarm; Formaldehyde alarm; HCL alarm |
| FMH-800 | Air Capacity(m^(3)/h): 230m^(3)h; Face velocity:0.4-0.6m/s; Voltage:110V-240V; Frequency: 50-60Hz; Power: 42w | Filters(pcs): 2; Pre filters(pcs): 1; Fans(pc): 1; LED Lamp(pc):1; Display screen: 5 inch LCD touch screen; Worktable: Epoxy resin board; Power cord(pc): 1; Control systerm(unit): 1; Alarm System: VOC alarm, temperature and humidity alarm | Base cabinet; Stainless steel table-board; AnemometerUV lampWater tap Water sink Optional alarm:; Ammonia alarm; Formaldehyde alarm; HCL alarm |
| FMH-800 | Air Capacity(m^(3)/h): 230m^(3)h; Face velocity:0.4-0.6m/s; Voltage:110V-240V; Frequency: 50-60Hz; Power: 42w | Filters(pcs): 2; Pre filters(pcs): 1; Fans(pc): 1; LED Lamp(pc):1; Display screen: 5 inch LCD touch screen; Worktable: Epoxy resin board; Power cord(pc): 1; Control systerm(unit): 1; Alarm System: VOC alarm, temperature and humidity alarm | Filter Model:; SFGL OG: Organic filter; SFGL AG: Inorganic filter; SFGL FO:Formaldehyde filter; SFGL AM:Ammonia filter; SFGLH14:HEPA filter |
| FMH-800 | Rated currents: 2A; Volume: 40-52 dBA | Filters(pcs): 2; Pre filters(pcs): 1; Fans(pc): 1; LED Lamp(pc):1; Display screen: 5 inch LCD touch screen; Worktable: Epoxy resin board; Power cord(pc): 1; Control systerm(unit): 1; Alarm System: VOC alarm, temperature and humidity alarm | Filter Model:; SFGL OG: Organic filter; SFGL AG: Inorganic filter; SFGL FO:Formaldehyde filter; SFGL AM:Ammonia filter; SFGLH14:HEPA filter |
| FMH-800 | Operation hole: Trapezoid | Filters(pcs): 2; Pre filters(pcs): 1; Fans(pc): 1; LED Lamp(pc):1; Display screen: 5 inch LCD touch screen; Worktable: Epoxy resin board; Power cord(pc): 1; Control systerm(unit): 1; Alarm System: VOC alarm, temperature and humidity alarm | Filter Model:; SFGL OG: Organic filter; SFGL AG: Inorganic filter; SFGL FO:Formaldehyde filter; SFGL AM:Ammonia filter; SFGLH14:HEPA filter |
| Model | Specification | Configure | Optional parts |
|---|---|---|---|
| FMH-1000 | External Dimension(mm):; 1000*620*1245mm; lnternal Dimension(mm):; 981*574*934mm; Air Capacity(m’/h): 230m3/h; Face velocity: 0.4-0.6m/s; Voltage: 110V-240V; Frequency: 50-60Hz; Power: 42w; Rated currents: 2A; Volume: 40-52 dBA; Operation hole: Trapezoid | Filters(pcs): 2; Pre filters(pcs): 1; Fans(pc): 1; LED Lamp(pc):1; Display screen: 5 inch LCD touch screen; Worktable: Epoxy resin board; Power cord(pc):1; Control system(unit): 1; Alarm System: VOC alarm, temperature and humidity alarm | Base cabinet; Stainless steel table-board; AnemometerUV lampWater tap Water sink; Optional alarm:; Ammonia alarm; Formaldehyde alarm; HCL alarm; Filter Model:SFGL OG: Organic filter; SFGL AG: Inorganic filter; SFGL FO: Formaldehyde filter; SFGL AM:Amrmonia filter; SFGL H14:HEPA filter |
| Model | Specification | Configure | Optional parts |
|---|---|---|---|
| FMH-1300 | External Dimension(mm):; 1275*620*1245mm; lnternal Dimension(mm):; 1256*574*934mm; Air Capacity(m/h): 690m3/h; Face velocity: 0.4-0.6m/s; Voltage: 110V-240V; Frequency: 50-60Hz; Power: 126W; Rated currents:2A; Volume: 40- 52 dBA; Operation hole: Trapezoid | Filters(pcs): 2; Pre filters(pcs): 1; Fans(pcs): 3; LED Lamp(pc):1; Display screen: 5 inch LCD touch screen; Worktable:; Epoxy resin board; Power cord(pc): 1; Control system(unit):1; Alarm System: VOC alarm, temperature and humidity alarm | Base cabinet; Stainless steel table-board; AnemometerUV lampWater tap Water sink; Optional alarm:; Ammonia alarm; Formaldehyde alarm; HCL alarm; Filter Model:; SFGL OG: Organic filter; SFGL AG:Inorganic filter; SFGL FO: Formaldehyde filter; SFGL AM:Armrmonia filter; SFGL H14:HEPA filter |
| Model | Specification | Configure | Optional parts |
|---|---|---|---|
| FMH-1600 | External Dimension(mm):; 1600*620*1245mm; lnternal Dimension(mm):; 1581*574*934mm; Air Capacity(m’/h): 690m3/h; Face velocity:0.4-0.6m/s; Voltage: 110V-240V; Frequency 50-60Hz; Power: 126w; Rated currents: 5A; Volume: 40-52 dBA; Operation hole: Trapezoid | Filters(pcs): 2; Pre filters(pcs): 1; Fans(pcs): 3; LED Lamp(pc):1; Display screen: 5 inch LCD touch screen; Worktable:; Epoxy resin board; Power cord(pc): 1; Control systerm(unit):1; Alarm System: VOC alarm, temperature and humidity alarm | Base cabinet; Stainless steel table-board; AnemometerUV lampWater tap Water sink; Optional alarm:; Ammonia alarm; Formaldehyde alarm; HCL alarm; Filter Model:; SFGL OG: Organic filter; SFGL AG: Inorganic filter; SFGL FO:Formaldehyde filter; SFGL AM:Ammonia filter; SFGL H14:HEPA filter |
| Model | Specification | Configure | ptional parts |
|---|---|---|---|
| FMH-1600A | External Dimension(mm):; 1600*790*1245mm; lnternal Dimension(mm):; 1581*744*934mm; Air Capacity(m’/h): 690m3/h; Face velocity: 0.4-0.6m/s; Voltage: 110V-240V; Frequency: 50-60Hz; Power: 126W; Rated currents: 5A; Volume: 40-52dBAOperation hole: Trapezoid | Filters(pcs): 2; Pre filters(pcs): 1; Fans(pcs): 3; LED Lamp(pc):1; Display screen: 5 inch LCD touch screen; Worktable:; Epoxy resin board; Power cord(pc): 1; Control system(unit):1; Alarm System: VOC alarm, temperature and humidity alarm | Base cabinet; Stainless steel table-board; AnemometerUV lampWater tap Water sink; Optional alarm:; Ammonia alarm; Formaldehyde alarm; HCL alarm; Filter Model:; SFGL OG: Organic filter; SFGL AG: Inorganic filter; SFGL FO:Formaldehyde filter; SFGL AM:Ammonia filter; SFGLH14:HEPA filter |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
