Brand: Infitek | Category: Medical Equipment

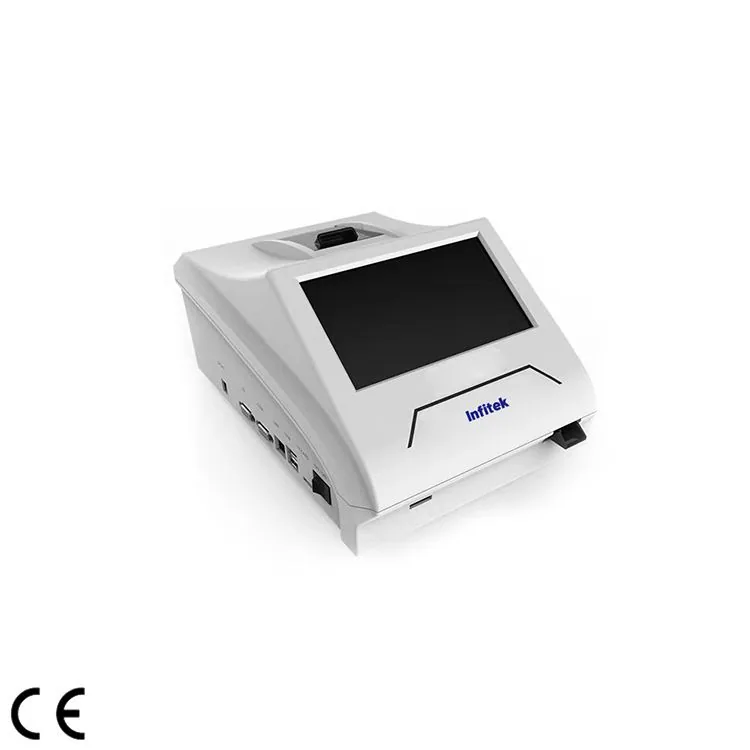

Infitek Dry Immunofluorescence Analyzer, IFA-J1000D is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: IFA-J1000D. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | IFA-J1000D |
|---|---|
| Detection Time | 13~18min |
| Quality Control | Lyophilized controls with high, medium and low concentration levels |
| Display | 7-inch LCD touch screen |
| Speed | 180 Test/h (take PCT as an example) |
| Quality Control | Internal quality control calibration |
| Storage | More than 30,000 |
| Printing | Built-in thermal printer, can be connected to an external printer |
| Data Transmission | USB, RS232, LIS |
| Electricity | AC 220V 50/60Hz |
| External Dimension | 291*220*162mm |
| N.W./G.W. | 3.44/4.04kg |
| Shipping Dimension | 295*240*390mm |
| Biomarkers | Measurable Range | Sample Volume | Clinical Use |
|---|---|---|---|
| Peripheral PCT | 0.01-100ng/mL | Peripheral blood 20ul | Diagnosis of infectious diseases and sepsis |
| PCT | 0.01~100ng/mL | Serum / plasma 100μL Whole blood 120μL | Diagnosis of infectious diseases and sepsis |
| IL-6 | 2pg~4000pg/mL | Serum / plasma 100μL Whole blood 120μL | Early markers of acute inflammation |
| CRP | 0.1~200mg/L | Serum / plasma 100μL Whole blood 120μL | Auxiliary diagnosis of inflammation |
| PCT/IL-6 | 0.01~100ng/mL 2pg~4000pg/mL | Serum / plasma 100μL Whole blood 120μL | Diagnosis of infectious diseases and sepsis |
| hs-cTnI | 0.005~50ng/mL | Serum/plasma 100μL Whole blood 120μL | Gold standard for ACS and AMI diagnosis |
| NT-proBNP | 5pg~35000pg/mL | Serum/plasma 100μL Whole blood 120μL | Diagnosis of heart failure |
| CK-MB/hs-cTnI/MYO | 0.1~100ng/mL 0.005~50ng/mL 1~500ng/mL | Serum/plasma 100μL Whole blood 120μL | Comprehensive solution to myocardial injury |
| H-FABP | 1~200ng/mL | Serum/plasma 100μL Whole blood 120μL | Early diagnosis of myocardial injury |
| D-Dimer | 0.01~10mg/L | Plasma 100μL, Whole blood 120μL | Diagnosis of Deep Vein Thrombosis(DVT) and Pulmonary Embol(PE) |
| NGAL | 1~5000ng/mL | Serum/ plasma 20μL Whole blood 30μL Urine 20μL | Diagnosis of Acute Kidney Injury (AKI) and acute renal failure (ARF) |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Sample volume: 0~3000 μL (≥500 μL recommend). Compare the test menu, samples per day, reagent compatibility and quality-control workflow.
Sample Volume: Minimum volume:3mL,Aspiration volume:1mL; Aspiration Volume: 1ml. Compare the test menu, samples per day, reagent compatibility and quality-control workflow.
Sample volume: 0~3000 μL (≥500 μL recommend). Compare the test menu, samples per day, reagent compatibility and quality-control workflow.
