Brand: Infitek | Category: Medical Equipment

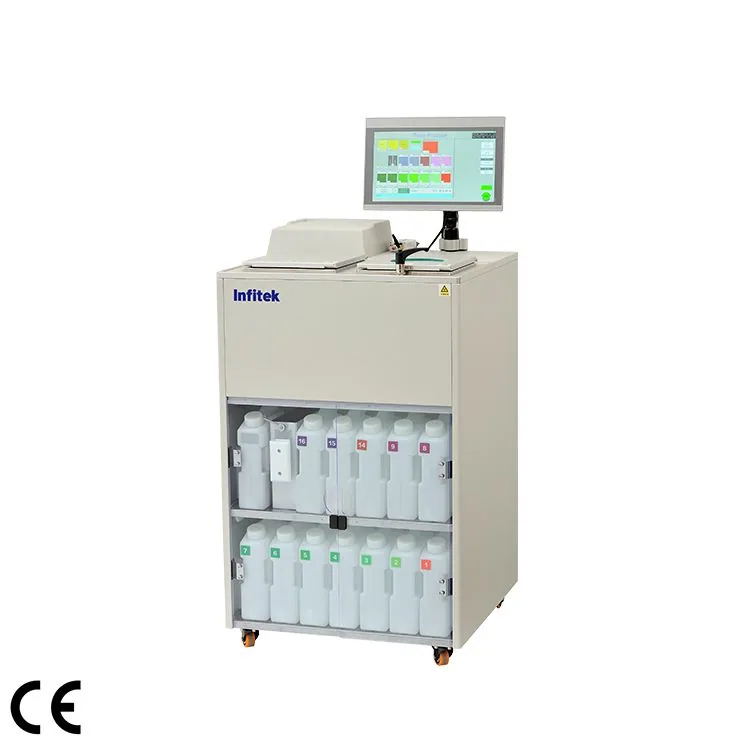

Infitek Fully Automatic Enclosed Tissue Processor, TSP-CV1 is listed in VVON's histology & pathology equipment range for Bangladesh. Published details include Capacity of Processing Station: 9Liters; Capacity of Reagent Station: 6L. Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Numbers of Reagent Station | 12 |
|---|---|
| Tissue Processing Station | NO.1 to No.9 Station |
| Washing Station | No.14 to No.16 Station |
| Numbers of Wax Tank | 3(No.10,12 and 13) |
| Numbers of Working Station | 1 |
| Capacity of Processing Station | 9Liters |
| Capacity of Reagent Station | 6L |
| Single wax tank capacity | 6L |
| Dehydration basket capacity | 163*163*198 (mm) (300 dehydration cassettes) |
| Temperature of Processing Station: | Temperature of Processing Station: |
| Medium is the solvent | RT – 45℃ |
| Medium is the Wax | 58℃-80℃ |
| Operation pressure | ＜0.1Mpa |
| Single reagent processing time | Tanks 1 & 2: 0~6000 minutes, others: 0~300 minutes |
| Programmable settings | 10 sets. |
| Wax melt time | Not more than 3 hours |
| Power input | ＜1500VA+10% |
| Working Voltage | 220VAC±10%,50/60HZ |
| Time for Inflow Liquid | no more than 5Min |
| Time for Exclude Liquid | no more than 5Min |
| Stirring time | 0~9 minutes |
| Interval time for Stirring | 0~12 minutes |
| Operation mode | Manual and automatic |
| Overall Dimension | 650×650×1350mm(W×D×H) |
| Net Weight | 115kg |
| Package Dimension (W*D*H)(mm) | 770*770*1480 |
Manufacturer catalogue checked 2026-09-28.
