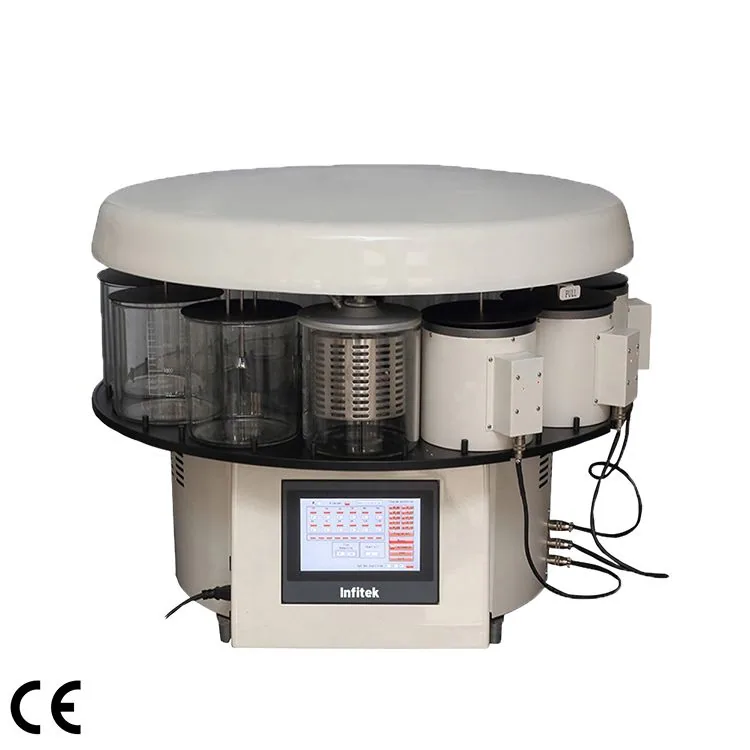

Infitek Automated Tissue Processor, TSP-6A/TSP-6B
Brand: Infitek | Category: Medical Equipment
Infitek Automated Tissue Processor, TSP-6A/TSP-6B is listed in VVON's histology & pathology equipment range for Bangladesh. Published models: TSP-6A, TSP-6B. Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | TSP-6A | TSP-6B |
|---|---|---|
| Tissue Processing Steps | 12 steps | 12 steps |
| Number of Reagent Cups | 9, with a volume of 2.3L | 9, with a volume of 2.3L |
| Number of Paraffin Cups | 3, with a volume of 1.8L | 3, with a volume of 1.8L |
| Temperature Range | 56-86℃ (±1℃) | 56-86℃ (±1℃) |
| Dehydration basket capacity | about 80 dehydration boxes | about 80 dehydration boxes |
| Program | Duration in each cup; 0-10 hours (10 programs) | Duration in each cup; 0-10 hours (10 programs) |
| Maximal turn-on delay | 1 month | 1 month |
| Minimum time interval setting | 1 min | 1 min |
| Frequency of basket stirring | ≥10 times/hour, 30 sec for each time | ≥10 times/hour, 30 sec for each time |
| Vacuum Degree | / | 0.053MPa |
| Power | 1000W | 1000W |
| Size of Basket | Φ95×80mm; | Φ95×80mm; |
| Dimensions | 670 (Diameter)× 550 (Height, 680 mm at the highest point) | 670 (Diameter)× 550 (Height, 680 mm at the highest point) |
| Package Dimension (W*D*H)(mm) | 1210*920*820mm | 1210*920*820mm |
| Working Voltage | AC 220V±10% 50Hz (standard model), an additional converter is needed for 110V | AC 220V±10% 50Hz (standard model), an additional converter is needed for 110V |
| Net Weight | 60kg | 60kg |
| G.W.(kg) | 175Kg | 174Kg |
Manufacturer catalogue checked 2026-09-28.
