Brand: Infitek | Category: Medical Equipment

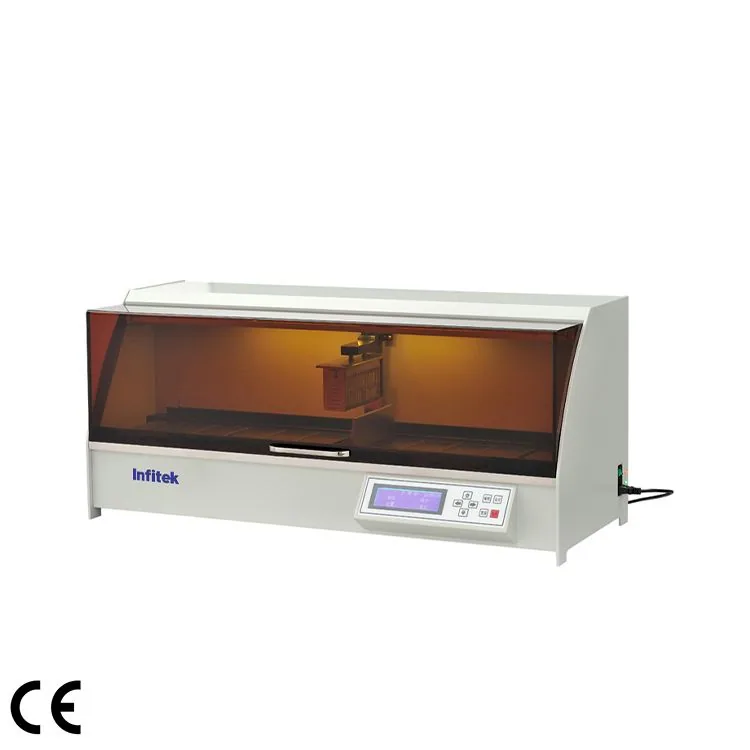

Infitek Automated Tissue Processor, Mini-type, TSP-1 is listed in VVON's histology & pathology equipment range for Bangladesh. Published models: TSP-1. Published details include Capacity of Each Cup: 750 ml; Dehydration basket capacity: 168*30*80 (mm) (40 dehydration cassettes). Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | TSP-1 |
|---|---|
| Number of Cups | 12 (9 for reagents, 3 for paraffin) |
| Capacity of Each Cup | 750 ml |
| Dehydration basket capacity | 168*30*80 (mm) (40 dehydration cassettes) |
| Single tank processing time | Single tank processing time |
| First tank | Adjustable from 0~99 hours 59 minutes |
| Other tanks | Adjustable from 0~23 hours 59 minutes |
| Wax tank temperature control range | RT – 80℃ |
| Programmable settings | 20 sets. |
| Temperature Control Precision | ±1℃ |
| Drainage time | Adjustable from 10~60 seconds, increment of 10 seconds.shake/drip above cup |
| Stirring frequency | Adjustable from 0-6 times/minute |
| Tissue protection tanks | Adjustable from 1~7 tanks |
| Working Voltage | AC220V±10% 50Hz (standard model) AC110V±10% 60Hz |
| Power Requirements | 500 W |
| Dimensions | 795×435×415 mm (W×D×H) |
| Weight | 50kg |
| Package Dimension (W*D*H)(mm) | 940*550*660 |
Manufacturer catalogue checked 2026-09-28.
