Brand: Infitek | Category: Medical Equipment

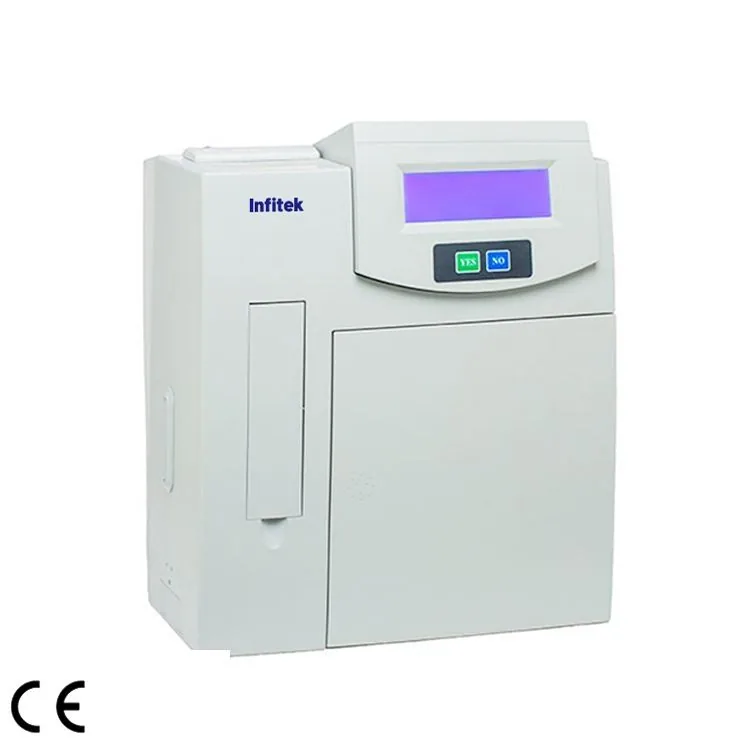

Infitek Electrolyte Analyzer, EA-5-40 is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: EA-5-40. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | EA-5-40 |
|---|---|
| Test item | K, Na, Cl, iCa, nCa, TCa, pH |
| Sample Types | Serum, Plasma, Whole blood, Cerebrospinal fluid and diluted urine |
| Sample consumption | 150μL |
| Measuring technology | Ion Selective Electrode |
| Analysis time | 40 seconds |
| Storage | Up to 10000 test results |
| Printer | Internal thermal printer |
| Ambient Conditions | 15-40 °C( (60-104 F), ≤ 85% humidity |
| Electricity | 220V±20V AC, 50Hz-60Hz, ≤120W |
| Dimension | 380mm*270mm*400mm |
| Package Dimension(W*D*H) | 510*420*580mm |
| Net weight | 7Kg |
| Gross Weight | 10.6Kg |
| Items | Measuring Range | Resolution | Measuring Precision (CV%) |
|---|---|---|---|
| K^(+) | 0.5-20.0 mmol/L | 0.01 mmol/L | ≤1.5% |
| Na^(+) | 30-200 mmol/L | 0.1 mmol/L | ≤1.5% |
| Cl^(–) | 20-200 mmol/L | 0.1 mmol/L | ≤1.5% |
| Ca^(2+) | 0.2-5.0 mmol/L | 0.01 mmol/L | ≤2.0% |
| pH | 4-9 pH | 0.01 pH | ≤0.5% |
Manufacturer catalogue checked 2026-09-28.
