Brand: Infitek | Category: Medical Equipment

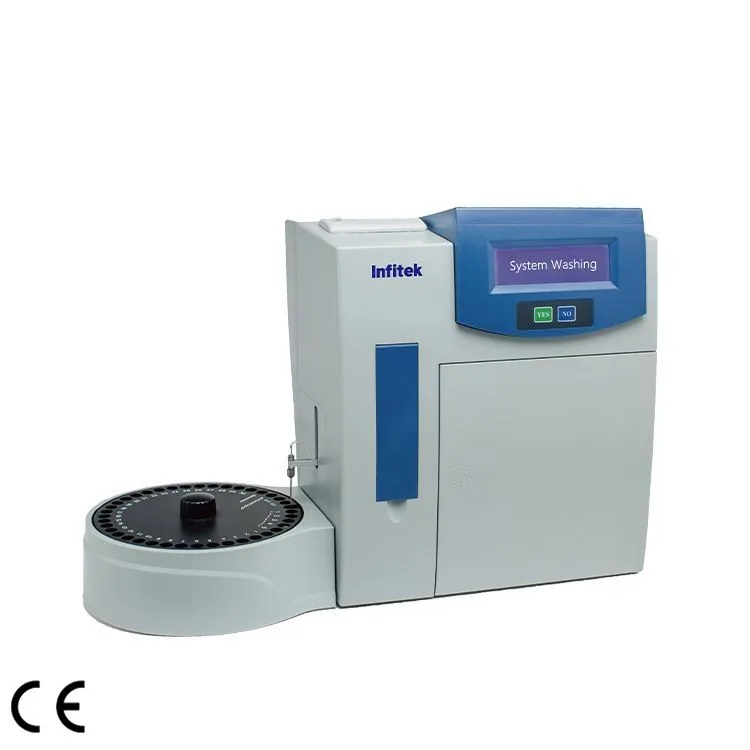

Infitek Electrolyte Analyzer, EA-5-25 is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: EA-5-25-A, EA-5-25-B, EA-5-25-D. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | EA-5-25-A | EA-5-25-B | EA-5-25-D |
|---|---|---|---|
| Test item | K、Na、Cl | K、Na、Cl、TCO2 、AG | K、Na、Cl、 iCa、nCa、TCa、pH 、TCO2 、AG |
| Sample Types | Serum, Plasma, Whole blood, Cerebrospinal fluid and diluted urine | Serum, Plasma, Whole blood, Cerebrospinal fluid and diluted urine | Serum, Plasma, Whole blood, Cerebrospinal fluid and diluted urine |
| Sample consumption | 60-300μL(Item 3 to item 11) | 60-300μL(Item 3 to item 11) | 60-300μL(Item 3 to item 11) |
| Measuring technology | Ion Selective Electrode | Ion Selective Electrode | Ion Selective Electrode |
| Analysis time | 25-40 seconds | 25-40 seconds | 25-40 seconds |
| Storage | Up to 10000 test results | Up to 10000 test results | Up to 10000 test results |
| Printer | Internal thermal printer | Internal thermal printer | Internal thermal printer |
| Ambient Conditions | 15-40 °C( (60-104 F), ≤ 85% humidity | 15-40 °C( (60-104 F), ≤ 85% humidity | 15-40 °C( (60-104 F), ≤ 85% humidity |
| Communication Interface | RS232 | RS232 | RS232 |
| Optional | Auto sampler : 39 positions (Including 5 emergency and 2 QC) | Auto sampler : 39 positions (Including 5 emergency and 2 QC) | Auto sampler : 39 positions (Including 5 emergency and 2 QC) |
| Electricity | 220V±20V AC, 50Hz-60Hz, ≤120W | 220V±20V AC, 50Hz-60Hz, ≤120W | 220V±20V AC, 50Hz-60Hz, ≤120W |
| Dimension | 380mm*270mm*400mm | 380mm*270mm*400mm | 380mm*270mm*400mm |
| Net weight | 7Kg | 7Kg | 7Kg |
| Items | Measuring Range | Resolution | Measurement accuracy（CV%） |
|---|---|---|---|
| K | 0.5—20.0 mmol/L | 0.01mmol/L | ≤1.0% |
| Na | 15—200 mmol/L | 0.1mmol/L | ≤1.0% |
| Cl | 15—200 mmol/L | 0.1mmol/L | ≤1.0% |
| Ca | 0.1—6.0 mmol/L | 0.01mmol/L | ≤1.0% |
| pH | 4—9 pH | 0.01pH | ≤0.5% |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
