Brand: Infitek | Category: Medical Equipment

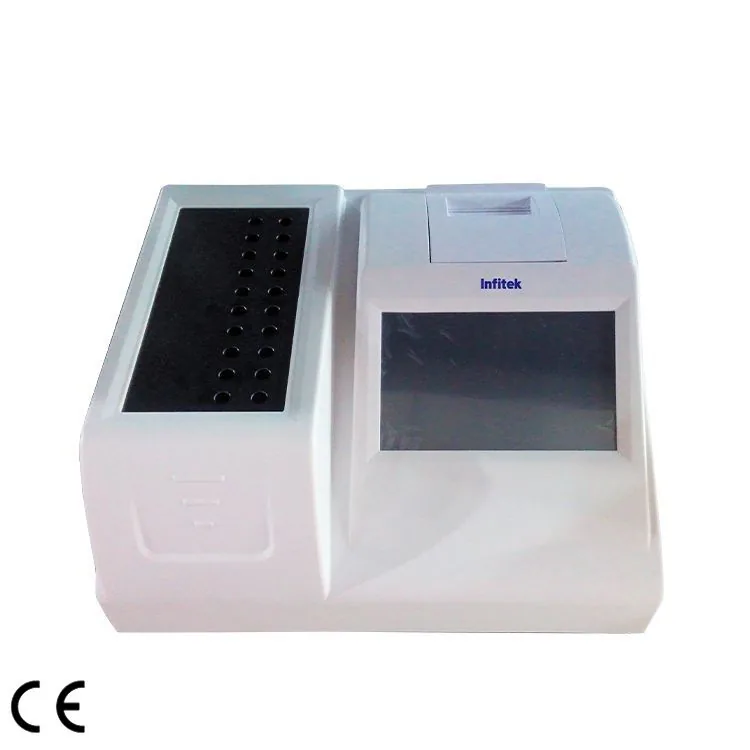

Infitek ESR analyzer, ESRA-20 is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published details include Loading capacity: 20 sample at same time; Measurement range: (1-140)mm/h. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Item | ESR analyzer, ESRA-20 |
|---|---|
| Field of application | Erythrocyte sedimentation rate analysis |
| Measuring principle | Infrared sensor |
| Analysis result | Westergren ESR value (mm/hr) |
| Throughput | Up to 40 samples per hour |
| Reading channels | 20 |
| Loading capacity | 20 sample at same time |
| Loading pattern | Random |
| Measuring time | 30 minutes or 60 minutes selectable |
| Sample interval | 3 minutes |
| Measurement range | (1-140)mm/h |
| Temperature compensation | Refer to 18°C automatically (selectable) |
| Reading resolution | ±0.1mm |
| Result resolution | 1mm/1h, 1mm/2h |
| Blood level range | 50mm~64mm |
| Display | Color LCD screen |
| Input | Touch screen |
| Interface | RS-232 serial port |
| Internal thermal recorder | |
| Storage | 4,000 results |
| Power supply | AC100-240V, 50-60Hz, 50W |
| Operation conditions | Temperature 5C°~40°C Humidity ≤80% |
| Dimension | 365mm×300mm×180mm(L×W×H) |
| Net weight | 11Kg |
Manufacturer catalogue checked 2026-09-28.
