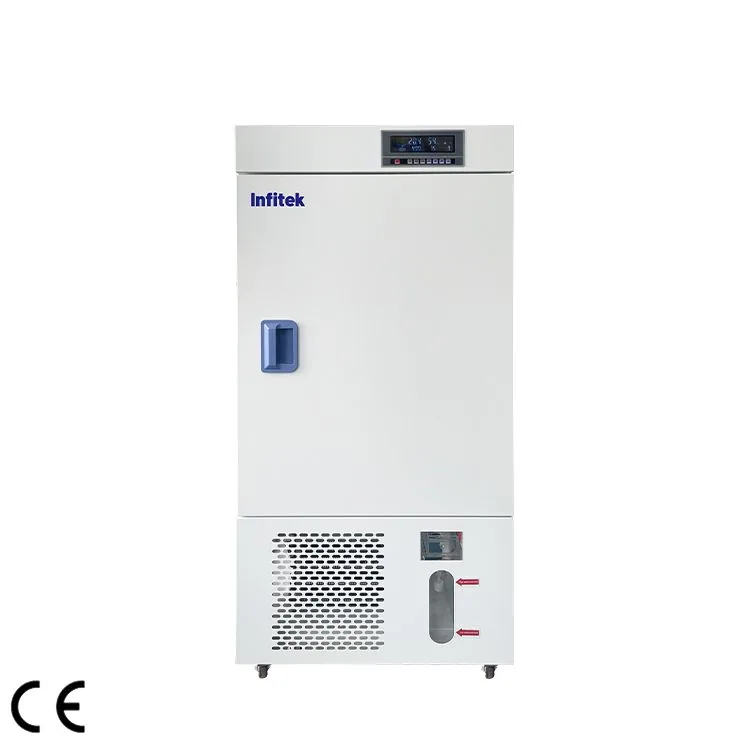

Infitek Constant Temp. & Humidity Chamber, ICB-HY Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Constant Temp. & Humidity Chamber, ICB-HY Series is listed in VVON's laboratory incubators & growth chambers range for Bangladesh. Published models: ICB-H180Y, ICB-H290Y, ICB-H400Y, ICB-H520Y. Compare chamber capacity and required temperature, atmosphere, humidity or agitation. For a quotation, send the application, working volume, temperature and atmosphere requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | ICB-H180Y | ICB-H290Y | ICB-H400Y | ICB-H520Y |
|---|---|---|---|---|
| Capacity (L) | 173 | 288 | 400 | 516 |
| Circulation Mode | Forced convection | Forced convection | Forced convection | Forced convection |
| Dimension (W*D*H) / Internal (mm) | 550*450*700 | 600*600*800 | 800*550*910 | 800*710*910 |
| Dimension (W*D*H) / External (mm) | 700*840*1590 | 800*990*1690 | 1000*910*1800 | 1000*1070*1800 |
| Temperature / Range (℃) | 0~65 | 0~65 | 0~65 | 0~65 |
| Temperature / Uniformity (℃) | ±1 | ±1 | ±1 | ±1 |
| Temperature / Fluctuation (℃) | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Temperature / Display Accuracy | 0.1 | 0.1 | 0.1 | 0.1 |
| Temperature / Control Accuracy | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Humidity / Range | 40%RH ~ 95%RH (chamber temperature＞10°C) | 40%RH ~ 95%RH (chamber temperature＞10°C) | 40%RH ~ 95%RH (chamber temperature＞10°C) | 40%RH ~ 95%RH (chamber temperature＞10°C) |
| Humidity / Fluctuation | ±3%RH | ±3%RH | ±3%RH | ±3%RH |
| Humidity / Display Accuracy | 1%RH | 1%RH | 1%RH | 1%RH |
| Humidity / Control Accuracy | ±1%RH | ±1%RH | ±1%RH | ±1%RH |
| Humidification Method | Built-in electric heating humidification water tank | Built-in electric heating humidification water tank | Built-in electric heating humidification water tank | Built-in electric heating humidification water tank |
| Controller | PID temperature controller, 24-segment program | PID temperature controller, 24-segment program | PID temperature controller, 24-segment program | PID temperature controller, 24-segment program |
| Display | LCD | LCD | LCD | LCD |
| Shelves | 3 | 3 | 3 | 3 |
| Alarm Types | Over-temperature alarm, under-temperature alarm, temperature probe failure alarm, humidity probe failure alarm | Over-temperature alarm, under-temperature alarm, temperature probe failure alarm, humidity probe failure alarm | Over-temperature alarm, under-temperature alarm, temperature probe failure alarm, humidity probe failure alarm | Over-temperature alarm, under-temperature alarm, temperature probe failure alarm, humidity probe failure alarm |
| Electricity / Voltage/Frequency | 1Ø, 220V/50Hz | 1Ø, 220V/50Hz | 1Ø, 220V/50Hz | 1Ø, 220V/50Hz |
| Electricity / Consumption (W) | 2000 | 2000 | 3000 | 3000 |
| N.W. / G.W. (kg) | 165/209 | 203/256 | 218/278 | 237/297 |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
