Brand: Infitek | Category: Scientific & Laboratory Equipment

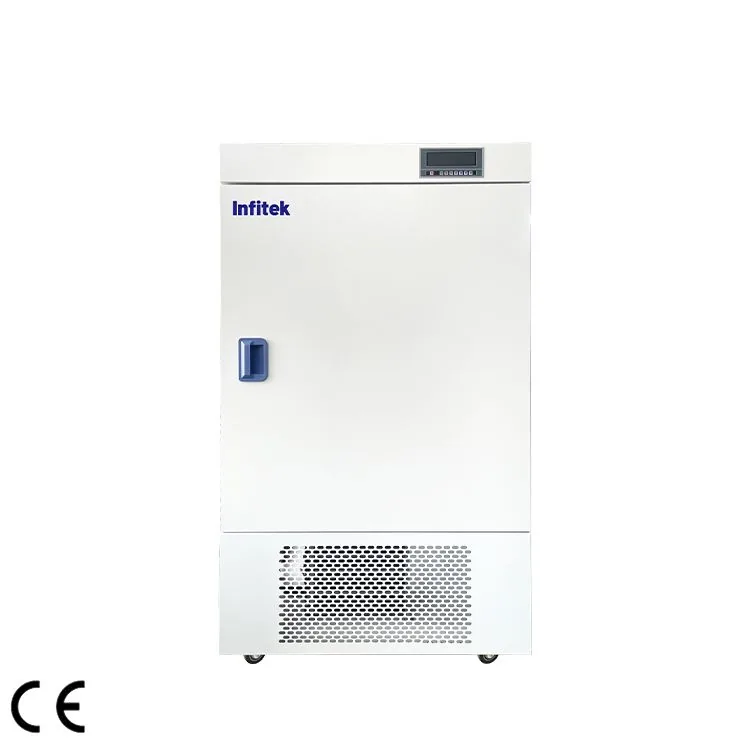

Infitek Illumination Chamber, ICB-L180B, ICB-L290B, ICB-L400B, ICB-L520B is listed in VVON's laboratory incubators & growth chambers range for Bangladesh. Published models: ICB-L180B, ICB-L290B, ICB-L400B, ICB-L520B. Compare chamber capacity and required temperature, atmosphere, humidity or agitation. For a quotation, send the application, working volume, temperature and atmosphere requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | ICB-L180B | ICB-L290B | ICB-L400B | ICB-L520B |
|---|---|---|---|---|
| Capacity (L) | 173 | 288 | 400 | 516 |
| Circulation Mode | Forced convection | Forced convection | Forced convection | Forced convection |
| Dimension (W*D*H) / Internal (mm) | 550*450*700 | 600*600*800 | 800*550*910 | 800*710*910 |
| Dimension (W*D*H) / External (mm) | 700*840*1590 | 800*990*1690 | 1000*910*1800 | 1000*1070*1800 |
| Temperature / Range (℃) | With lighting:10~65; Without lighting: 0~65 | With lighting:10~65; Without lighting: 0~65 | With lighting:10~65; Without lighting: 0~65 | With lighting:10~65; Without lighting: 0~65 |
| Temperature / Uniformity (℃) | ±1 | ±1 | ±1 | ±1 |
| Temperature / Fluctuation (℃) | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Temperature / Display Accuracy | 0.1 | 0.1 | 0.1 | 0.1 |
| Temperature / Control Accuracy | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Illumination | 6000LX single-sided illumination, LED light source | 6000LX single-sided illumination, LED light source | 6000LX single-sided illumination, LED light source | 6000LX single-sided illumination, LED light source |
| Illumination Control | 5-level adjustable | 5-level adjustable | 5-level adjustable | 5-level adjustable |
| Controller | PID temperature controller, 24-segment program | PID temperature controller, 24-segment program | PID temperature controller, 24-segment program | PID temperature controller, 24-segment program |
| Display | LCD | LCD | LCD | LCD |
| Shelves | 3 | 3 | 3 | 3 |
| Alarm Types | Over-temperature alarm, temperature probe damage alarm | Over-temperature alarm, temperature probe damage alarm | Over-temperature alarm, temperature probe damage alarm | Over-temperature alarm, temperature probe damage alarm |
| Electricity / Voltage/Frequency | 1Ø, 220V/50Hz | 1Ø, 220V/50Hz | 1Ø, 220V/50Hz | 1Ø, 220V/50Hz |
| Electricity / Consumption (W) | 1000 | 1000 | 1500 | 1500 |
| N.W. / G.W. (kg) | 165/209 | 203/256 | 218/278 | 237/297 |
Manufacturer catalogue checked 2026-09-28.
