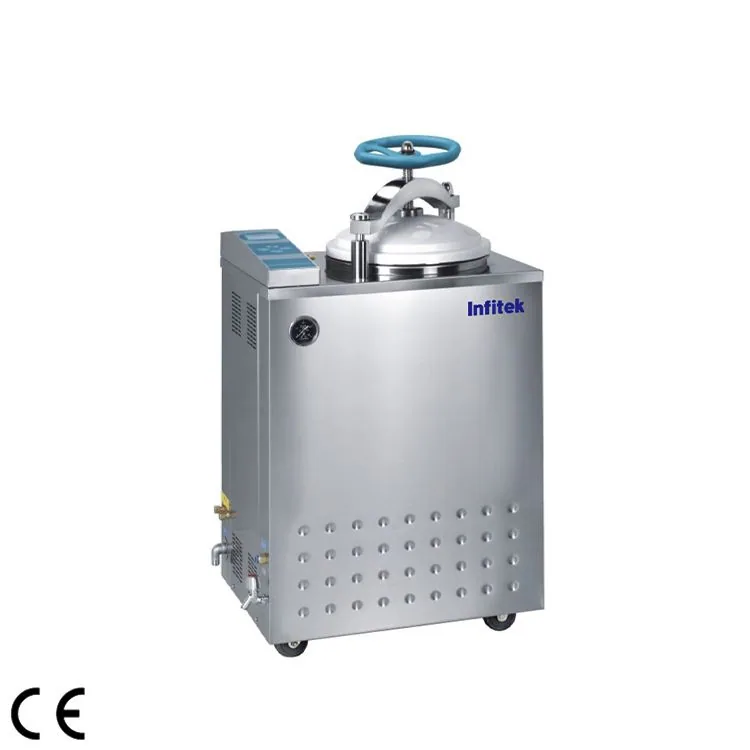

Infitek Class N Autoclave, STV-75HG
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Class N Autoclave, STV-75HG is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Published models: STV-75HG. Published details include Volume: 75L(φ400*600mm); Temperature Range: 105~134℃. Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | STV-75HG |
|---|---|
| Volume | 75L(φ400*600mm) |
| Design Pressure | 0.3MPa |
| Design Temperature | 150℃ |
| Max.Working Pressure | 0.25MPa |
| Max.Working Temperature | 138℃ |
| Temperature Uniformity | ≤±1℃ |
| Temperature Range | 105~134℃ |
| Timing Range | 0~99min or 0~99hour59min |
| Electricity | AC 220V/50Hz |
| Power | 3×1.5kW |
| External Dimension | 750*510*1250 |
| (W*D*H) | mm |
| N.W. / G.W. | 111kg/137kg |
| Package Dimension (W*D*H) | 780*600*1420mm |
Manufacturer catalogue checked 2026-09-28.
