Brand: Infitek | Category: Scientific & Laboratory Equipment

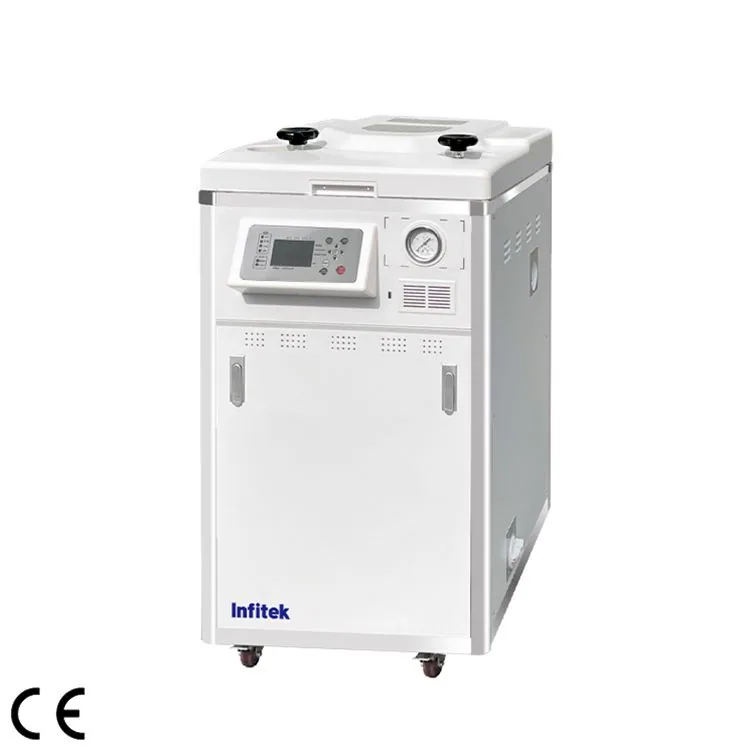

Infitek Class N Autoclave, STV-JLA Series is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Published models: STV-J60LA, STV-J80LA. Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | STV-J60LA | STV-J80LA |
|---|---|---|
| Volume | 60L | 80L |
| Configuration | Automatic | Automatic |
| Sterilization Chamber Dimension | φ355*550mm | φ355*700mm |
| Basket Dimension | 335*360 mm | 330*190mm, 330*360mm |
| Pot Wall Thickness | 2.0mm (Reference) | 2.0mm (Reference) |
| Temp. Setting Range | 50~134℃ | 50~134℃ |
| Time Setting Range | 0-99h | 0-99h |
| Max. Design Temperature | 138℃ | 138℃ |
| Rated Working Pressure | 0.217MPa | 0.217MPa |
| Design Pressure | 0.24MPa | 0.24MPa |
| Electricity | 220V/50Hz | 220V/50Hz |
| Power | 3.5kW | 3.5kW |
| External Dimension | 530*620*1005mm | 530*620*1155mm |
| Gross Weight | 102kg | 114kg |
| Package Dimension | 790*670*1160mm | 790*670*1320mm |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
