Brand: Infitek | Category: Scientific & Laboratory Equipment

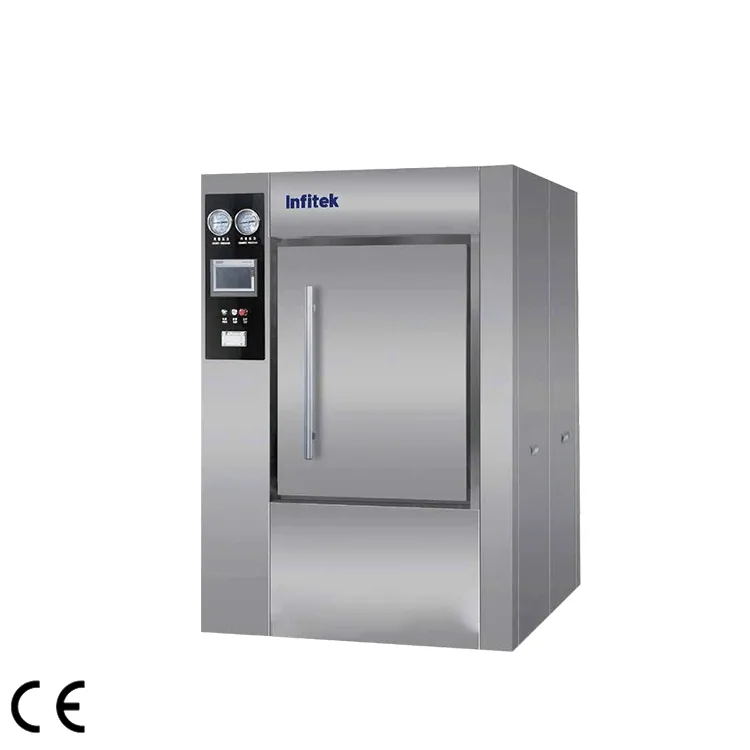

Infitek Horizontal Steam Sterilizer, STH-NS Series is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Published models: STH-NS150DM/ STH-NS150SM, STH-NS200DM/ STH-NS200SM, STH-NS250DM/ STH-NS250SM, STH-NS360DM/ STH-NS360SM, STH-NS600DM/ STH-NS600SM, STH-NS800DM/ STH-NS800SM. Compare the remaining models in the specification tables. Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Design Pressure | -0.1~0.3MPa | Temperature Uniformity | ≤±2.0℃ |
|---|---|---|---|
| Design Temperature | 150℃ | Water Source Pressure | 0.1~0.2MPa |
| Working Pressure | 0.23MPa | Compressed Air Pressure | 0.4~0.7MPa |
| Working Temperature | 115~138℃ | External Steam Pressure | 0.3~0.6MPa |
| Vacuum Level | -0.086MPa | Power Supply | 3-phase 5-wire, AC 380V/50Hz |
| Model | Capacity (L) | External Dimensions (L*W*H) (mm) | Chamber Dimensions (L*W*H) (mm) | Steam Consumption (kg) | Water Consumption (kg) | Power (kW) | Gross Weight (Single/Double Door) (kg) | Net Weight (Single/Double Door) (kg) |
|---|---|---|---|---|---|---|---|---|
| STH-NS150DM/ STH-NS150SM | 150 | 950x1120x1760 | 700x450x480 | ≤14 | ≤190 | ≤23 | 820/850 | 720/750 |
| STH-NS200DM/ STH-NS200SM | 200 | 1175x1120x1760 | 925x450x480 | ≤16 | ≤190 | ≤23 | 890/920 | 770/800 |
| STH-NS250DM/ STH-NS250SM | 250 | 1030x1300x1900 | 780x600x600 | ≤18 | ≤200 | ≤35 | 990/1020 | 840/870 |
| STH-NS360DM/ STH-NS360SM | 360 | 1250x1300x1900 | 1000x600x600 | ≤25 | ≤200 | ≤35 | 1090/1130 | 910/950 |
| STH-NS600DM/ STH-NS600SM | 600 | 1440x1310x1900 | 1190x610x910 | ≤30 | ≤210 | ≤50 | 1440/1490 | 1240/1290 |
| STH-NS800DM/ STH-NS800SM | 800 | 1700x1310x1900 | 1450x610x910 | ≤35 | ≤200 | ≤5.0 | 1590/1650 | 1405/1465 |
| STH-NS1000DM/ STH-NS1000SM | 1000 | 1500x1440x1950 | 1250x680x1180 | ≤42 | ≤200 | ≤5.0 | 1680/1730 | 1550/1610 |
| STH-NS1200DM/ STH-NS1200SM | 1200 | 1700x1440x1950 | 1450x680x1180 | ≤50 | ≤200 | ≤6.0 | 1870/1950 | 1650/1730 |
| STH-NS1500DM/ STH-NS1500SM | 1500 | 2100x1440x1950 | 1850x680x1180 | ≤60 | ≤200 | ≤6.0 | 2180/2250 | 1900/1975 |
Manufacturer catalogue checked 2026-09-28.
