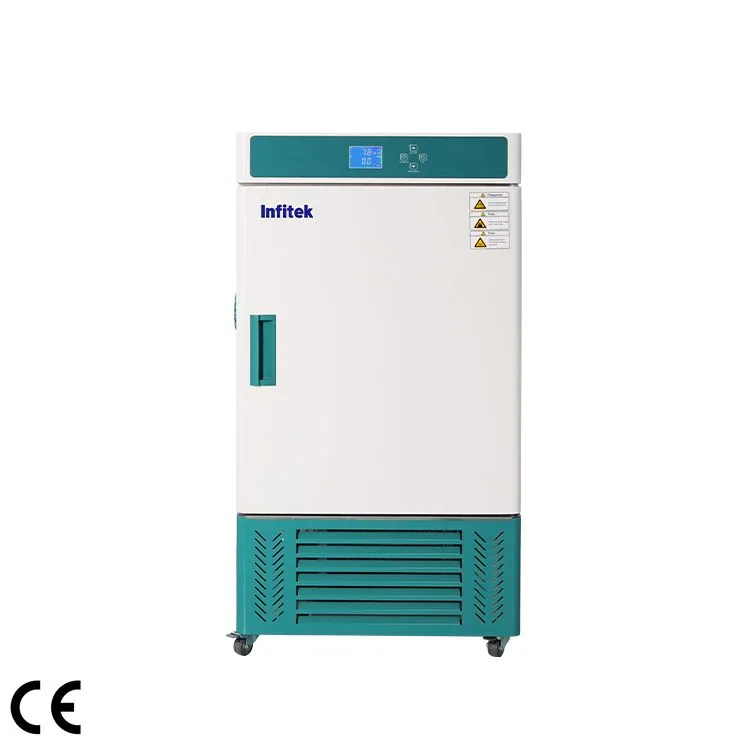

Infitek BOD Incubator, ICB-E Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek BOD Incubator, ICB-E Series is listed in VVON's laboratory incubators & growth chambers range for Bangladesh. Published models: ICB-B70E, ICB-B150E, ICB-B250E, ICB-B70, ICB-B150, ICB-B250. Compare chamber capacity and required temperature, atmosphere, humidity or agitation. For a quotation, send the application, working volume, temperature and atmosphere requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | ICB-B70E | ICB-B150E | ICB-B250E |
|---|---|---|---|
| Model | ICB-B70 | ICB-B150 | ICB-B250 |
| Cycle Mode | Forced convection | Forced convection | Forced convection |
| Function / Temp. Range | 0～65℃ | 0～65℃ | 0～65℃ |
| Function / Temp. Resolution Ratio | 0.1℃ | 0.1℃ | 0.1℃ |
| Function / Temp. Motion | High Temp.: ±0.5℃ Low Temp.: ±1℃ | High Temp.: ±0.5℃ Low Temp.: ±1℃ | High Temp.: ±0.5℃ Low Temp.: ±1℃ |
| Function / Temp. Uniformity | ±1.5℃ | ±1.5℃ | ±1.5℃ |
| Structure / Inner Chamber | Mirror Stainless Steel | Mirror Stainless Steel | Mirror Stainless Steel |
| Structure / Outside Material | Cold rolling steel electrostatic spraying exterior | Cold rolling steel electrostatic spraying exterior | Cold rolling steel electrostatic spraying exterior |
| Structure / Insulation Layer | Polyurethane | Polyurethane | Polyurethane |
| Structure / Heater | Stainless steel heater | Stainless steel heater | Stainless steel heater |
| Structure / Power Rating | 0.8kW | 1.0kW | 1.2kW |
| Structure / Compressor | Air-cooled hermetic compressor | Air-cooled hermetic compressor | Air-cooled hermetic compressor |
| Structure / Cryogen | R134a | R134a | R134a |
| Structure / Defrost Structure | Automatic control intelligent defrosting | Automatic control intelligent defrosting | Automatic control intelligent defrosting |
| Structure / Test Hole | Inner diameter 43mm(one) | Inner diameter 43mm(one) | Inner diameter 43mm(one) |
| Structure / Controlled External Power Supply | Outer universal socket (one), inner waterproof socket(one) | Outer universal socket (one), inner waterproof socket(one) | Outer universal socket (one), inner waterproof socket(one) |
| Structure / Temp. Setting Mode | Touch button setting | Touch button setting | Touch button setting |
| Structure / Temp. Display Mode | Measuring temperature: LCD upper screen; setting temperature: the lower row | Measuring temperature: LCD upper screen; setting temperature: the lower row | Measuring temperature: LCD upper screen; setting temperature: the lower row |
| Structure / Timer | E model：0～99.9h Without E model：0～99.9h×10 segment(with timing wait function) | E model：0～99.9h Without E model：0～99.9h×10 segment(with timing wait function) | E model：0～99.9h Without E model：0～99.9h×10 segment(with timing wait function) |
| Structure / Operation Function | E model：Fixed value operation、timing function, auto stop. | E model：Fixed value operation、timing function, auto stop. | E model：Fixed value operation、timing function, auto stop. |
| Structure / Operation Function | Without E model：Program operation | Without E model：Program operation | Without E model：Program operation |
| Structure / Sensor | PT100 | PT100 | PT100 |
| Structure / Additional Function | E model：LED light, Deviation correction, Menu key lock, Power failure parameter memory | E model：LED light, Deviation correction, Menu key lock, Power failure parameter memory | E model：LED light, Deviation correction, Menu key lock, Power failure parameter memory |
| Structure / Additional Function | Without E model: Loop self diagnosis, sensor fault alarm | Without E model: Loop self diagnosis, sensor fault alarm | Without E model: Loop self diagnosis, sensor fault alarm |
| Safety Device | Over temperature alarm | Over temperature alarm | Over temperature alarm |
| Specification / Inner Chamber Size(W×L×H)(mm) | 415×350×500 | 490*400*750 | 500*500*950 |
| Specification / Exterior Size (W×L×H)(mm) | 571×591×1051 | 646*641*1301 | 656*741*1501 |
| Specification / Packing Size (W×L×H)(mm) | 676×680×1235 | 751*730*1490 | 761*830*1690 |
| Specification / Volume | 70L | 150L | 250L |
| Specification / Load per rack | 15kg | 15kg | 15kg |
| Specification / Shelf Number | 5 | 9 | 12 |
| Specification / Shelf Space | 60mm | 60mm | 60mm |
| Specification / Power Supply Current Rating | AC220V/2.3A | AC220V/3.6A | AC220V/5.5A |
| Specification / NW/GW (kg） | 69/92 | 86/114 | 100/139 |
| Accessory / Shelf | 2 | 2 | 2 |
| Accessory / Shelf Frame | 4 | 4 | 4 |
| Optional Accessories | Shelf, touch screen controller, RS485 interface, printer, remote control, USB data storage | Shelf, touch screen controller, RS485 interface, printer, remote control, USB data storage | Shelf, touch screen controller, RS485 interface, printer, remote control, USB data storage |
Manufacturer catalogue checked 2026-09-28.
