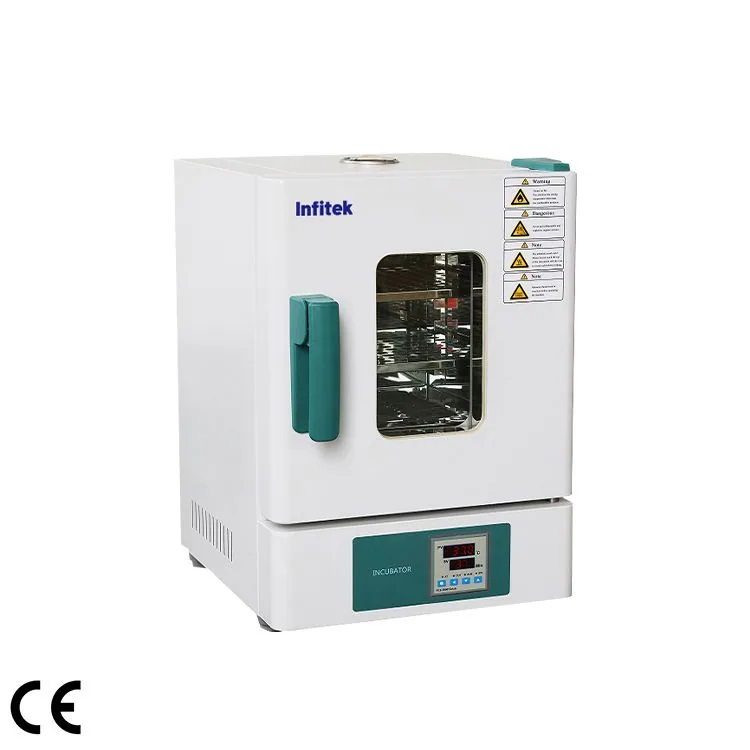

Infitek Heating Incubator, ICB-18 Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Heating Incubator, ICB-18 Series is listed in VVON's laboratory incubators & growth chambers range for Bangladesh. Published models: ICB-18E /ICB-18. Published details include Function / Temp. Range: RT+5-65℃; Specification / Volume: 18L. Compare chamber capacity and required temperature, atmosphere, humidity or agitation. For a quotation, send the application, working volume, temperature and atmosphere requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | ICB-18E /ICB-18 |
|---|---|
| Cycle Mode | Natural convection |
| Function / Temp. Range | RT+5-65℃ |
| Function / Temp. Resolution Ratio | 0.1℃ |
| Function / Temp. Motion | ±0.5℃ |
| Function / Temp. Uniformity | ±2.0℃ |
| Structure / Inner Chamber | Without; |
| Structure / Inner Chamber | Without E model: mirror stainless steel |
| Structure / Inner Chamber | With E model: High strengthgalvanized sheet |
| Structure / Outer Shell | Cold rolling steel electrostatic spraying exterior |
| Structure / Insulation layer | High quaility rock wool board (with CE) |
| Structure / Heater | Nickel chromium alloy heating wire |
| Structure / Power rating | 0.18kW |
| Structure / Exhaust hole | φ28mm top (with function of test hole) |
| Controller / Temp. control mode | Two temperature section intelligent PID |
| Controller / Temp. set mode | Touch button setting |
| Controller / Temp. displaymode | Measuring temperature: display on the four digital tubes upper row;; Setting temperature: display on the lower row |
| Controller / Timer | 0-9999min(with timing wait function) |
| Controller / Operation function | Fixed temperature operation, timing function, auto stop |
| Controller / Additional function | Sensor deviation correction, temperature over shoot self-tuning,; internal parameter locking, power-off parameter memory |
| Controller / Sensor | PT100 |
| Safety device | Over temperature sound-light alarm |
| Specification / Inner Chamber size(W*L*H)(mm) | 260*260*260 |
| Specification / Exterior size(W*L*H)(mm) | 380*455*568 |
| Specification / Packing size(W*L*H)(mm) | 500*530*657 |
| Specification / Volume | 18L |
| Specification / Shelf number | 6 |
| Specification / Load per rack | 15kg |
| Specification / Shelf space | 29mm |
| Specification / (50/60HZ)Current rating | AC220V/0.8A |
| Specification / NW/GW (kg） | 27/35 |
| Accessory / Shelf | 2 |
| Optional Accessories | Shelf, Programmable controller |
Manufacturer catalogue checked 2026-09-28.
