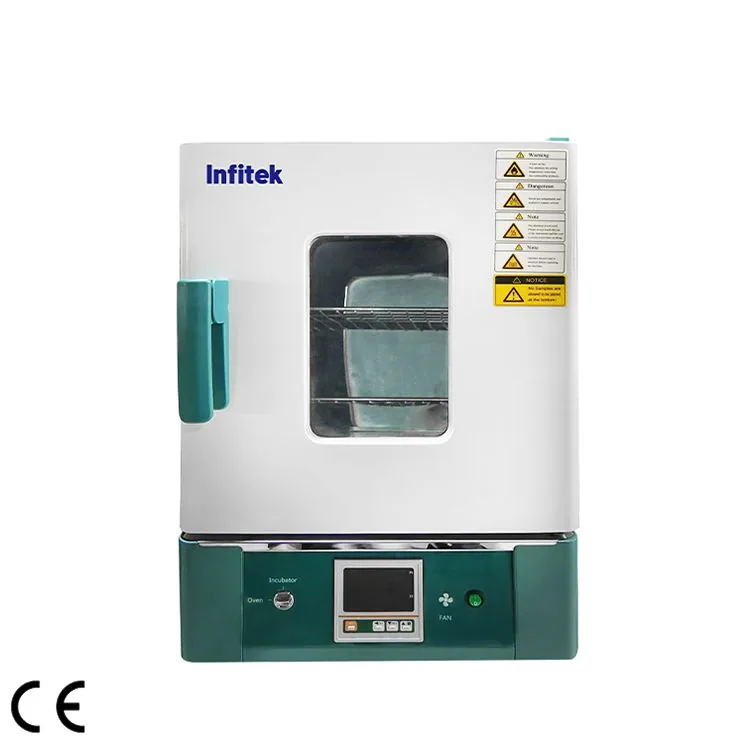

Infitek Dual Purpose (Oven/Incubator), DOI-E Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Dual Purpose (Oven/Incubator), DOI-E Series is listed in VVON's laboratory incubators & growth chambers range for Bangladesh. Published models: DOI-30E, DOI-45E, DOI-65E, DOI-85E, DOI-125E, DOI-230E. Compare chamber capacity and required temperature, atmosphere, humidity or agitation. For a quotation, send the application, working volume, temperature and atmosphere requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | DOI-30E | DOI-45E | DOI-65E | DOI-85E | DOI-125E | DOI-230E |
|---|---|---|---|---|---|---|
| Capacity(L) | 30 | 45 | 65 | 85 | 125 | 230 |
| Circulation Mode | Forced convection | Forced convection | Forced convection | Forced convection | Forced convection | Forced convection |
| Dimension(W*D*H) / Internal (mm) | 310*310*310 | 350*350*350 | 400*360*450 | 450*420*450 | 500*450*550 | 600*500*750 |
| Dimension(W*D*H) / External (mm) | 460*510*695 | 500*550*735 | 550*550*840 | 590*610*830 | 636*680*915 | 730*680*1250 |
| Temperature / Range (℃) | Incubator:RT+5~80℃ , Drying oven:80~300℃ | Incubator:RT+5~80℃ , Drying oven:80~300℃ | Incubator:RT+5~80℃ , Drying oven:80~300℃ | Incubator:RT+5~80℃ , Drying oven:80~300℃ | Incubator:RT+5~80℃ , Drying oven:80~300℃ | Incubator:RT+5~80℃ , Drying oven:80~300℃ |
| Temperature / Fluctuation (℃) | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
| Temperature / Resolution (℃) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Temperature / Uniformity (℃) | Incubator:±1.0℃ Drying oven:±2.5% | Incubator:±1.0℃ Drying oven:±2.5% | Incubator:±1.0℃ Drying oven:±2.5% | Incubator:±1.0℃ Drying oven:±2.5% | Incubator:±1.0℃ Drying oven:±2.5% | Incubator:±1.0℃ Drying oven:±2.5% |
| Temperature / Sensor | PT100 | PT100 | PT100 | PT100 | PT100 | PT100 |
| Controller | PID | PID | PID | PID | PID | PID |
| Display | Digital LED | Digital LED | Digital LED | Digital LED | Digital LED | Digital LED |
| Timer | 0~9999min(with timing wait function) | 0~9999min(with timing wait function) | 0~9999min(with timing wait function) | 0~9999min(with timing wait function) | 0~9999min(with timing wait function) | 0~9999min(with timing wait function) |
| Material / Internal | Mirror Stainless Steel | Mirror Stainless Steel | Mirror Stainless Steel | Mirror Stainless Steel | Mirror Stainless Steel | Mirror Stainless Steel |
| Material / External | Cold rolled steel electrostatic spraying exterior | Cold rolled steel electrostatic spraying exterior | Cold rolled steel electrostatic spraying exterior | Cold rolled steel electrostatic spraying exterior | Cold rolled steel electrostatic spraying exterior | Cold rolled steel electrostatic spraying exterior |
| Shelves(Standard / Max ) | 2 /5 | 2 /6 | 2 /8 | 2/ 8 | 2/ 11 | 2/ 17 |
| Test Hole(Standard) | Φ35mm top with function of test hole | Φ35mm top with function of test hole | Φ35mm top with function of test hole | Φ35mm top with function of test hole | Φ35mm top with function of test hole | Φ35mm top with function of test hole |
| Safety Device | Over temperaure visible& audible alarm | Over temperaure visible& audible alarm | Over temperaure visible& audible alarm | Over temperaure visible& audible alarm | Over temperaure visible& audible alarm | Over temperaure visible& audible alarm |
| Electricity / Voltage/Frequency | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz |
| Electricity / Consumption (W) | 800 | 1200 | 1600 | 2000 | 2300 | 3000 |
| N.W./G.W. (kg) | 33/42.5 | 37/43 | 44/49 | 50/56 | 60/66 | 94/120 |
| Package Dimension (W*D*H) (mm) | 540*580*870 | 630*600*910 | 640*630*1210 | 680*685*1000 | 710*730*1100 | 857*885*1287 |
| Optional | Spare shelf | Spare shelf | Spare shelf | Spare shelf | Spare shelf | Spare shelf |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
