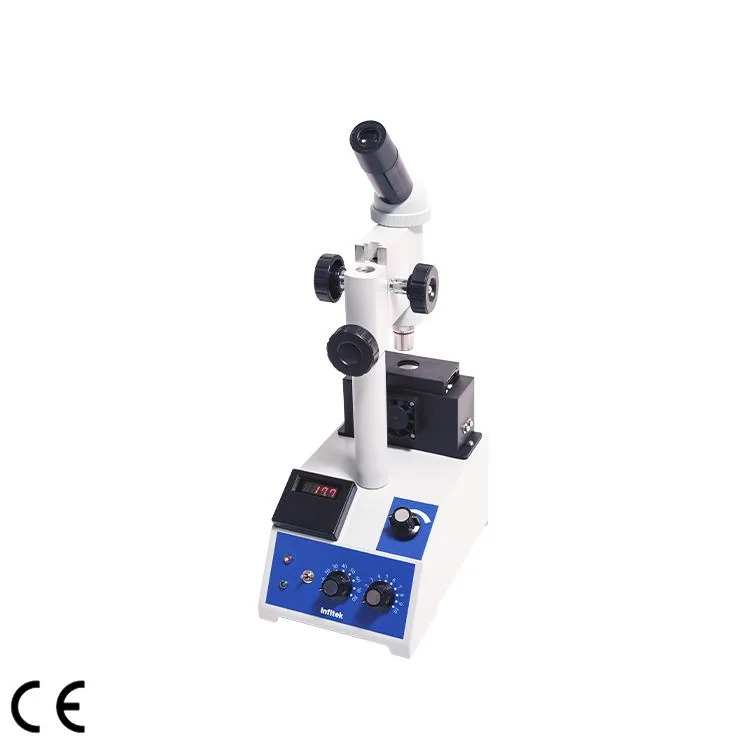

Infitek Melting point Apparatus with Microscope, MTP-4 Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Melting point Apparatus with Microscope, MTP-4 Series is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: MTP-4B, MTP-4A, MTP-4. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Parameters/Model | MTP-4B | MTP-4A | MTP-4 |
|---|---|---|---|
| Measuring range | Room temperature-320℃ | Room temperature-320℃ | Room temperature-320℃ |
| Measuring mode | Visual | Visual | Visual |
| Sample loading | Capillary/Hot table | Capillary/Hot table | Capillary/Hot table |
| Repeatability | ≤200℃:±1℃;>200℃:±2℃ | ≤200℃:±1℃;>200℃:±2℃ | ≤200℃:±1℃;>200℃:±2℃ |
| Resolution | 0.1℃ | 0.1℃ | 1℃ |
| Observation mode | Binocular Stereoscopic microscope | Monocular microscope | Monocular microscope |
| Optic magnification | 40X-100X Continuous zoom | 10X(Eye lens) 4X(Objective lens) | 10X(Eye lens) 4X(Objective lens) |
| Power supply | 220V±22V,50Hz±1Hz,80w | 220V±22V,50Hz±1Hz,80w | 220V±22V,50Hz±1Hz,80w |
| Overall Dimensions | 300mm ×220mm×440mm | 300mm ×220mm×440mm | 300mm ×220mm×440mm |
| Weight(Gross) | 4 kg | 3.5 kg | 3.5 kg |
Manufacturer catalogue checked 2026-09-28.
