Brand: Infitek | Category: Medical Equipment

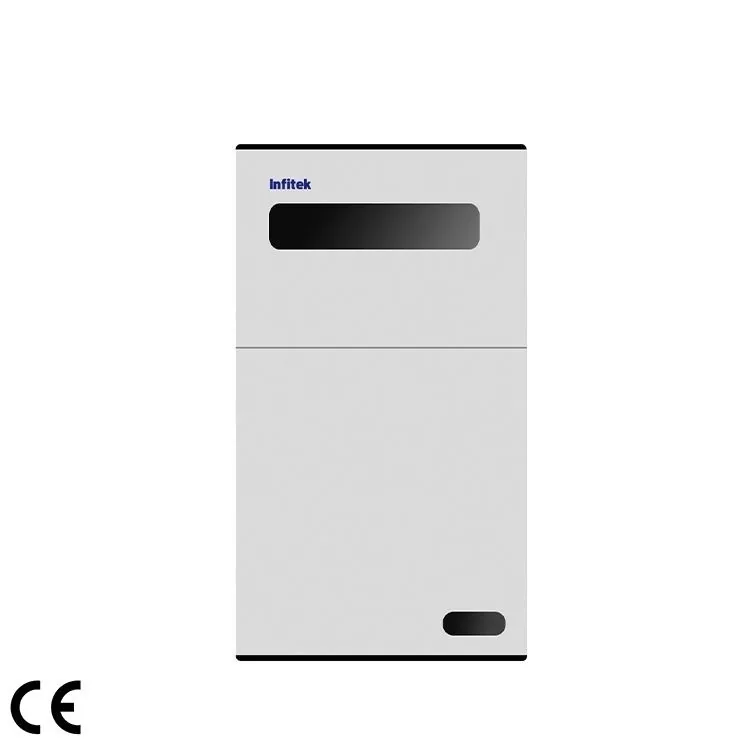

Infitek Automatic Chemiluminescence Gel Imaging System, GEP-GD900 is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: GEP-GD900. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | GEP-GD900 |
|---|---|
| Pixel | 12.0MP |
| Cooling Temperature | -65°C |
| QE | High QE: >95% |
| Pixel Size | 4.63μm×4.63μm |
| Binning | 1×1 2×2 4×4··· 8×8 |
| Exposure | 1ms-60min |
| Bit | 16 bit (0-65535) |
| OD | ≥4.8OD |
| Electric Lens | F0.95 autofocus lens, optional F0.8 autofocus lens |
| UV Transmission | 302nm, Area:21*21cm |
| White light source | Double layer LED reflection on top and bottom, LED white light self luminous sample board |
| UV Reflection | Optional |
| Filter Wheel | 2-position filter wheel standard (others optional) |
| Filter Lens | 590nm standard (others optional) |
| Imaging Area | 28*21cm |
| Timed Shutdown | 1~ 60min |
| Dimension | 380*405*695mm |
| N.W./G.W. | 35.8kg/38.5kg |
| Shipping Dimension | 500*525*825mm |
Manufacturer catalogue checked 2026-09-28.
