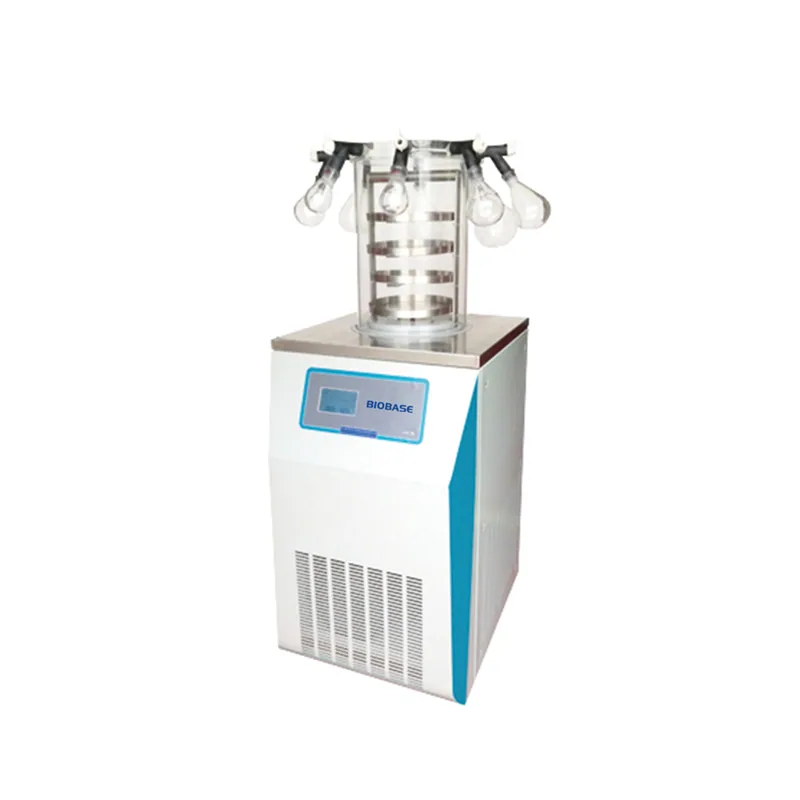

BIOBASE Vertical Freeze Dryer
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Vertical Freeze Dryer is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: BK-FD18S(-56/-80), BK-FD18P(-56/-80), BK-FD18T(-56/-80), BK-FD18PT(-56/-80). Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-FD18S(-56/-80) | BK-FD18P(-56/-80) | BK-FD18T(-56/-80) | BK-FD18PT(-56/-80) |
|---|---|---|---|---|
| Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering; chamber with 8 port manifold |
| Freeze Drying Area | 0.18m² | 0.18m² | 0.09m² | 0.09m² |
| Tray | 4pcs | 4pcs | 3pcs | 3pcs |
| Height Between Trays | 70mm | 70mm | 70mm | 70mm |
| Cold Trap Temperature | ≤-56℃/-80℃(Optional) | ≤-56℃/-80℃(Optional) | ≤-56℃/-80℃(Optional) | ≤-56℃/-80℃(Optional) |
| Cold Trap Capacity | 23L | 23L | 23L | 23L |
| Cold Trap Size (Dr*H) | Φ270*400mm | Φ270*400mm | Φ270*400mm | Φ270*400mm |
| Vacuum Degree | <5Pa | <5Pa | <5Pa | <5Pa |
| Water Capture Capacity | 6kg/24h | 6kg/24h | 6kg/24h | 6kg/24h |
| Tray Size (D*H) | Φ240*18mm | Φ240*18mm | Φ200*18mm | Φ200*18mm |
| Freeze Drying Time | 18-36h | 18-36h | 18-36h | 18-36h |
| Loading Capacity/Shelf (Liquid) | 0.45L | 0.45L | 0.3L | 0.3L |
| Total Loading Capacity (Liquid) | 1.8L | 1.8L | 0.9L | 0.9L |
| Drying Chamber Size (D*H) | Φ300*445mm | Φ300*465mm | Φ300*540mm | Φ300*570mm |
| Can Load Vials Qty / Φ22mm | / | / | 270 | 270 |
| Can Load Vials Qty / Φ16mm | / | / | 555 | 555 |
| Can Load Vials Qty / Φ12mm | / | / | 990 | 990 |
| Refrigerant | R404+R23 | R404+R23 | R404+R23 | R404+R23 |
| Cooling System | Air cooling | Air cooling | Air cooling | Air cooling |
| Consumption | -56℃: 1.4KW;; -80℃: 2.1KW. | -56℃: 1.4KW;; -80℃: 2.1KW. | -56℃: 1.4KW; -80℃: 2.1KW. | -56℃: 1.4KW; -80℃: 2.1KW. |
| Power Supply | AC220V, 50Hz/60Hz (single phase); 110V, 60Hz (single phase) | AC220V, 50Hz/60Hz (single phase); 110V, 60Hz (single phase) | AC220V, 50Hz/60Hz (single phase); 110V, 60Hz (single phase) | AC220V, 50Hz/60Hz (single phase); 110V, 60Hz (single phase) |
| Standard Accessory | -56℃ cold trap, Vacuum pump 4L/S, 14.4m³, Material tray(for all models) Flasks 100ml*2, 250ml*2, 500ml*2, 1000ml*2 (only for model BK-FD18P/PT) | -56℃ cold trap, Vacuum pump 4L/S, 14.4m³, Material tray(for all models) Flasks 100ml*2, 250ml*2, 500ml*2, 1000ml*2 (only for model BK-FD18P/PT) | -56℃ cold trap, Vacuum pump 4L/S, 14.4m³, Material tray(for all models) Flasks 100ml*2, 250ml*2, 500ml*2, 1000ml*2 (only for model BK-FD18P/PT) | -56℃ cold trap, Vacuum pump 4L/S, 14.4m³, Material tray(for all models) Flasks 100ml*2, 250ml*2, 500ml*2, 1000ml*2 (only for model BK-FD18P/PT) |
| Optional Function & Accessory | -80℃ -110℃ cold trap, Anti-reverse oil stop valve, Oil mist filter, Import vacuum pump(for all models); Conical-mouth flask and wide-mouth flask(for BK-FD18P/PT) | -80℃ -110℃ cold trap, Anti-reverse oil stop valve, Oil mist filter, Import vacuum pump(for all models); Conical-mouth flask and wide-mouth flask(for BK-FD18P/PT) | -80℃ -110℃ cold trap, Anti-reverse oil stop valve, Oil mist filter, Import vacuum pump(for all models); Conical-mouth flask and wide-mouth flask(for BK-FD18P/PT) | -80℃ -110℃ cold trap, Anti-reverse oil stop valve, Oil mist filter, Import vacuum pump(for all models); Conical-mouth flask and wide-mouth flask(for BK-FD18P/PT) |
| External Size (W*D*H) | 630*580*970/1415mm | 630*580*970/1435mm | 630*580*970/1510mm | 630*580*970/1810mm |
| Package Size(W*D*H)mm /; Gross Weight / Main Body | 790*690*1200(148kg) | 790*690*1200(148kg) | 790*690*1200(148kg) | 790*690*1200(148kg) |
| Package Size(W*D*H)mm /; Gross Weight / Drying Chamber | 420*420*560(14kg) | 430*430*660 (26kg) | 430*430*660 (26kg) | 430*430*660 (26kg) |
| Package Size(W*D*H)mm /; Gross Weight / Vacuum Pump | 620*370*450 (32kg) | 620*370*450 (32kg) | 620*370*450 (32kg) | 620*370*450 (32kg) |
Manufacturer catalogue checked 2026-09-28.
