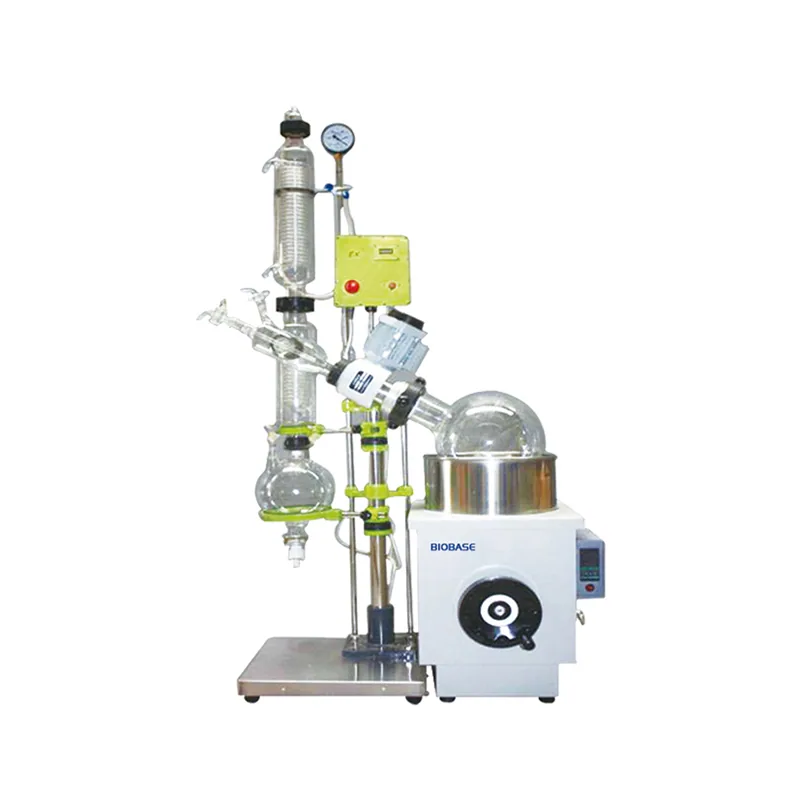

BIOBASE Explosion-proof Rotary Evaporator ExRE-1002 ExRE-2002 ExRE-5003
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Explosion-proof Rotary Evaporator ExRE-1002 ExRE-2002 ExRE-5003 is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: ExRE-1002, ExRE-2002, ExRE-5003. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | ExRE-1002 | ExRE-2002 | ExRE-5003 |
|---|---|---|---|
| Rotary Bottle | 10L(flange ø95) | 20L(flange ø95) | 50L(flange ø125) |
| Collecting Bottle | 5L(flange φ60~50) | 10L(flange φ60~50) | 20L(flange φ60~50) |
| Condenser | Vertical three back flow,; φ120*620mm(main),; φ135*475mm(SUB) | Vertical three back flow,; φ130*700mm(main),; φ160*530mm(SUB) | Vertical three back flow.; φ160*835mm(main),; φ160*530mm(SUB) |
| Charging Valve | 34#(standard size) | 34#(standard size) | 40#(standard size) |
| Rotating Speed | 0~120rpm | 0~120rpm | 0~120rpm |
| Vacuum | -0.095Mpa | -0.095Mpa | -0.095Mpa |
| Temp. Range | RT~180℃ | RT~180℃ | RT~180℃ |
| Temp. Accuracy | ±1℃ | ±1℃ | ±1℃ |
| Rotating Power | 120W | 120W | 180W |
| Heating Power | 3KW | 5KW | 8KW |
| Power Supply | Standard: AC220V, 50/60Hz; Optional: AC110V, 60Hz | Standard: AC220V, 50/60Hz; Optional: AC110V, 60Hz | Standard: AC220V, 50/60Hz; Optional: AC110V, 60Hz |
| External Size(W*D*H) | 930*560*1910mm | 1000*600*2130mm | 1330*730*2340mm |
| Package Size(W*D*H) | 1320*780*755mm | 1350*670*720mm; 680*680*790mm | 1420*820*720mm; 830*730*910mm |
| Gross Weight | 116kg | 143kg | 195kg |
| Standard Accessory | 10L rotary bottle*1,; 5L collecting bottle*1 | 20L rotary bottle*1,; 10L collecting bottle*1 | 50L rotary bottle*1,; 20L collecting bottle*1 |
| Standard Accessory | Explosion-proof transducer, Explosion-proof motor EX120W | Explosion-proof transducer, Explosion-proof motor EX120W | Explosion-proof transducer, Explosion-proof motor EX120W |
| Optional Accessory | Double collection bottle, Auto-lifting, Vacuum pump, Recirculating chiller | Double collection bottle, Auto-lifting, Vacuum pump, Recirculating chiller | Double collection bottle, Auto-lifting, Vacuum pump, Recirculating chiller |
Manufacturer catalogue checked 2026-09-28.
