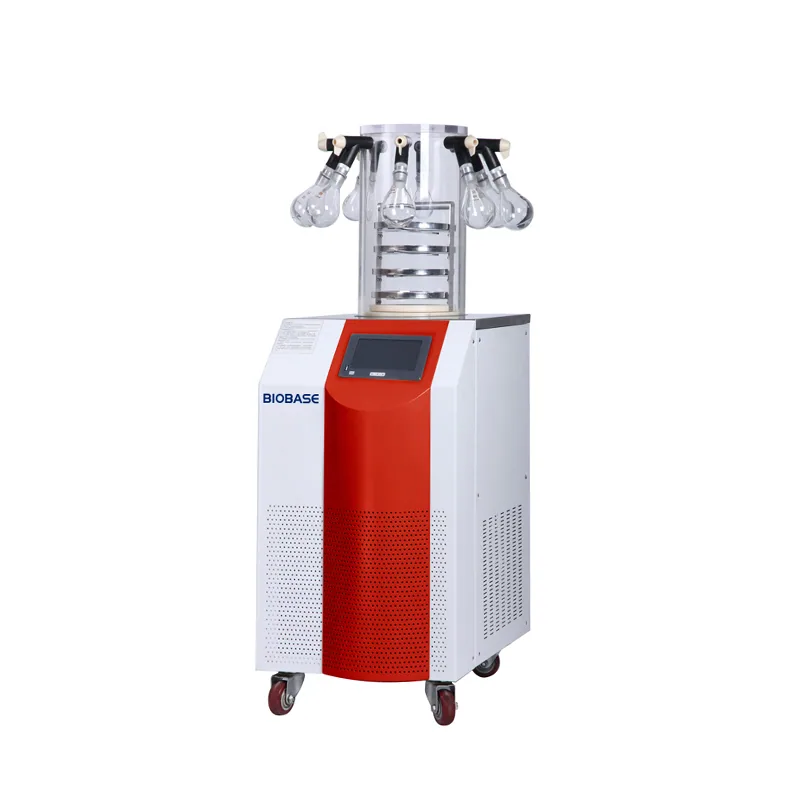

BIOBASE -60℃ -80℃ Vacuum Lyophilizer Freeze Dryer Machine
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE -60℃ -80℃ Vacuum Lyophilizer Freeze Dryer Machine is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: BK-FD12S(-60/-80), BK-FD12P(-60/-80), BK-FD12T(-60/-80), BK-FD12PT(-60/-80). Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-FD12S(-60/-80) | BK-FD12P(-60/-80) | BK-FD12T(-60/-80) | BK-FD12PT(-60/-80) |
|---|---|---|---|---|
| Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering; chamber with 8 port manifold |
| Freeze Drying Area | 0.12m² | 0.18m² | 0.09m² | 0.09m² |
| Tray | 4/6(Optional)pcs | 4/6(Optional)pcs | 3pcs | 3pcs |
| Height Between Trays | 76/50mm | 76/50mm | 70mm | 70mm |
| Cold Trap Temperature | ≤-60℃/-80℃(Optional) | ≤-60℃/-80℃(Optional) | ≤-60℃/-80℃(Optional) | ≤-60℃/-80℃(Optional) |
| Cold Trap Capacity | 9.3L | 9.3L | 9.3L | 9.3L |
| Cold Trap Size (Dr*H) | Φ217*250mm | Φ217*250mm | Φ217*250mm | Φ217*250mm |
| Vacuum Degree | <10Pa | <10Pa | <10Pa | <10Pa |
| Water Capture Capacity | 4kg/24h | 4kg/24h | 4kg/24h | 4kg/24h |
| Tray Size (D*H) | Φ200*20mm | Φ200*20mm | Φ200*20mm | Φ200*20mm |
| Freeze Drying Time | 24h | 24h | 24h | 24h |
| Loading Capacity/Shelf (Liquid) | 0.3L | 0.3L | 0.3L | 0.3L |
| Total Loading Capacity (Liquid) | 1.2L | 1.8L | 0.9L | 0.9L |
| Drying Chamber Size (D*H) | Lower circle Φ260mm, Upper circle Φ240mm Height 450mm | Lower circle Φ260mm, Upper circle Φ240mm Height 450mm | Lower circle Φ260mm, Upper circle Φ240mm Height 450mm | Lower circle Φ260mm, Upper circle Φ240mm Height 450mm |
| Can Load Vials Qty / Φ22mm | 260 | 260 | 195 | 195 |
| Can Load Vials Qty / Φ16mm | 480 | 480 | 360 | 360 |
| Can Load Vials Qty / Φ12mm | 920 | 920 | 690 | 690 |
| Refrigerant | R600a+R290+R23 | R600a+R290+R23 | R600a+R290+R23 | R600a+R290+R23 |
| Cooling System | Air cooling | Air cooling | Air cooling | Air cooling |
| Consumption | -60℃: 0.9kW,-80℃: 1.5kW(Optional) | -60℃: 0.9kW,-80℃: 1.5kW(Optional) | -60℃: 0.9kW,-80℃: 1.5kW(Optional) | -60℃: 0.9kW,-80℃: 1.5kW(Optional) |
| Power Supply | 220V/50Hz, 60Hz (single phase); 110V/60Hz(single phase, only for -60℃) | 220V/50Hz, 60Hz (single phase); 110V/60Hz(single phase, only for -60℃) | 220V/50Hz, 60Hz (single phase); 110V/60Hz(single phase, only for -60℃) | 220V/50Hz, 60Hz (single phase); 110V/60Hz(single phase, only for -60℃) |
| Standard Accessory | -60℃ cold trap, Vacuum pump 2L/S, 8m³/h, Material tray, Material rack, PC cover (for all models); Conical-mouth flask 500ml*8pcs, Switch valve*8pcs (only for model BK-FD12P/PT) | -60℃ cold trap, Vacuum pump 2L/S, 8m³/h, Material tray, Material rack, PC cover (for all models); Conical-mouth flask 500ml*8pcs, Switch valve*8pcs (only for model BK-FD12P/PT) | -60℃ cold trap, Vacuum pump 2L/S, 8m³/h, Material tray, Material rack, PC cover (for all models); Conical-mouth flask 500ml*8pcs, Switch valve*8pcs (only for model BK-FD12P/PT) | -60℃ cold trap, Vacuum pump 2L/S, 8m³/h, Material tray, Material rack, PC cover (for all models); Conical-mouth flask 500ml*8pcs, Switch valve*8pcs (only for model BK-FD12P/PT) |
| Optional Function & Accessory | -80℃ cold trap, Electric defrost function, Nitrogen gas filling valve, Oil mist filter (for all models);; 800ml wide-mouth flask(for BK-FD12P/PT) | -80℃ cold trap, Electric defrost function, Nitrogen gas filling valve, Oil mist filter (for all models);; 800ml wide-mouth flask(for BK-FD12P/PT) | -80℃ cold trap, Electric defrost function, Nitrogen gas filling valve, Oil mist filter (for all models);; 800ml wide-mouth flask(for BK-FD12P/PT) | -80℃ cold trap, Electric defrost function, Nitrogen gas filling valve, Oil mist filter (for all models);; 800ml wide-mouth flask(for BK-FD12P/PT) |
| External Size (W*D*H) | 480*620*920/1370mm | 480*620*920/1370mm | 480*620*920/1370mm | 480*620*920/1370mm |
| Package Size (W*D*H)mm/; Gross Weight / Main Body | 730*600*1180(80kg) | 730*600*1180(80kg) | 730*600*1180(80kg) | 730*600*1180(80kg) |
| Package Size (W*D*H)mm/; Gross Weight / Drying Chamber | 400*400*620(15kg) | 400*400*620(15kg) | 400*400*620(15kg) | 400*400*620(15kg) |
| Package Size (W*D*H)mm/; Gross Weight / Vacuum Pump | 570*240*360(22kg) | 570*240*360(22kg) | 570*240*360(22kg) | 570*240*360(22kg) |
Manufacturer catalogue checked 2026-09-28.
