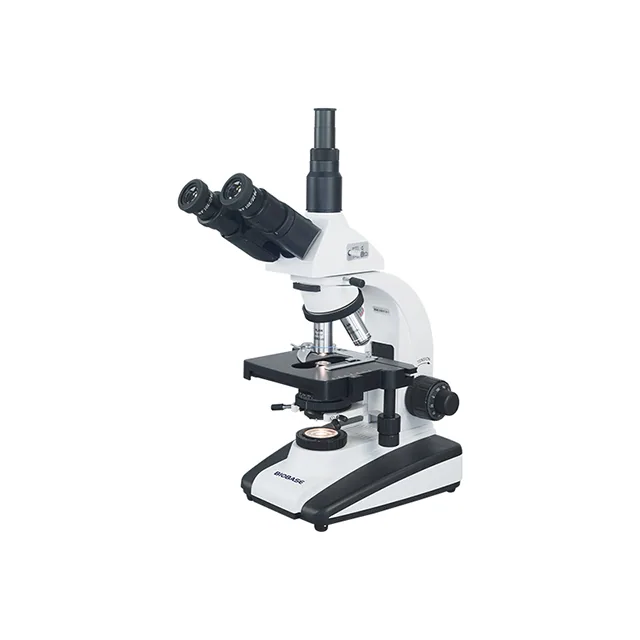

BIOBASE Trinocular UIS Biological Microscope BM-20A BM-20AD
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Trinocular UIS Biological Microscope BM-20A BM-20AD is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BM-20A, BM-20AD. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BM-20A | BM-20AD |
|---|---|---|
| Optical System | Infinite optical system | Infinite optical system |
| View Head | Compensation free trinocular head, Inclined at 30°, 360° rotatable, interpupillary 48~75mm | Compensation free trinocular head, Inclined at 30°, 360° rotatable, interpupillary 48~75mm |
| Eyepiece | WF10X/22mm, WF16X/15mm | WF10X/22mm, WF16X/15mm |
| Infinite Plan Achromatic Objective | 4X N.A=0.10 WD=20.00mm | 4X N.A=0.10 WD=20.00mm |
| Infinite Plan Achromatic Objective | 10X N.A=0.25 WD=13.50mm | 10X N.A=0.25 WD=13.50mm |
| Infinite Plan Achromatic Objective | 40X N.A=0.65 WD=0.68mm | 40X N.A=0.65 WD=0.68mm |
| Infinite Plan Achromatic Objective | 100X(Oil) N.A=1.25 WD=0.20mm | 100X(Oil) N.A=1.25 WD=0.20mm |
| Infinite Plan Achromatic Objective | 20X N.A=0.40 WD=2.00mm | 20X N.A=0.40 WD=2.00mm |
| Focusing | Coaxial Coarse＆Fine Adjustable System, Range 30mm, Fine Division 0.002mm | Coaxial Coarse＆Fine Adjustable System, Range 30mm, Fine Division 0.002mm |
| Stage | Double Layers Mechanical Stage 155*145mm, Moving Range 75*50mm | Double Layers Mechanical Stage 155*145mm, Moving Range 75*50mm |
| Condenser | Abbe NA1.25 centerable condenser with lris Diaphragm&Filter | Abbe NA1.25 centerable condenser with lris Diaphragm&Filter |
| Illumination | LED, brightness adjustable | LED, brightness adjustable |
| Filter | Blue, yellow, green | Blue, yellow, green |
| Imaging System | / | 500W CMOS Camera, MCL-Z adapter |
| Power Supply | AC85~240V, 50/60Hz | AC85~240V, 50/60Hz |
| Package Size(W*D*H) | 430*330*430mm | 440*340*455mm |
| Net Weight | 9kg | 11kg |
| Gross Weight | 10kg | 12kg |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
