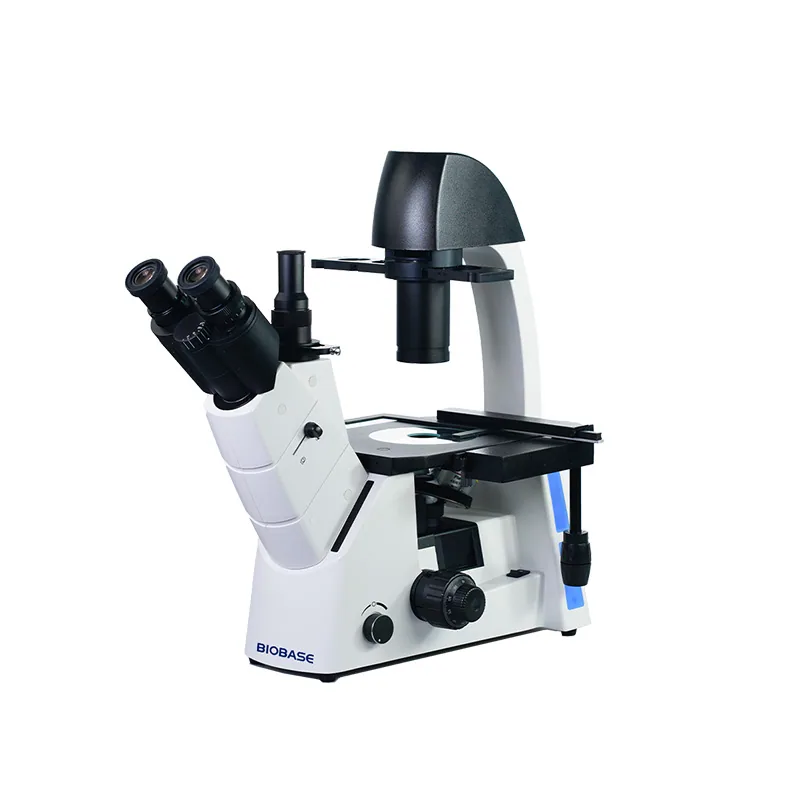

BIOBASE Trinocular Inverted Microscope BMI-37XC BMI-37XE
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Trinocular Inverted Microscope BMI-37XC BMI-37XE is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BMI-37XC, BMI-37XE. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BMI-37XC | BMI-37XE |
|---|---|---|
| Optical System | Infinite optical system | Infinite optical system |
| View Head | Compensation free trinocular head, Inclined at 45°, 360° rotatable, Interpupillary 50~75mm | Compensation free trinocular head, Inclined at 45°, 360° rotatable, Interpupillary 50~75mm |
| Eyepiece | WF10X/22mm, WF16X/20mm | WF10X/20mm |
| Objective / Infinite LWD Plan Achromatic Objective | 4X NA=0.13 WD=12.00mm 40X NA=0.60 WD=2.50mm | 10X NA=0.25 WD=4.27mm 20X NA=0.40 WD=8.00mm 40X NA=0.60 WD=3.50mm |
| Objective / Infinite LWD Plan Phase Contrast Objective | 10X NA=0.25 WD=8.10mm 20X NA=0.40 WD=4.80mm | 10X NA=0.25 WD=4.27mm 20X NA=0.40 WD=8.00mm(Optional) 40X NA=0.60 WD=3.50mm(Optional) |
| Focusing | Coaxial coarse & fine adjustable system, pinion and rack adjustable, fine division 0.002mm | Coaxial coarse & fine adjustable system, pinion and rack adjustable, fine division 0.002mm |
| Stage | 242*172mm, glass slide ø110mm, moving range 120*75mm | 224* 208mm; movement range: 112*79mm; |
| Condenser | ELWD Condenser with Iris Diaphragm & Filter, LWD 75mm | Long working distance condenser lens, working distance 70mm, with insert-type phase contrast device. |
| Illumination | Halogen lamp 12V/30W, brightness adjustable | LED lamp, 9W, brightness adjustable |
| Power Supply | AC85~240V, 50/60Hz | AC85~240V, 50/60Hz |
| Package Size(W*D*H) | 655*305*630mm | 650*430*600mm |
| Gross Weight | 14kg | 16kg |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
