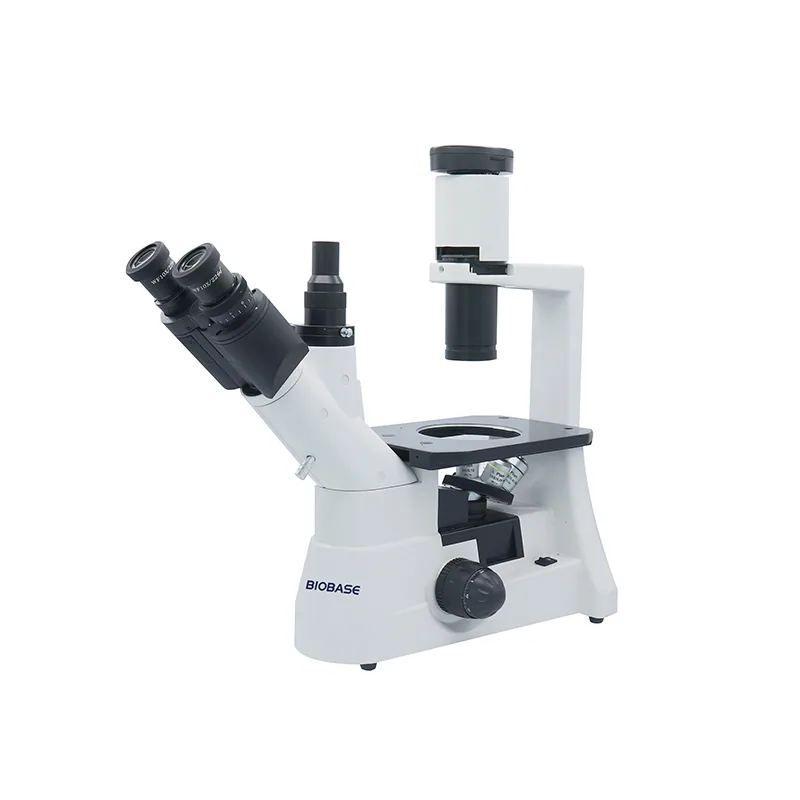

BIOBASE Trinocular Inverted Microscope BK-TIM37XC
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Trinocular Inverted Microscope BK-TIM37XC is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BK-37XC. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-37XC |
|---|---|
| Optical System | Infinite optical system |
| View Head | Compensation free trinocular head, Inclined at 30°, 360° rotatable, Interpupillary 55~75mm |
| Eyepiece | P10X/22mm, P16X/15mm |
| Objective / Infinite Plan Achromatic Objective | 4X N.A=0.10 WD=25.00mm |
| Objective / Infinite Plan Achromatic Objective | 40X N.A=0.60 WD=3.30mm |
| Objective / Infinite Plan Phase Objective | 10X N.A=0.25 WD=8.10mm |
| Objective / Infinite Plan Phase Objective | 20X N.A=0.40 WD=4.80mm |
| Objective / Infinite Plan Phase Objective | 40X(Optional) |
| Focusing | Coaxial coarse ＆ fine adjustable system, pinion and rack adjustable, fine division 0.002mm |
| Stage | 242*172mm, glass slide ø110mm, moving range 120*75mm |
| Condenser | ELWD Condenser with Iris Diaphragm ＆ Filter, LWD 75mm |
| Illumination | Halogen lamp 12V/30W, brightness adjustable |
| Power Supply | AC85~265V， 50/60Hz |
| Package Size | 655*305*630mm |
| Gross Weight | 14kg |
Manufacturer catalogue checked 2026-09-28.
