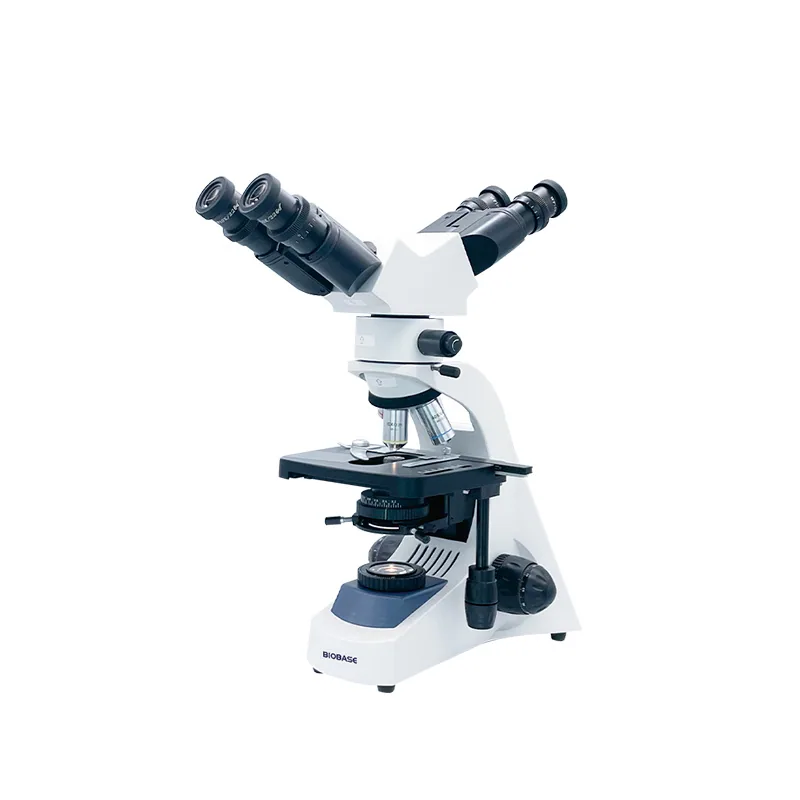

BIOBASE Teaching Microscope BBM-18F2 BBM-18F3 BBM-18F5
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Teaching Microscope BBM-18F2 BBM-18F3 BBM-18F5 is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BBM-18F2, BBM-18F3, BBM-18F5. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BBM-18F2 | BBM-18F3 | BBM-18F5 |
|---|---|---|---|
| Optical System | Infinite optical system | Infinite optical system | Infinite optical system |
| View Head | Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 48~75mm | Compensation free trinocular head for main part, binocular head for teaching part, Inclined at 30°, 360° rotatable, Interpupillary 48~75mm | Compensation free trinocular head for main part, binocular head for teaching part, Inclined at 30°, 360° rotatable, Interpupillary 48~75mm |
| Eyepiece | WF10X/22mm | WF10X/22mm | WF10X/22mm |
| Infinite Plan Achromatic Objective | 4X, 10X, 40X(S), 100X(S, Oil) | 4X, 10X, 40X(S), 100X(S, Oil) | 4X, 10X, 40X(S), 100X(S, Oil) |
| Focusing | Coaxial Coarse & Fine Adjustable System, Fine Division 0.002mm | Coaxial Coarse & Fine Adjustable System, Fine Division 0.002mm | Coaxial Coarse & Fine Adjustable System, Fine Division 0.002mm |
| Stage | Double Layers Mechanical Stage 180*150mm, Moving Range 75*50mm | Double Layers Mechanical Stage 180*160mm, Moving Range 80*50mm | Double Layers Mechanical Stage 180*160mm, Moving Range 80*50mm |
| Condenser | Abbe NA1.25 condenser with Iris Diaphragm & Filter | Abbe NA1.25 condenser with Iris Diaphragm & Filter | Abbe NA1.25 condenser with Iris Diaphragm & Filter |
| Indicator | LED cursor indicator | LED cursor indicator | LED cursor indicator |
| Illumination | 3W LED lamp, Kohler illumination, brightness adjustable | 10W LED lamp, Kohler illumination, brightness adjustable | 10W LED lamp, Kohler illumination, brightness adjustable |
| Filter | Blue, yellow, green | Blue, yellow, green | Blue, yellow, green |
| Power Supply | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz |
| Package Size(W*D*H) | 390*290*650mm | 720*550*480mm | 720*550*480mm ; |
| Gross Weight | 11kg | 22kg | 29kg |
Manufacturer catalogue checked 2026-09-28.
