Brand: BIOBASE | Category: Scientific & Laboratory Equipment

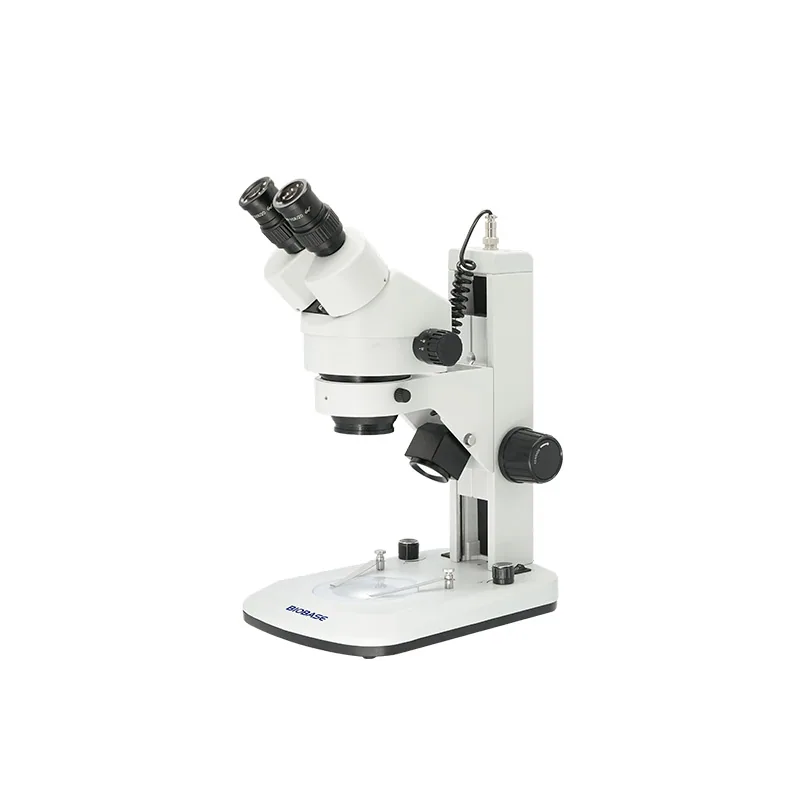

BIOBASE Stereo Zoom Microscope SZM-XTZD is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: SZM-XTZD. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SZM-XTZD | SZM-XTZD | SZM-XTZD |
|---|---|---|---|
| Eyepiece (Working distance 100mm) | 10X, φ20mm | Magnification | Field diameter |
| Eyepiece (Working distance 100mm) | 10X, φ20mm | 7X | 28mm |
| Eyepiece (Working distance 100mm) | 10X, φ20mm | 45X | 4.3mm |
| Eyepiece (Working distance 100mm) | 20X, φ10mm (Optional) | Magnification | Field diameter |
| Eyepiece (Working distance 100mm) | 20X, φ10mm (Optional) | 14X | 14.3mm |
| Eyepiece (Working distance 100mm) | 20X, φ10mm (Optional) | 90X | 2.2mm |
| Objective (Working distance 30mm) | 2X (Optional) | Magnification | Field diameter |
| Objective (Working distance 30mm) | 2X (Optional) | 28X | 7.1mm |
| Objective (Working distance 30mm) | 2X (Optional) | 180X | 1.1mm |
| Magnification | 7~45X | 7~45X | 7~45X |
| Interpupillary Distance | 55mm~75mm | 55mm~75mm | 55mm~75mm |
| Focusing Bracket | Hole, φ76mm | Hole, φ76mm | Hole, φ76mm |
| Slide Focusing Range | 60mm | 60mm | 60mm |
| Working Distance | 235mm | 235mm | 235mm |
| Light Source | 12V 3W, LED light | 12V 3W, LED light | 12V 3W, LED light |
| Stage | Glass stage, φ95mm | Glass stage, φ95mm | Glass stage, φ95mm |
| Base Size | Size: 275mm*205mm, thickness: 33mm | Size: 275mm*205mm, thickness: 33mm | Size: 275mm*205mm, thickness: 33mm |
| Power Supply | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz |
| Package Size (W*D*H) | 490*415*330mm | 490*415*330mm | 490*415*330mm |
| Gross Weight | 8kg | 8kg | 8kg |
Manufacturer catalogue checked 2026-09-28.
