Brand: BIOBASE | Category: Scientific & Laboratory Equipment

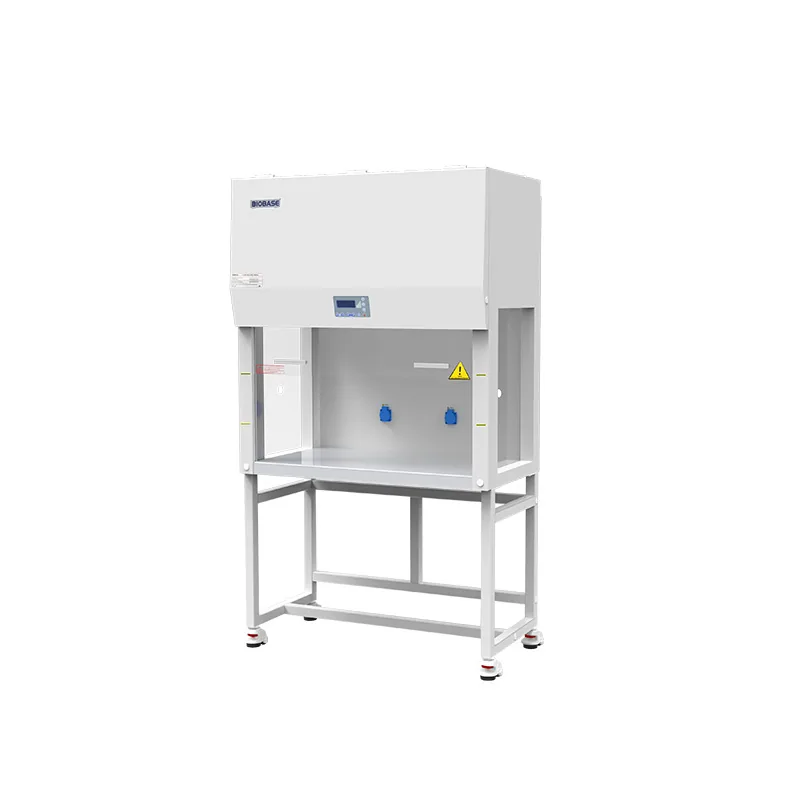

BIOBASE Small Vertical Laminar Flow Cabinet BBS-V680 BBS-V800 BBS-DDC BBS-SDC is listed in VVON's laminar flow & clean-air equipment range for Bangladesh. Published models: BBS-V680, BBS-V800, BBS-DDC, BBS-SDC. Match airflow arrangement, working dimensions and cleanliness requirements to the process. For a quotation, send the process, work area, airflow requirements and room layout. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BBS-V680 | BBS-V800 | BBS-DDC | BBS-SDC |
|---|---|---|---|---|
| External Size(W*D*H) | 680*410*1160mm | 802*650*1640mm | 1060*620*1850mm | 1460*620*1850mm |
| Internal Size(W*D*H) | 630*375*615mm | 800*530*540mm | 935*530*650mm | 1335*530*650mm |
| Work Surface; Height | / | 750mm | 750mm | 750mm |
| Display | LED display | LED display | LCD display | LCD display |
| Airflow Velocity | Average of 0.3~0.5m/s, air speed adjustable | Average of 0.3~0.5m/s, air speed adjustable | Average of 0.3~0.45m/s, air speed adjustable | Average of 0.3~0.45m/s, air speed adjustable |
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | Main Body: Cold-rolled steel with anti-bacteria powder coating | Main Body: Cold-rolled steel with anti-bacteria powder coating | Main Body: Cold-rolled steel with anti-bacteria powder coating |
| Material | Work Table: 304 stainless steel(except model BBS-V680) | Work Table: 304 stainless steel(except model BBS-V680) | Work Table: 304 stainless steel(except model BBS-V680) | Work Table: 304 stainless steel(except model BBS-V680) |
| Pre-filter | Polyester fiber, washable | Polyester fiber, washable | Polyester fiber, washable | Polyester fiber, washable |
| HEPA Filter | 99.995% efficiency at 0.3μm | 99.995% efficiency at 0.3μm | 99.995% efficiency at 0.3μm | 99.995% efficiency at 0.3μm |
| Noise | <65dB | <65dB | <65dB | <65dB |
| Front Window | / | Manual, 5mm toughened glass, anti-UV | Manual, 5mm toughened glass, anti-UV | Manual, 5mm toughened glass, anti-UV |
| Max Opening | / | 490mm | 400mm | 400mm |
| Illuminating Lamp | Fluorescent lamp; 8W*1 | LED lamp; 8W*1 | LED lamp; 12W*1 | LED lamp; 16W*1 |
| UV Lamp | 15W*1 | 20W*1 | 20W*1 | 40W*1 |
| UV Lamp | Emission of 253.7 nanometers | Emission of 253.7 nanometers | Emission of 253.7 nanometers | Emission of 253.7 nanometers |
| Consumption | 160W | 350W | 150W | 250W |
| Standard Accessory | Fluorescent lamp UV lamp*2; Water&gas tap | LED lamp; UV lamp*2; Base stand | LED lamp; UV lamp*2; Base stand | LED lamp; UV lamp*2; Base stand |
| Optional Accessory | / | Electric height adjustable base stand | Electric height adjustable base stand | Electric height adjustable base stand |
| Caster | / | Universal wheel with leveling feet | Universal wheel with leveling feet | Universal wheel with leveling feet |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
| Gross Weight | 75kg | 116kg | 177kg | 224kg |
| Package Size(W*D*H) | 840*570*1360mm | 960*930*1200mm | 1235*920*1355mm | 1635*920*1355mm |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
