Brand: BIOBASE | Category: Scientific & Laboratory Equipment

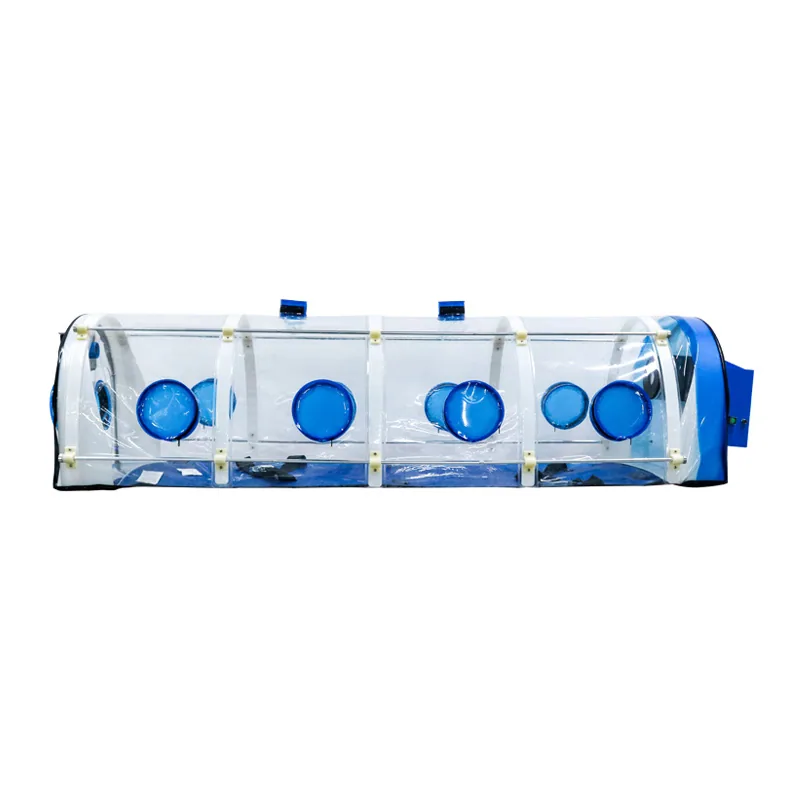

BIOBASE Biological lsolation Chamber BFG-IV BFG-VI is listed in VVON's laminar flow & clean-air equipment range for Bangladesh. Published models: BFG -IV, BFG -VI. Match airflow arrangement, working dimensions and cleanliness requirements to the process. For a quotation, send the process, work area, airflow requirements and room layout. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BFG -IV | BFG -VI |
|---|---|---|
| Unfolded Size(L*W*H) | 1900*560*500mm | 1900*680*500mm |
| HEPA Filter | 3pcs, 99.999% efficiency for 0.3μm particles | 3pcs, 99.999% efficiency for 0.3μm particles |
| Ventilation | ≥50L/min | ≥50L/min |
| Chamber Noise | ≤65dB(A) | ≤65dB(A) |
| Alarm | Audio and visual alarm for internal pressure insufficient and low power | Audio and visual alarm for internal pressure insufficient and low power |
| Negative Pressure | ≥15Pa in two minutes after power on | ≥15Pa in two minutes after power on |
| Standard Accessory | The main chamber, 3pcs disposable HEPA filter, Negative generation system, 5 pairs PE gloves, Battery and charger, 8 long aluminum rods, 4 short aluminum rods, 8 knurled bolts | The main chamber, 3pcs disposable HEPA filter, Negative generation system, 5 pairs PE gloves, Battery and charger, 8 long aluminum rods, 4 short aluminum rods, 8 knurled bolts |
| Consumables | HEPA filter(3pcs/set), PE gloves | HEPA filter(3pcs/set), PE gloves |
| Disinfection | Chlorinated disinfectants sterilize surfaces | Chlorinated disinfectants sterilize surfaces |
| Optional | Folding stretcher, Stretcher trolley | Folding stretcher, Stretcher trolley |
| Load-bearing | Up to 150kg | Up to 150kg |
| Power Supply | DC12V power adapter. Battery charging for 8 hours and continuously using for 4~8 hours | DC12V power adapter. Battery charging for 8 hours and continuously using for 4~8 hours |
| Package Size(L*W*H) | 860*860*760mm | 860*860*760mm |
| Net Weight | 18kg | 20kg |
| Gross Weight | 40kg | 42kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
