Brand: BIOBASE | Category: Scientific & Laboratory Equipment

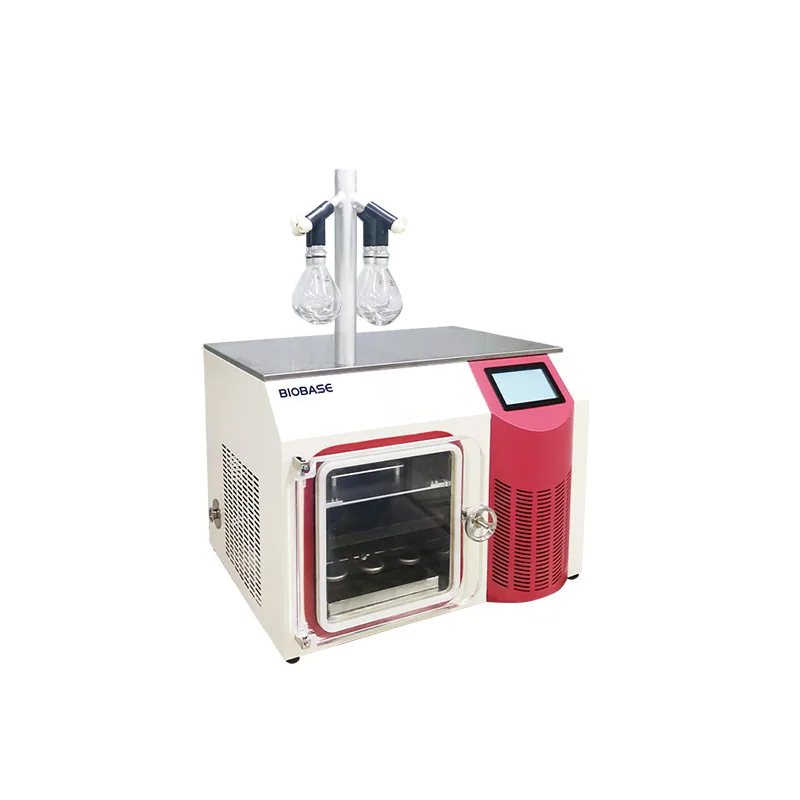

BIOBASE Tabletop Pilot Freeze Dryer BK-FD10ES BK-FD10EP BK-FD10ET BK-FD10EPT is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: BK-FD10ES, BK-FD10EP, BK-FD10ET, BK-FD10EPT. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-FD10ES | BK-FD10EP | BK-FD10ET | BK-FD10EPT |
|---|---|---|---|---|
| Type | Standard chamber | 4 port manifold | Stoppering chamber | Stopping chamber with 4 port manifold |
| Cold Trap Temp. | -88℃ | -88℃ | -88℃ | -88℃ |
| Shelf Temp. | -60~+70℃ | -60~+70℃ | -60~+70℃ | -60~+70℃ |
| Temp. Uniformity | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Vacuum Degree | ≤0.1Pa | ≤0.1Pa | ≤0.1Pa | ≤0.1Pa |
| Cold Trap Volume | 11L | 11L | 11L | 11L |
| Freezer Drying Area | 0.1m2 | 0.1m2 | 0.1m2 | 0.1m2 |
| Condensing Capacity | 3kg/h | 3kg/h | 3kg/h | 3kg/h |
| Qty. Of Shelf | 1 | 1 | 1 | 1 |
| Drying Chamber Size | 40L | 40L | 40L | 40L |
| Material Loading Capacity | 3000ml | 3000ml | 3000ml | 3000ml |
| Total Qty. of Vial / Φ22mm | 216 | 216 | 216 | 216 |
| Total Qty. of Vial / Φ16mm | 400 | 400 | 400 | 400 |
| Total Qty. of Vial / Φ12mm | 726 | 726 | 726 | 726 |
| Manifold | / | 4 pieces | / | 4 pieces |
| USB Interface | Yes | Yes | Yes | Yes |
| Drying Chamber(Standard) | Transparent Acrylic | Transparent Acrylic | Transparent Acrylic | Transparent Acrylic |
| Vacuum Pump | Standard | Standard | Standard | Standard |
| Control System | Microprocessor, touch screen | Microprocessor, touch screen | Microprocessor, touch screen | Microprocessor, touch screen |
| Power Supply | 220/110V, 50/60Hz | 220/110V, 50/60Hz | 220/110V, 50/60Hz | 220/110V, 50/60Hz |
| Power | 2.3kW | 2.3kW | 2.3kW | 2.3kW |
| Cold Trap Size(Φ*Hmm) | 215*190mm | 215*190mm | 215*190mm | 215*190mm |
| Shelf Size(W*D*H) | 270*400*150mm | 270*400*150mm | 270*400*120mm | 270*400*120mm |
| External Size(W*D*H) | 820*695*600/995mm | 820*695*600/995mm | 820*695*875/1075mm | 820*695*875/1075mm |
| Host Package Size(W*D*H) | 940*840*990mm | 940*840*990mm | 940*840*990mm | 940*840*990mm |
| Vacuum Pump Package Size(W*D*H) | 600*230*300mm | 600*230*300mm | 600*230*300mm | 600*230*300mm |
| Gross Weight | 180kg | 210kg | 210kg | 220kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
