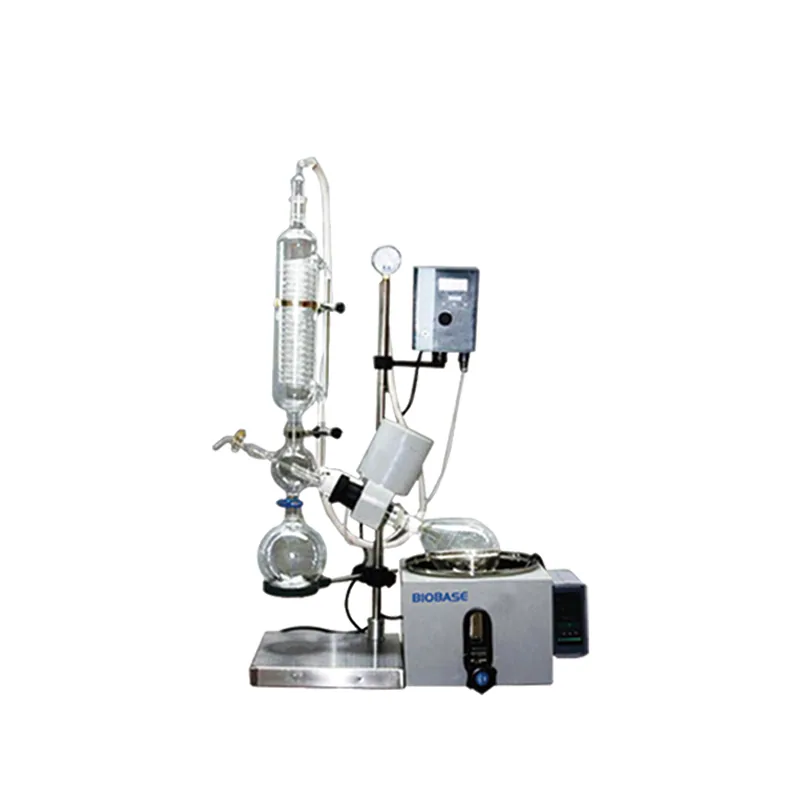

BIOBASE Rotary Evaporator RE-201D RE-301 RE-501 RE-1002 RE-2002 RE-5003
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Rotary Evaporator RE-201D RE-301 RE-501 RE-1002 RE-2002 RE-5003 is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: RE-201D, RE-301, RE-501, RE-1002, RE-2002, RE-5003. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | RE-201D | RE-301 | RE-501 | RE-1002 | RE-2002 | RE-5003 |
|---|---|---|---|---|---|---|
| Rotary Bottle | 1L 24# Standard mouth | 3L flange φ50 | 5L flange φ50 | 10L flange φ95 | 20L flange φ95 | 50L flange φ125 |
| Collecting Bottle | 1L 35#(Standard mouth) | 2L 35#(Ball mill mouth) | 3L 35#(Ball mill mouth) | 5L(Flange φ60~50) | 10L(Flange φ60) | 20L(Flange φ60~50) |
| Condenser | Vertical φ85*430mm, 35#(Ball mill mouth) | Vertical φ100*530mm | Vertical φ100*530mm | Vertical three backflow φ120*620mm(main), φ135*475mm(SUB) | Vertical three backflow φ130*700mm(main), φ160*530mm(SUB) | Vertical three Backflow φ160*835mm(main), φ160*530mm(SUB) |
| Charging Valve | 19#(Standard size） | 19#(Standard size） | 19#(Standard size） | 34#(Standard size） | 34#(Standard size） | 40#(Standard size） |
| Rotary Speed | 0~120rpm | 0~120rpm | 0~120rpm | 0~120rpm | 0~120rpm | 0~120rpm |
| Vacuum | 0.098Mpa | 0.098Mpa | 0.098Mpa | 0.095Mpa | 0.095Mpa | 0.095Mpa |
| Temp. Range | RT~180℃ | RT~180℃ | RT~180℃ | RT~180℃ | RT~180℃ | RT~180℃ |
| Temp. Accuracy | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Stroke Height | 200mm | 200mm | 200mm | 180mm | 180mm | 180mm |
| Rotary Power | 40W | 40W | 40W | 120W | 120W | 180W |
| Heating Power | 1KW | 2KW | 2KW | 3KW | 5KW | 8KW |
| Shelf Material | Stainless steel | Stainless steel | Stainless steel | Coating anticorrosive | Coating anticorrosive | Coating anticorrosive |
| Chamber Material | SS 245*140mm | SS 265*160mm | SS 280*170mm | SS 350*220mm | SS 450*260mm | SS 550*320mm |
| Plate size | 280*330mm | 350*330mm | 350*330mm | 534*504mm | 474*474mm | 550*320mm |
| Power Supply | Standard: AC220V, 50/60Hz; Optional: AC110V, 60Hz | Standard: AC220V, 50/60Hz; Optional: AC110V, 60Hz | Standard: AC220V, 50/60Hz; Optional: AC110V, 60Hz | Standard: AC220V, 50/60Hz; Optional: AC110V, 60Hz | AC220V, 50/60Hz | Standard: AC380V, 50Hz; Optional: AC220V, 50Hz |
| External Size(mm) | 700*330*785 | 740*330*970 | 760*330*1030 | 930*560*1910 | 1000*600*2130 | 1330*730*2340 |
| Package Size(mm) | 710*540*350 | 990*640*470 | 990*640*470 | 1320*780*755 | 1350*670*720 680*680*790 | 1420*820*720 830*730*910 |
| Gross Weight | 21kg | 40kg | 42kg | 107kg | 136kg | 186kg |
| Standard Accessory | 1L rotary bottle*1, 1L collecting bottle*1 | 3L rotary bottle*1, 2L collecting bottle*1 | 5L rotary bottle*1, 3L collecting bottle*1 | 10L rotary bottle*1, 5L collecting bottle*1 | 20L rotary bottle*1, 10L collecting bottle*1 | 50L rotary bottle*1, 20L collecting bottle*1 |
| Optional Accessory | Vacuum pump, Recirculating chiller | Vacuum pump, Recirculating chiller | Vacuum pump, Recirculating chiller | Vacuum pump, Recirculating chiller | Vacuum pump, Recirculating chiller | Vacuum pump, Recirculating chiller |
Manufacturer catalogue checked 2026-09-28.
