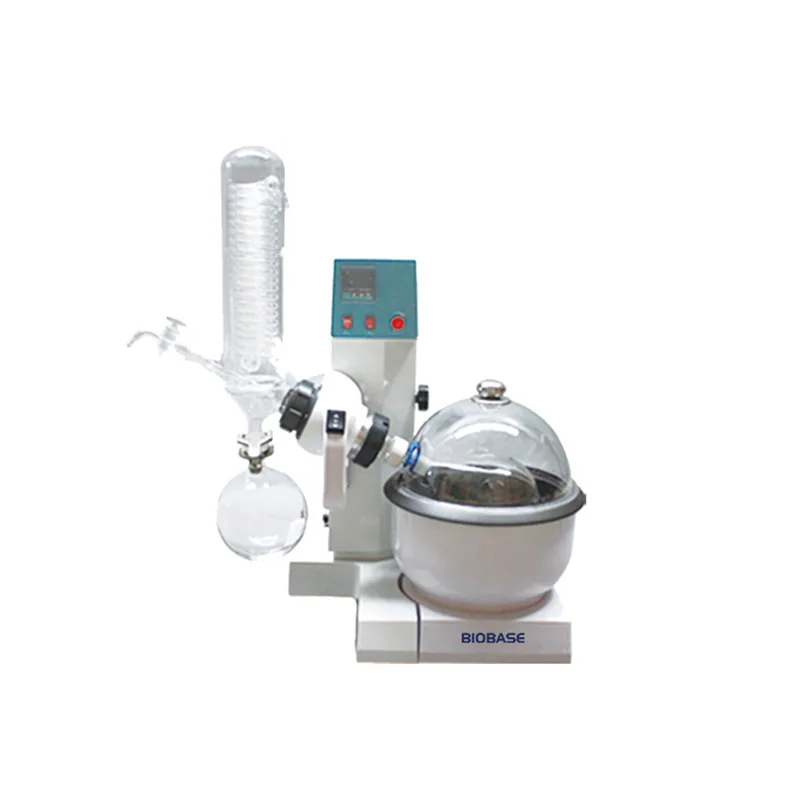

BIOBASE Small Capacity Rotary Evaporator RE-2000A RE-2000B RE-2000E RE-52A RE-52C RE-5299
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Small Capacity Rotary Evaporator RE-2000A RE-2000B RE-2000E RE-52A RE-52C RE-5299 is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: RE-2000A, RE-2000B, RE-2000E, RE-52A, RE-52C, RE-5299. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | RE-2000A | RE-2000B | RE-2000E | RE-52A | RE-52C | RE-5299 |
|---|---|---|---|---|---|---|
| Rotary Bottle | 1L 24#(Standard size) | 1L 24#(Standard size) | 1L 24#(Standard size) | 1L 24#(Standard size) | 1L 24#(Standard size) | 1L 24#(Standard size) |
| Collecting Bottle | 1L 35#(Ball mill mouth) | 1L 35#(Ball mill mouth) | 1L 35#(Ball mill mouth) | 0.5L 24#(Standard size) | 0.5L 24#(Standard size) | 0.5L 24#(Standard size) |
| Condenser | Vertical φ85*430mm | Vertical φ85*430mm | Vertical φ85*430mm | Vertical φ85*450mm, 29#(Standard size) | Vertical φ85*450mm, 29#(Standard size) | Vertical φ85*450mm, 29#(Standard size) |
| Charging Valve | 19#(Standard size) | 19#(Standard size) | 19#(Standard size) | 19#(Standard size) | 19#(Standard size) | 19#(Standard size) |
| Rotating Speed | 0~200rpm | 0~200rpm | 0~200rpm | 0~120rpm | 0~120rpm | 0~120rpm |
| Vacuum | -0.098Mpa | -0.098Mpa | -0.098Mpa | -0.098Mpa | -0.098Mpa | -0.098Mpa |
| Temp. Range | RT~99℃ | RT~99℃ | RT~99℃ | RT~99℃ | RT~99℃ | RT~99℃ |
| Temp. Accuracy | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Stroke Height | 120mm | 120mm | 120mm | 150mm | 150mm | 150mm |
| Rotating Power | 40W | 40W | 40W | 30W | 30W | 30W |
| Heating Power | 1.5KW | 1.5KW | 1.5KW | 1KW | 1KW | 1KW |
| Shelf Material | Aluminum alloy | Aluminum alloy | Aluminum alloy | Powder coating anticorrosive | Powder coating anticorrosive | Powder coating anticorrosive |
| Chamber Size | φ235*145mm | φ235*145mm | φ235*145mm | φ220*120mm | φ220*120mm | φ245*140mm |
| Power Supply | Standard: AC220V, 50/60Hz; Optional: AC110V, 60Hz | Standard: AC220V, 50/60Hz; Optional: AC110V, 60Hz | Standard: AC220V, 50/60Hz; Optional: AC110V, 60Hz | Standard: AC220V, 50/60Hz; Optional: AC110V, 60Hz | Standard: AC220V, 50/60Hz; Optional: AC110V, 60Hz | Standard: AC220V, 50/60Hz; Optional: AC110V, 60Hz |
| External Size(W*D*H) | 630*400*690~810mm | 630*400*690~810mm | 630*400*690~810mm | 640*430*860~1010mm | 640*430*860~1010mm | 660*440*880~1030mm |
| Package Size(W*D*H) | 620*620*490mm | 620*620*490mm | 620*620*490mm | 600*460*470mm | 600*460*470mm | 600*460*470mm |
| Gross Weight | 25kg | 25kg | 23kg | 19kg | 20kg | 20kg |
| Standard Accessory | 1000ml rotary bottle*1, 500ml recycling bottle*1 | 1000ml rotary bottle*1, 500ml recycling bottle*1 | 1000ml rotary bottle*1, 500ml recycling bottle*1 | 1000ml rotary bottle*1, 500ml recycling bottle*1 | 1000ml rotary bottle*1, 500ml recycling bottle*1 | 1000ml rotary bottle*1, 500ml recycling bottle*1 |
| Optional Accessory | Transparent bath cover, Vacuum pump, Recirculating chiller | Transparent bath cover, Vacuum pump, Recirculating chiller | Transparent bath cover, Vacuum pump, Recirculating chiller | Transparent bath cover, Vacuum pump, Recirculating chiller | Transparent bath cover, Vacuum pump, Recirculating chiller | Transparent bath cover, Vacuum pump, Recirculating chiller |
Manufacturer catalogue checked 2026-09-28.
