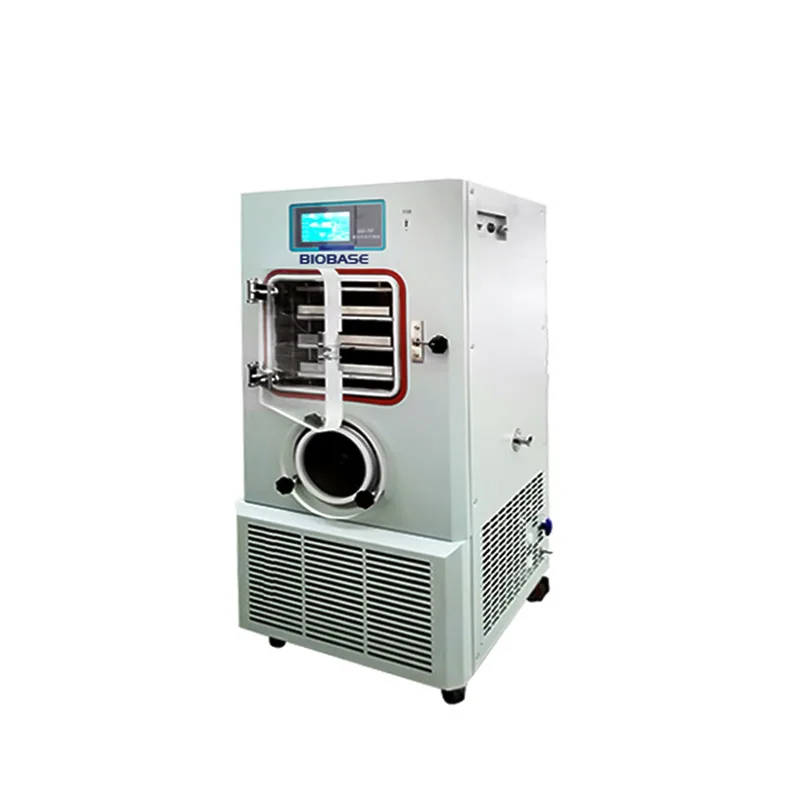

BIOBASE Pilot Freeze Dryer Large Freeze Dryer BK-FD20S, BK-FD20T, BK-FD30S, BK-FD30T
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Pilot Freeze Dryer Large Freeze Dryer BK-FD20S, BK-FD20T, BK-FD30S, BK-FD30T is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: BK-FD20S(Standard), BK-FD20T(Stoppering), BK-FD30S(Standard), BK-FD30T(Stoppering). Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-FD20S(Standard) | BK-FD20T(Stoppering) | BK-FD30S(Standard) | BK-FD30T(Stoppering) |
|---|---|---|---|---|
| Freeze Drying Area | 0.3m² | 0.2m² | 0.4m² | 0.3m² |
| Shelf Temperature | -55℃~+70℃(no-loading) | -55℃~+70℃(no-loading) | -55℃~+70℃(no-loading) | -55℃~+70℃(no-loading) |
| Cold Trap Temperature | <-80℃(no-loading) | <-80℃(no-loading) | <-80℃(no-loading) | <-80℃(no-loading) |
| Vacuum Degree | ≤1Pa(no-loading) | ≤1Pa(no-loading) | ≤1Pa(no-loading) | ≤1Pa(no-loading) |
| Water Capture Capacity | ≥6 | ≥6 | ≥8 | ≥8 |
| Cold Trap Volume | 14L | 14L | / | 26L |
| Cold Trap Size(Diameter*H) | Φ200*460mm | Φ200*460mm | / | Φ320*520mm |
| Drying Chamber Size(W*D*H) | 330*325*470mm | 330*325*470mm | 340*500*420mm | 480*380*540mm |
| Shelf&Tray Size(W*D*H) | Shelf: 400*270*18mm; Tray: 395*265*25mm | Shelf: 400*270*18mm; Tray: 395*265*25mm | Shelf: 300*340*18mm; Tray: 295*335*25mm | Shelf: 300*340*18mm; Tray: 295*335*25mm |
| Qty. of Shelf&Tray | Shelf: 3+1; Tray: 3 | Shelf: 2+1; Tray: 2 | Shelf: 4+1; Tray: 4 | Shelf: 3+1; Tray: 3 |
| Sample Loading Capacity(Liquid) | 3L | 2L | 4L | 3L |
| Height Between Trays | 70mm | 100mm | 50mm | 70mm |
| Tray Temperature Difference | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Refrigerant | R404A+R23 | R404A+R23 | R404A+R23 | R404A+R23 |
| Condenser Cooling Mode | Air cooling | Air cooling | Air cooling | Air cooling |
| Defrost Mode | Electric defrosting | Electric defrosting | Natural defrosting(optional electric defrosting) | Electric defrosting |
| Stoppering Mode | / | Automatic | / | Automatic |
| Total Qty. of Vial / Φ22mm | / | 440 | / | 654 |
| Total Qty. of Vial / Φ16mm | / | 868 | / | 1200 |
| Total Qty. of Vial / Φ12mm | / | 1554 | / | 2187 |
| Vacuum Pump | 4L/S(14.4m³/h) | 4L/S(14.4m³/h) | 6L/S(22m³/h) | 6L/S(22m³/h) |
| Electric Defrosting Consumption | 800W | 800W | / | 1000W |
| Silicone Oil Heating Rods Consumption | 800W | 800W | 1000W | 1000W |
| Hydraulic Pressure Station Consumption | / | 500W | / | 1000W |
| Total Consumption | 3KW | 4KW | 4.5KW | 5.5KW |
| Power Supply | AC220V, 50Hz/60Hz(single phase) | AC220V, 50Hz/60Hz(single phase) | AC220V, 50Hz/60Hz(single phase) | AC220V, 50Hz/60Hz(single phase) |
| Main Body Weight | 300kg | 300kg | 400kg | 400kg |
| External Size(W*D*H) | 1033*781*1580mm | 1033*781*1580mm | 928*825*1366mm | 1272*853*1679mm |
| Packing Size(W*D*H)/Gross Weight / Main Body | 1150*900*1780mm/400kg | 1150*900*1905mm/400kg | 1050*945*1570mm/450kg | 1392*995*1880mm/651kg |
| Packing Size(W*D*H)/Gross Weight / Vacuum Pump | 950*420*500mm(37kg) | 950*420*500mm(37kg) | 790*340*460mm(57kg) | 790*300*470(52kg) |
Manufacturer catalogue checked 2026-09-28.
