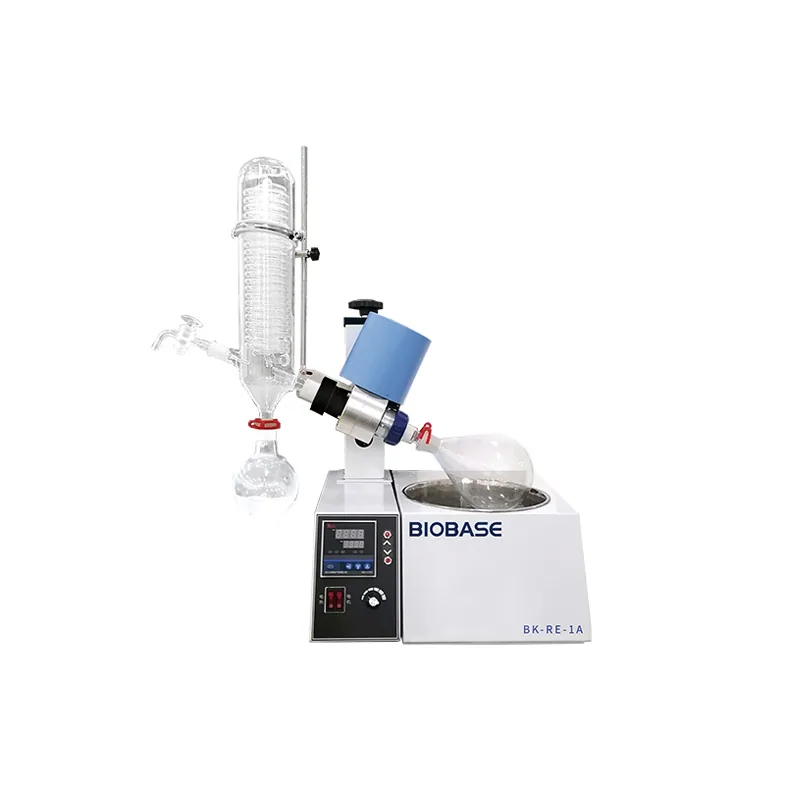

BIOBASE Rotary Evaporator BK-RE-1A
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Rotary Evaporator BK-RE-1A is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: BK-RE-1A. Published details include Temp. Range: RT~99℃. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-RE-1A |
|---|---|
| Rotary Bottle | 1L 24#(standard size) |
| Collecting Bottle | 0.5L 24#(standard size) |
| Glass Material | GG-17 |
| Shelf Material | Spray anti-corrosion steel |
| Heating Unit Size | 250*388*169mm |
| Chamber Size | φ220*140mm |
| Heating Power | 1KW |
| Temp. Range | RT~99℃ |
| Temp. Accuracy | ±1℃ |
| Temp. Sensor | PT100 |
| Vacuum | 0.096Mpa |
| Rotary Motor | 30W |
| Rotating Speed | 0~120rpm |
| Lift | Motor |
| Lifting Power | 15W |
| Lifting Stroke | 150mm |
| Speed Control | Stepless speed controller |
| Sealing Method | Fluorine rubber skeleton oil seal |
| Condenser | φ85*450mm |
| Charging Valve | 19#(standard size) |
| Power Supply | 220V, 50/60Hz |
| External Size(W*D*H) | 640*340*(860~1010)mm |
| Package Size(W*D*H) | 740*550*580mm |
| Gross Weight | 38kg |
| Standard Accessory | 1L Rotary Bottle*1, 0.5L Collecting Bottle*1 |
| Optional Accessory | Vacuum pump, Recirculating chiller, Transparent cover |
Manufacturer catalogue checked 2026-09-28.
