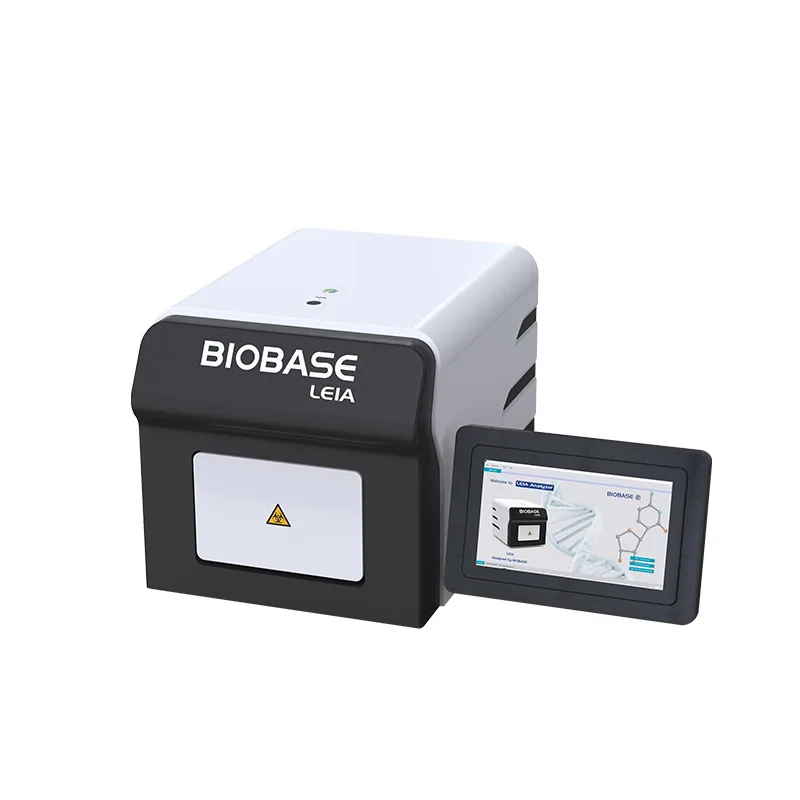

BIOBASE Real-time PCR System
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Real-time PCR System is listed in VVON's pcr & nucleic acid equipment range for Bangladesh. Published models: LEIA-X4, LEIA-X6. Compare sample throughput, reaction format, detection channels and workflow compatibility. For a quotation, send the application, sample throughput, plate or tube format and detection requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | LEIA-X4 | LEIA-X6 | LEIA-X6 | LEIA-X6 | LEIA-X6 |
|---|---|---|---|---|---|
| Sample Capacity | 96*0.1ml PCR plate, 12*8-strip tubes, 96*0.1ml single tube (Transparent Cover) | 96*0.1ml PCR plate, 12*8-strip tubes, 96*0.1ml single tube (Transparent Cover) | 96*0.1ml PCR plate, 12*8-strip tubes, 96*0.1ml single tube (Transparent Cover) | 96*0.1ml PCR plate, 12*8-strip tubes, 96*0.1ml single tube (Transparent Cover) | 96*0.1ml PCR plate, 12*8-strip tubes, 96*0.1ml single tube (Transparent Cover) |
| Reaction System | 5~50μl | 5~50μl | 5~50μl | 5~50μl | 5~50μl |
| Dynamics Range | 1~10¹⁰ copies | 1~10¹⁰ copies | 1~10¹⁰ copies | 1~10¹⁰ copies | 1~10¹⁰ copies |
| Channel | 4 | 4 | 4 | 4 | 6 |
| Emission Light | LED | LED | LED | LED | LED |
| Detector | PD | PD | PD | PD | PD |
| Detection Path | F1: FAM/SYBR GREEN; F2: VIC/JOE/HEX/TET; F3: ROX/TEXAS-RED; F4: Cy5 | F1: FAM/SYBR GREEN; F2: VIC/JOE/HEX/TET; F3:CY3; F4: ROX/TEXAS RED; F5: CY5; F6: CY5.5 | F1: FAM/SYBR GREEN; F2: VIC/JOE/HEX/TET; F3:CY3; F4: ROX/TEXAS RED; F5: CY5; F6: CY5.5 | F1: FAM/SYBR GREEN; F2: VIC/JOE/HEX/TET; F3:CY3; F4: ROX/TEXAS RED; F5: CY5; F6: CY5.5 | F1: FAM/SYBR GREEN; F2: VIC/JOE/HEX/TET; F3:CY3; F4: ROX/TEXAS RED; F5: CY5; F6: CY5.5 |
| Excitation Wavelength | 455~650nm | 455~650nm | 455~650nm | 455~685nm | 455~685nm |
| Detection Wavelength | 510~710nm | 510~710nm | 510~740nm | 510~740nm | 510~740nm |
| Fluorescence Detection Repeatability | CV≤3% | CV≤3% | CV≤3% | CV≤3% | CV≤3% |
| Fluorescence Detection Accuracy | CV≤5% | CV≤5% | CV≤5% | CV≤5% | CV≤5% |
| Fluorescence Detection Linearity | r≥0.995 | r≥0.995 | r≥0.995 | r≥0.995 | r≥0.995 |
| Module Temp. Range | 4~105℃ | 4~105℃ | 4~105℃ | 4~105℃ | 4~105℃ |
| Ramp Rate | 7.0℃/s(max) | 7.0℃/s(max) | 7.0℃/s(max) | 7.0℃/s(max) | 7.0℃/s(max) |
| Temp. Accuracy | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ |
| Temp. Uniformity | ≤±1℃ | ≤±1℃ | ≤±1℃ | ≤±1℃ | ≤±1℃ |
| Temp. Control Mode | Block and tube | Block and tube | Block and tube | Block and tube | Block and tube |
| Gradient Temp. Range | It can be set within the temperature range of 30°C to 105°C, with a temperature gradient span of 1°C to 36°C | It can be set within the temperature range of 30°C to 105°C, with a temperature gradient span of 1°C to 36°C | It can be set within the temperature range of 30°C to 105°C, with a temperature gradient span of 1°C to 36°C | It can be set within the temperature range of 30°C to 105°C, with a temperature gradient span of 1°C to 36°C | It can be set within the temperature range of 30°C to 105°C, with a temperature gradient span of 1°C to 36°C |
| Hot-Lid Temp. Range | 100℃, automatic hot-lid | 100℃, automatic hot-lid | 100℃, automatic hot-lid | 100℃, automatic hot-lid | 100℃, automatic hot-lid |
| Scanning Mode | Top scanning | Top scanning | Top scanning | Top scanning | Top scanning |
| Operation Mode | Continuous | Continuous | Continuous | Continuous | Continuous |
| Scanning Time | 8.5s | 8.5s | 8.5s | 8.5s | 8.5s |
| Special Function | Absolute quantitative automatic analysis, relative quantification, SNP Analysis, melting curve analysis, etc. | Absolute quantitative automatic analysis, relative quantification, SNP Analysis, melting curve analysis, etc. | Absolute quantitative automatic analysis, relative quantification, SNP Analysis, melting curve analysis, etc. | Absolute quantitative automatic analysis, relative quantification, SNP Analysis, melting curve analysis, etc. | Absolute quantitative automatic analysis, relative quantification, SNP Analysis, melting curve analysis, etc. |
| Operation System | Microsoft: Windows 10 | Microsoft: Windows 10 | Microsoft: Windows 10 | Microsoft: Windows 10 | Microsoft: Windows 10 |
| Port Method | USB Port | USB Port | USB Port | USB Port | USB Port |
| Power Supply | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz |
| Dimension(W*D*H) | 375*505*375mm | 375*505*375mm | 375*505*375mm | 375*505*375mm | 375*505*375mm |
| Net Weight | 28kg | 28kg | 28kg | 28kg | 28kg |
| Packing Size(W*D*H) | 645*565*605mm | 645*565*605mm | 645*565*605mm | 645*565*605mm | 645*565*605mm |
| Gross Weight | 49kg | 49kg | 49kg | 49kg | 49kg |
Manufacturer catalogue checked 2026-09-28.
