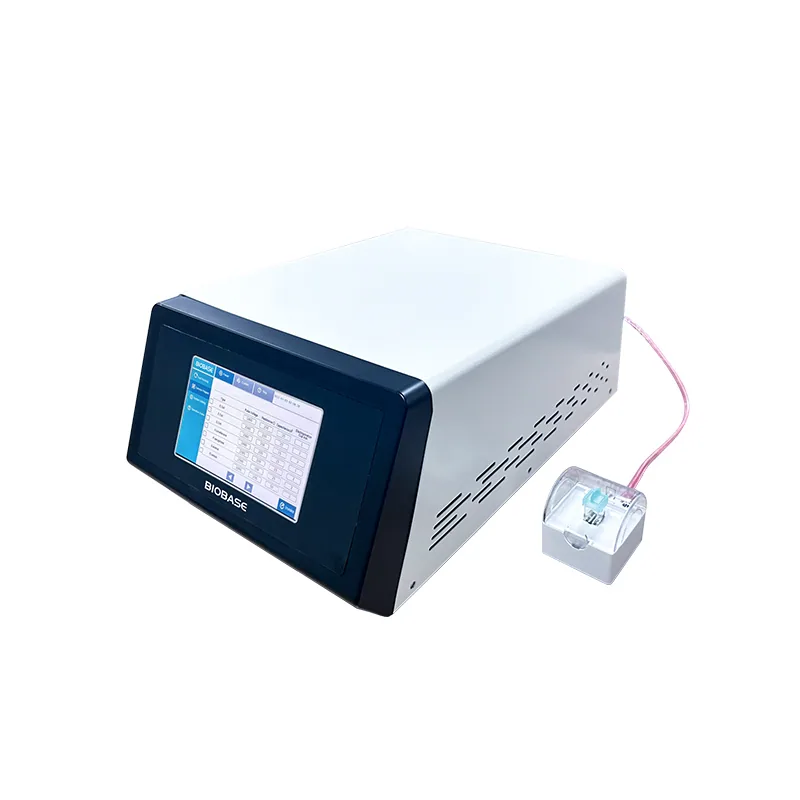

BIOBASE Gene Electroporator
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Gene Electroporator is listed in VVON's pcr & nucleic acid equipment range for Bangladesh. Published models: BK-GE2CS. Compare sample throughput, reaction format, detection channels and workflow compatibility. For a quotation, send the application, sample throughput, plate or tube format and detection requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-GE2CS |
|---|---|
| Pulse Type | Exponential decay |
| High Voltage Output | 401~3000V |
| Low Voltage Output | 50~400V |
| High Voltage Capacitance | 10μF, 25μF, 35μF, 50μF, 60μF |
| Low Voltage Capacitance | 50μF, 100μF, 125μF, 150μF to 1560μF in 25μF steps |
| Parallel Resistance | 50Ω, 100Ω, 150Ω up to 1650Ω in 50Ω steps |
| Operating System | Microcomputer control |
| Time Constant | With adjustable RC time constant |
| Power Supply | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) |
| Standard Accessory | Gene seat*1, cuvette*2, fuse*2 |
| External Size(W*D*H) | 400*300*200mm |
| Package Size(W*D*H) | 580*360*250mm |
| Net Weight | 5.5kg |
| Gross Weight | 7kg |
| Type | Pulse Voltage(V) | Resistance(Ω) | Capacitance(μF) | Electroporation Cup(mm) |
|---|---|---|---|---|
| E.Coli | 1800 | 200 | 25 | 1 |
| E.Coli | 2500 | 200 | 25 | 2 |
| E.Coli | 3000 | 200 | 25 | 2 |
| A.Tumefaciens | 2400 | 200 | 25 | 1 |
| P.Asruginosa | 2500 | 200 | 25 | 2 |
| S.Aureus | 2900 | 100 | 25 | 2 |
| B.Cereus | 1000 | 200 | 25 | 2 |
| S.pyogenes | 2100 | 200 | 50 | 2 |
| L.Plantarum | 2000 | 400 | 25 | 2 |
| S.Cerevisiae | 1500 | 200 | 25 | 2 |
| S.Pombe | 2300 | 200 | 25 | 2 |
| C.Albicans | 1500 | 200 | 25 | 2 |
| P.Pastoris | 2000 | 200 | 25 | 2 |
Manufacturer catalogue checked 2026-09-28.
