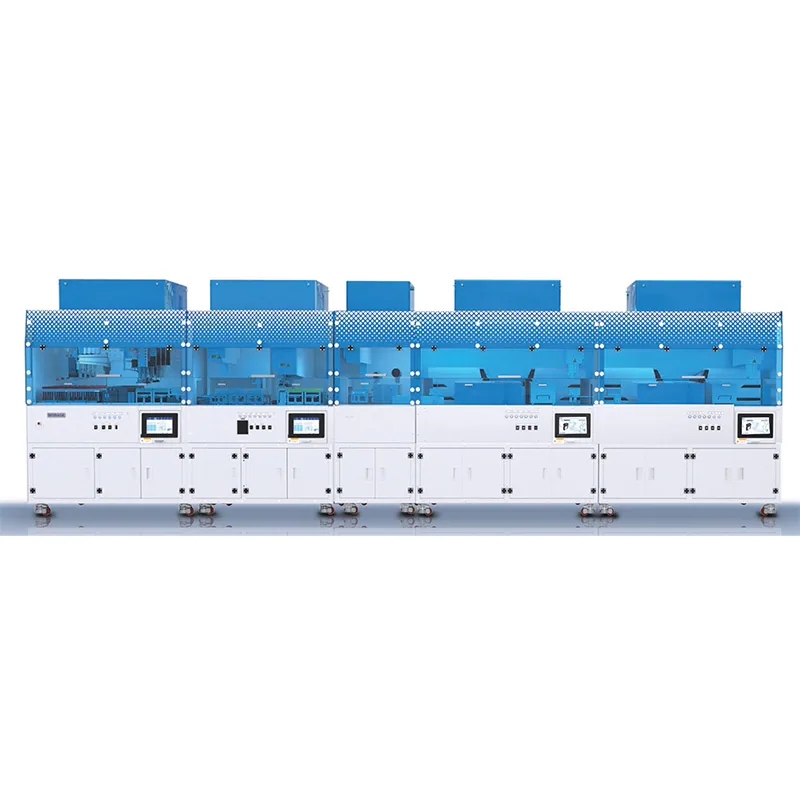

BIOBASE High-throughput Nucleic Acid Detection Workstation
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE High-throughput Nucleic Acid Detection Workstation is listed in VVON's pcr & nucleic acid equipment range for Bangladesh. Published details include Module Temperature Range: 4-100℃; Sample Volume: 10-50ul. Compare sample throughput, reaction format, detection channels and workflow compatibility. For a quotation, send the application, sample throughput, plate or tube format and detection requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Throughput | 1-96 |
|---|---|
| Speed | Daily inspection volume ≥ 6000 tubes |
| Adding Sample | 2-1000ul |
| Temperature Accuracy | ±0.3℃ |
| Temperature Uniformity | ±0.3℃ |
| Module Temperature Range | 4-100℃ |
| Sample Volume | 10-50ul |
| Fluorescence Channel | 4 channels, FM , VIC , ROX , Cy5 |
| Machine Function | Putting the original tube on the machine + sample splitting + nucleic acid extraction + R C R system construction + amplification detection |
| Sample Loading Method | Flow loading, single sample volume 96 |
| Consumables Added | Flowing consumables, running without stopping |
| Liquid Detection Scheme | Pneumatic liquid level detection scheme, intelligent detection of blocked needle |
| Sample Needle Specifications | 50μl, 200μl, 1000μl optional, disposable black conductive needle with filter |
| Sampling Tube Adaptation | Suitable for conventional 5mL, 10mL, 20/30mL virus sampling tubes |
| Protective Function | Power-on self-test, high temperature alarm, over-temperature protection, needle removal and needle removal protection |
| Disinfection &Decontamination Methods | UV lamp (cup compartment + extraction compartment + extraction area + sealing compartment + testing compartment), multi-directional disinfection |
| Touch Screen | Four 10.1-inch capacitive touch screens |
| External Size | 6300*750*1900mm |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
