Brand: BIOBASE | Category: Scientific & Laboratory Equipment

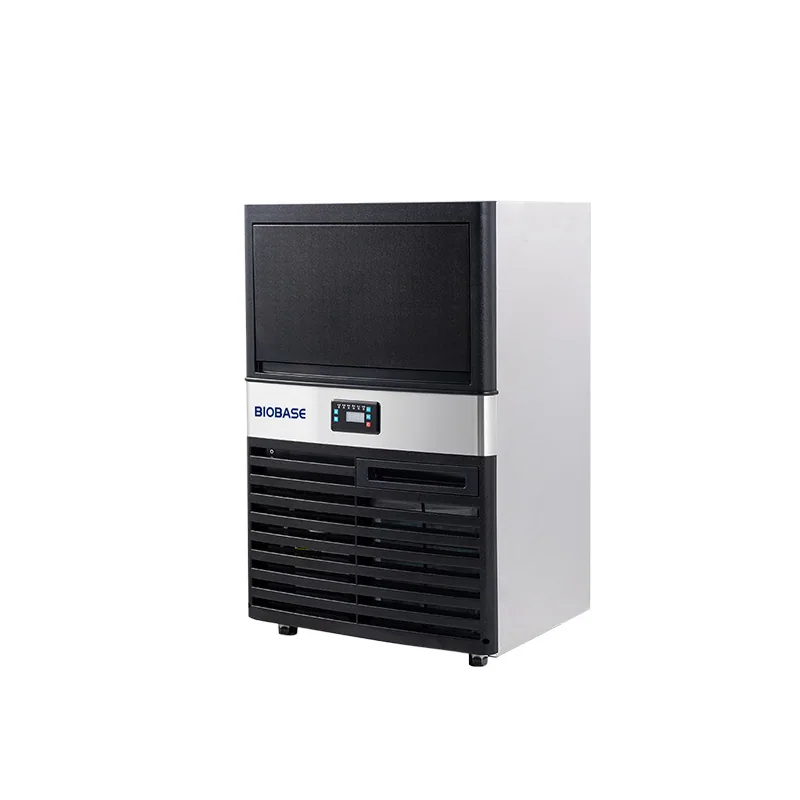

BIOBASE Cube Ice Machine is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: CIM-65, CIM-80, CIM-120, CIM-180. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | CIM-65 | CIM-80 | CIM-120 | CIM-120 | CIM-180 | CIM-65 | CIM-65 | CIM-65 |
|---|---|---|---|---|---|---|---|---|
| Ice Making Capacity(kg/24h) | 30 | 40 | 60 | 60 | 80 | 100 | 100 | 120 |
| Max. Ice Storage Capacity | 15kg | 15kg | 15kg | 15kg | 45kg | 45kg | 45kg | 45kg |
| Ice Shape | Cube ice: 22*22*22mm, 10g | Cube ice: 22*22*22mm, 10g | Cube ice: 22*22*22mm, 10g | Cube ice: 22*22*22mm, 10g | Cube ice: 22*22*22mm, 10g | Cube ice: 22*22*22mm, 10g | Cube ice: 22*22*22mm, 10g | Cube ice: 22*22*22mm, 10g |
| Ice Grid | 4*9 | 4*10 | 4*10 | 5*12 | 5*16 | 5*16 | 5*18 | 6*18 |
| Input Current | 280W | 300W | 360W | 360W | 580W | 600W | 600W | 650W |
| Way of Condensation | Air-cooling | Air-cooling | Air-cooling | Air-cooling | Air-cooling | Air-cooling | Air-cooling | Air-cooling |
| Ambient Temperature | 1~40℃ | 1~40℃ | 1~40℃ | 1~40℃ | 1~40℃ | 1~40℃ | 1~40℃ | 1~40℃ |
| Water Temperature | 5~35℃ | 5~35℃ | 5~35℃ | 5~35℃ | 5~35℃ | 5~35℃ | 5~35℃ | 5~35℃ |
| Compressor | Wanbao | Wanbao | Wanbao | Wanbao | Wanbao | Wanbao | Wanbao | Wanbao |
| Refrigerant | R290, 60g | R290, 65g | R290, 80g | R290, 80g | R290, 96g | R290, 100g | R290, 100g | R290, 106g |
| Standard Accessory | Water inlet pipe*1, drainage pipe*1, ice spoon*1, filter*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1, filter*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1, filter*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1, filter*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1, filter*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1, filter*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1, filter*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1, filter*1 |
| Optional Accessory | UV lamp | UV lamp | UV lamp | UV lamp | UV lamp | UV lamp | UV lamp | UV lamp |
| Power Supply | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) |
| External Size(W*D*H) | 500*450*800mm | 500*450*800mm | 500*450*800mm | 500*450*800mm | 660*680*930mm | 660*680*930mm | 660*680*930mm | 660*680*930mm |
| Package Size(W*D*H) | 580*510*850mm | 580*510*850mm | 580*510*850mm | 580*510*850mm | 740*750*920mm | 740*750*920mm | 740*750*920mm | 740*750*920mm |
| Net Weight | 34kg | 34kg | 35kg | 35kg | 54kg | 55kg | 55kg | 56kg |
| Gross Weight | 38kg | 38kg | 39kg | 39kg | 59kg | 60kg | 60kg | 61kg |
Manufacturer catalogue checked 2026-09-28.
